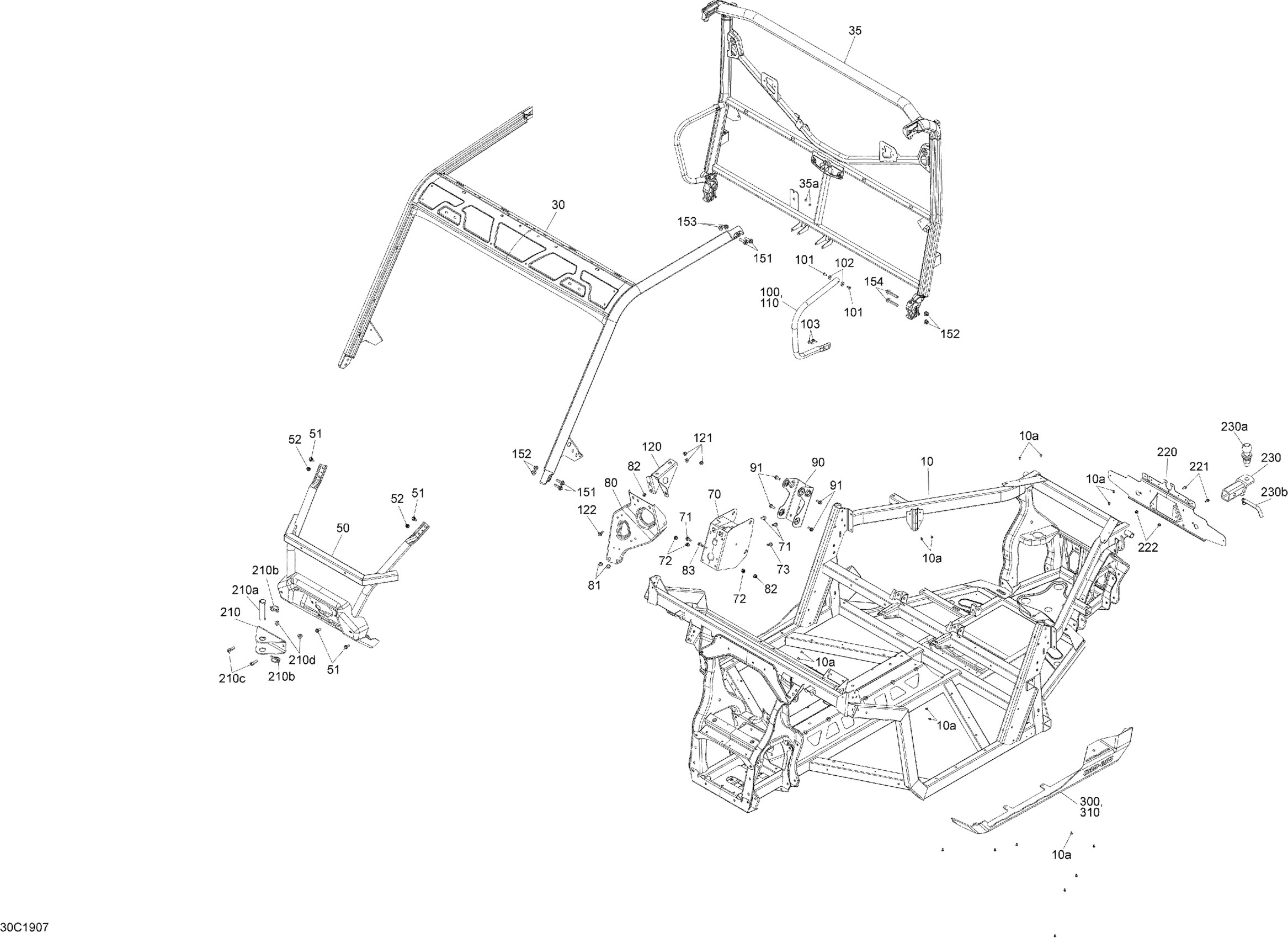

Can-Am 001 - Traxter HD5 - T1B Series, 2019 09- Frame - HD5 Diagram

Frame Kit | Inclus 10 to 10a

715005679

$2,589.99

Pop Rivet 3/16"

390402200

$0.35

Deep Black, Front Cage Service Kit

715008354

$649.99

Black, Rear Cage Kit

715003569

$649.99

Pop Rivet 3/16"

390402200

$0.35

Deep Black, Front Bumper

705207588

$499.99

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.69

Hex. Flange Elastic Nut M8

233281414

$1.47

Plate

705206316

$55.99

Hex. Flange Screw M8 X 20

207682044

$1.15

Hex. Flange Elastic Nut M8

233281414

$1.47

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.69

DPS Support

705206185

$93.99

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.69

Hex. Flange Elastic Nut M8

233281414

$1.47

Hex. Flange Screw M8 X 20

207682044

$1.15

Steering Column Support | Includes 90 to 90d

705209190

$37.99

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.69

Deep Black, LH Protector Tube

705204594

$44.49

Torx Truss M6X14

250000789

$5.39

Offset Washer

705202223

$4.14

Hex. Flange Screw M6 X 20, Scotch Grip

207562034

$2.11

Deep Black, RH Protector Tube

705204592

$44.49

Shifting Module Support

705205171

$30.99

Hex. Flange Elastic Nut M8

233281414

$1.47

Hex. Flange Screw M8 X 20

207682044

$1.15

Insert Half Hex Body M6 x 1.0

250100199

$3.19

Front Coupling Device Ass'y | STD Package

705206240

$114.99

Pin

605456511

Unavailable

Pin

605456518

Unavailable

Socket Screw M10 x 30 | XT

205003044

$3.17

Hex. Flange Elastic Nut M10

233201414

$1.58

Licence Plate Support

705014656

$114.99

Hex. Flange Screw M6 X 16

207661644

$0.74

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

Drawbar Ass'y | Includes 230 to 230c

705208230

$166.49

Hitch Pin

705204490

$52.99

Hitch Approval Decal

704906897

$19.99

Hex. Flange Screw M10 X 35

250000855

$1.89

Hex. Flange Elastic Nut M10

233201436

$2.11

Flange Elastic Nut M10

233201466

$3.17

Hex. Flange Screw M10 X 6

207606046

$4.12
