Description

Price

10

Steering Column

709402491

$194.99

10

Steering Shaft | Package DPS

709401936

$199.99

15

Lower Steering Column

709402996

$199.99

20

Steering Wheel

709401513

$519.49

31

O-Ring

293300144

$3.82

35

Steering Bushing

709402725

$3.28

38

Circlip

293370110

$2.61

40

Steering Support

709401602

$83.99

45

Bushing

709401603

$8.85

60

Bushing

709401604

$5.89

65

Hex. Flange Screw M8 X 30 | DS 650 X

207683044

$1.69

90

Hex. Flange Screw M8 X 35

250001021

$4.44

100

Hex. Elastic Flange Nut M8

233281416

$1.48

105

Hex. Flange Elastic Nut M8

233281414

$1.47

120a

Adjustment Cylinder

709402506

$72.99

120b

Boot Tube Side

709401232

$18.99

130

Socket Head Screw M8 X 16

250000669

$3.17

140

Elastic Stop Nut M6

232561414

$0.55

150

Steering Cap

709401514

$19.49

160

Elastic Lock Nut M16

232511414

$2.00

190

Cotter Pin

211400017

$0.33

215

Screw Hex Cap M10 X 75

250000814

$4.76

220

Hex. Flange Elastic Nut M10

233201436

$2.11

245

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.69

260

Steering Rack And Pinion | Includes 260 to 260d

709402317

$402.49

260a

Boot Kit, Pinion Side

715900235

$54.99

260b

Boot Kit, Tube Side

715900236

$54.99

260c

Steering Rod Nut

715900238

$2.30

275

Hex. Screw M10 X 100, Scotch Grip

230500046

$7.41

285

Hex. Flange Nut M10

233101414

$4.97

290

Hex. Flange Screw M10 X 25

207502546

$2.11

300

Power Steering Ass'y

709402727

$2,119.99

310

Steering Box Cover

709402012

$13.99

320

Steering Box Cover

709402013

$13.99

330

Tuflok Plastic Rivet

293150230

$1.47

340

Torx Screw K50 X 16

250000720

$1.69

400

Flasher Arm Support

709401962

$30.49

420

Torx Truss Screw M6 X 16

250000721

$1.69

430

Torx Screw M6 X 16

250000755

$0.87

440

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

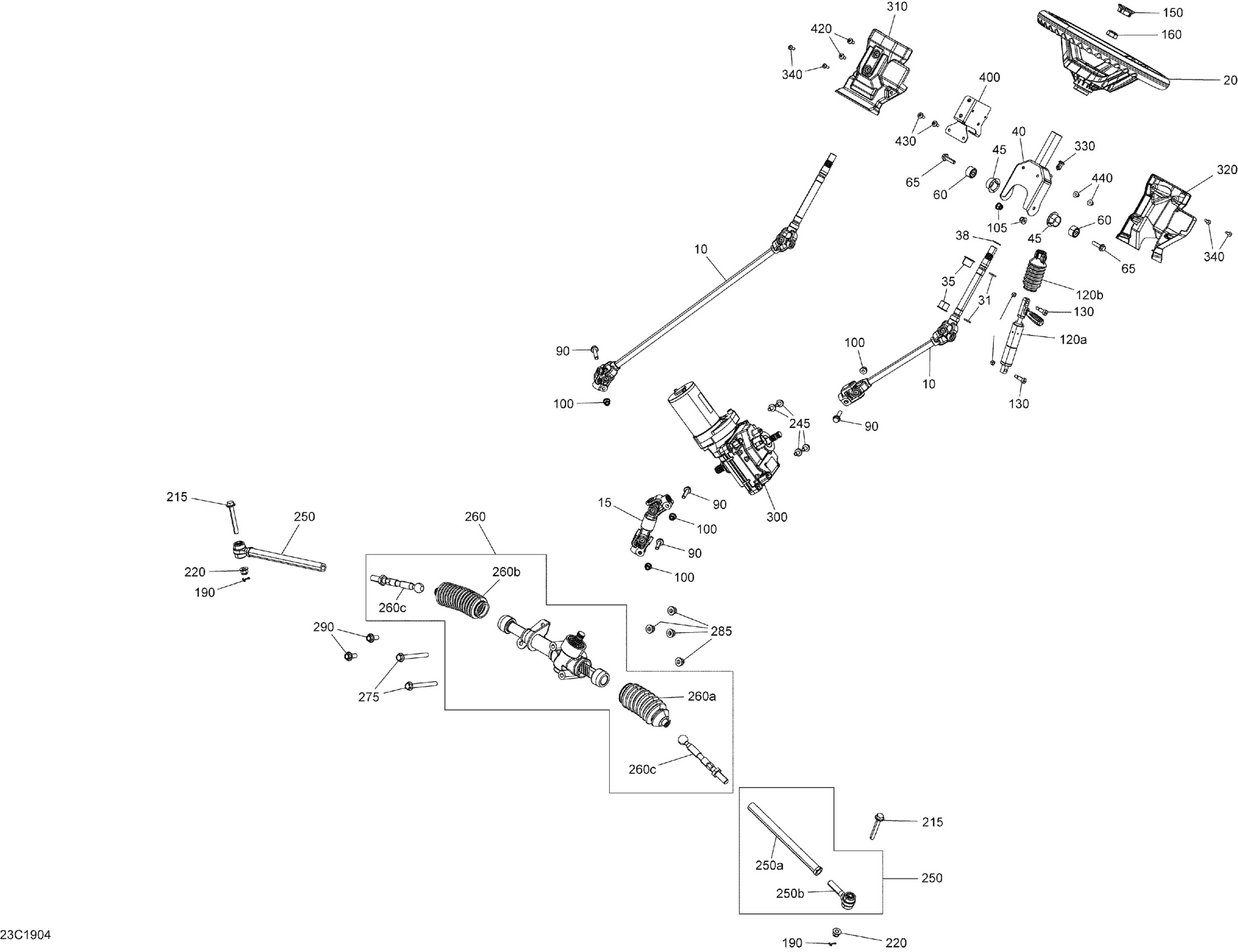

Can-Am 001 - Traxter HD5 - T1B Series, 2019 07- Steering - T1B Diagram

Steering Column

Steering Shaft | Package DPS

Lower Steering Column

Steering Wheel

O-Ring

Steering Bushing

Circlip

Steering Support

Bushing

Bushing

Hex. Flange Screw M8 X 30 | DS 650 X

Hex. Flange Screw M8 X 35

Hex. Elastic Flange Nut M8

Hex. Flange Elastic Nut M8

Adjustment Cylinder

Boot Tube Side

Socket Head Screw M8 X 16

Elastic Stop Nut M6

Steering Cap

Elastic Lock Nut M16

Cotter Pin

Screw Hex Cap M10 X 75

Hex. Flange Elastic Nut M10

Hex. Flange Screw M8 X 20, Scotch Grip

Steering Rack And Pinion | Includes 260 to 260d

Boot Kit, Pinion Side

Boot Kit, Tube Side

Steering Rod Nut

Hex. Screw M10 X 100, Scotch Grip

Hex. Flange Nut M10

Hex. Flange Screw M10 X 25

Power Steering Ass'y

Steering Box Cover

Steering Box Cover

Tuflok Plastic Rivet

Torx Screw K50 X 16

Flasher Arm Support

Torx Truss Screw M6 X 16

Torx Screw M6 X 16

Hex. Flange Elastic Nut M6 x 1.0
