Description

Price

1

Gearbox | Include 9 to 14, 16 to 28

420684226

$679.99

1

Bevel Gear Ass’y

420635558

$659.99

2

Washer Thrust Set

420281300

$95.49

3

Ball Bearing 6405

420632280

$98.49

4

O-Ring

420430373

$3.17

5

Oil Seal

420650683

$19.49

6

Ball Bearing

420932822

$30.49

7

Thrust Washer Set, MAG Side

420281306

$61.49

8

Axial Needle Bearing

420632300

$18.49

9

Needle Bearing

420632070

$25.99

10

Retaining Ring

420245850

$5.31

11

Sliding Gear 44T

420635584

$148.49

12

Gear Pinion 38T

420635573

$104.99

13

Thrust Washer

420427010

$3.98

14

Gear Pinion 34T

420635184

$88.99

15

Thrust Washer Set, CVT Side

420281302

$86.99

16

Countershaft 11T

420220972

$137.99

17

Thrust Washer

420227862

$3.98

18

Needle Bearing

420632070

$25.99

19

Gear Pinion 23T

420635603

$79.99

20

Circlip

420445302

$4.12

21

Gear Pinion 16T

420635215

$74.99

22

O-Ring

420630040

$4.44

23

Distance Ring

420247125

$20.99

24

Needle Pin

420229600

$37.99

25

Intermediate Gear 25T

420635674

$87.99

26

Needle Cage

420432034

$35.99

27

Thrust Washer

420944192

$2.61

28

Distance Ring

420247122

$8.09

29

Pin

420229540

$20.99

30

Shift Fork

420257332

$124.99

31

Shift Fork

420257342

$104.99

32

Shift Drum

420257329

$179.99

33

Isolating Washer

420627782

$5.50

34

Index Spring

420238290

$11.12

35

Step Ring

420227717

$12.12

36

Index Lever Kit

703500254

$52.99

37

Torx Screw M6 X 16

420241529

$2.11

38

Shift Shaft Ass'y

420620136

$98.99

39

Parking Lock Lever Ass'Y

420257319

$58.99

40

Torx Flange Screw M8 X 25

420440372

$4.12

41

Bearing Cover

420610243

$58.99

42

Output Sleeve

420947772

$121.99

43

Washer

420627761

$9.69

44

Collar Screw M12X20

420840856

$5.79

45>45r

Shifting Unit

420686742

$1,029.99

45a

Machined Housing

705402360

$164.99

45b>45b3

Actuator Ass'y

705402090

$429.99

45b1

Circlip | 4X4

293370042

$3.17

45b2

Fork | 4X4

705400274

$18.99

45b3

O-Ring

293300117

$4.44

45c

Hex. Flange Screw M8 X 20, Scotch Grip | 4X4

250000137

$3.28

45d

Pressure Screw M8 X 8 | 4X4

206580890

$1.69

45e

Dowell Pin | 4X4

250400025

$7.73

45f

Ball Bearing | 4X4

705400249

$25.99

45g

Slider | 4X4

705402139

$46.99

45h

Circlip | 4X4

293370029

$5.19

45j

Circlip | 4X4

293370030

$2.89

45k

Not Available As Spare Part - Friction Washer

Unavailable

45m

Coupling Sleeve | 4X4

705400389

$31.99

45n

Oil Seal

293250348

$20.49

45p

Shifter Lever Plate | 4X4

705401553

$20.99

45q

Not Available As Spare Part - Friction Washer

Unavailable

45r

Not Available As Spare Part - Friction Washer

Unavailable

46

O-Ring

420430390

$1.03

47

Allen Screw M8 x 20

420240072

$1.04

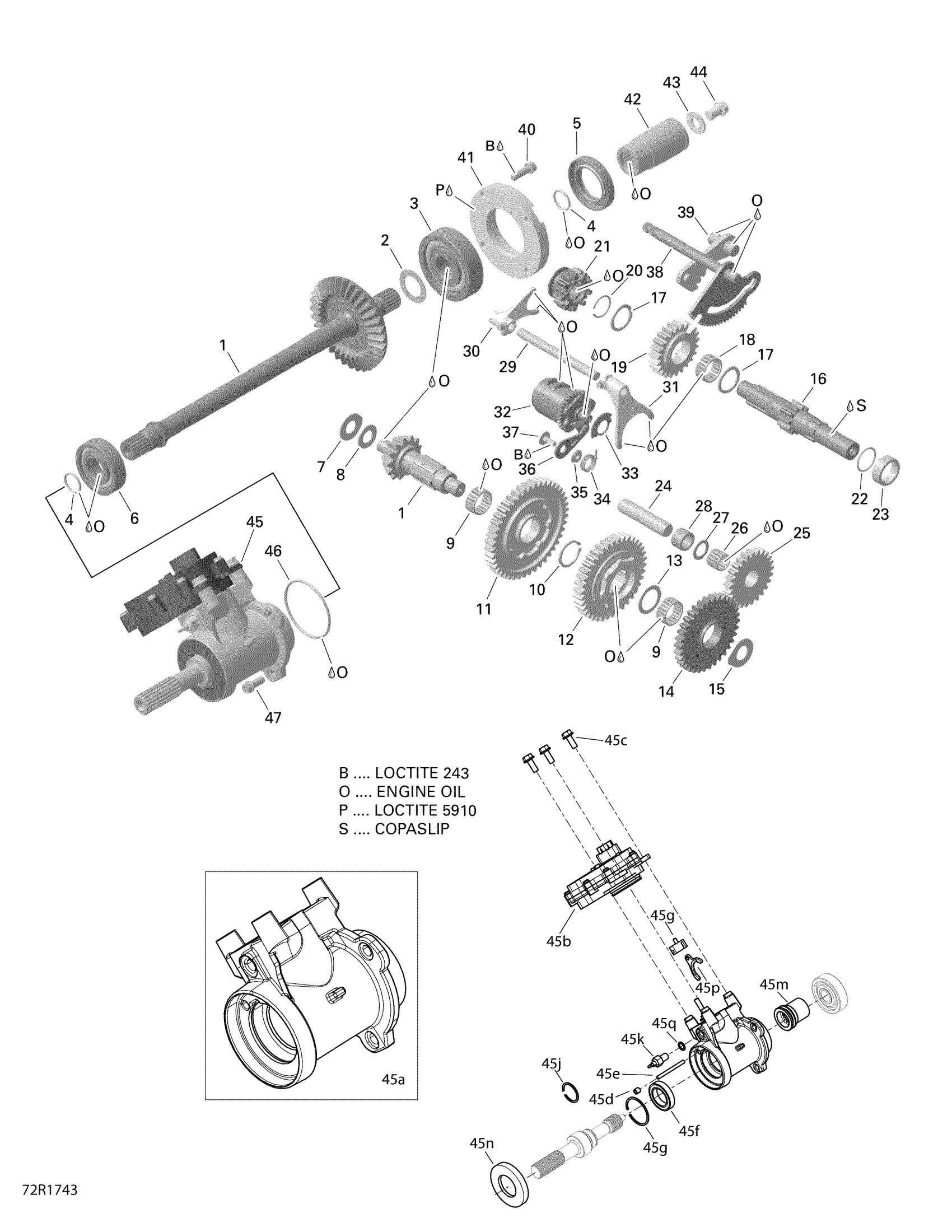

Can-Am 001 - Traxter HD5 - T1B Series, 2019 01- Gear Box And Components Diagram

Gearbox | Include 9 to 14, 16 to 28

Bevel Gear Ass’y

Washer Thrust Set

Ball Bearing 6405

O-Ring

Oil Seal

Ball Bearing

Thrust Washer Set, MAG Side

Axial Needle Bearing

Needle Bearing

Retaining Ring

Sliding Gear 44T

Gear Pinion 38T

Thrust Washer

Gear Pinion 34T

Thrust Washer Set, CVT Side

Countershaft 11T

Thrust Washer

Needle Bearing

Gear Pinion 23T

Circlip

Gear Pinion 16T

O-Ring

Distance Ring

Needle Pin

Intermediate Gear 25T

Needle Cage

Thrust Washer

Distance Ring

Pin

Shift Fork

Shift Fork

Shift Drum

Isolating Washer

Index Spring

Step Ring

Index Lever Kit

Torx Screw M6 X 16

Shift Shaft Ass'y

Parking Lock Lever Ass'Y

Torx Flange Screw M8 X 25

Bearing Cover

Output Sleeve

Washer

Collar Screw M12X20

Shifting Unit

Machined Housing

Actuator Ass'y

Circlip | 4X4

Fork | 4X4

O-Ring

Hex. Flange Screw M8 X 20, Scotch Grip | 4X4

Pressure Screw M8 X 8 | 4X4

Dowell Pin | 4X4

Ball Bearing | 4X4

Slider | 4X4

Circlip | 4X4

Circlip | 4X4

Not Available As Spare Part - Friction Washer

Coupling Sleeve | 4X4

Oil Seal

Shifter Lever Plate | 4X4

Not Available As Spare Part - Friction Washer

Not Available As Spare Part - Friction Washer

O-Ring

Allen Screw M8 x 20
