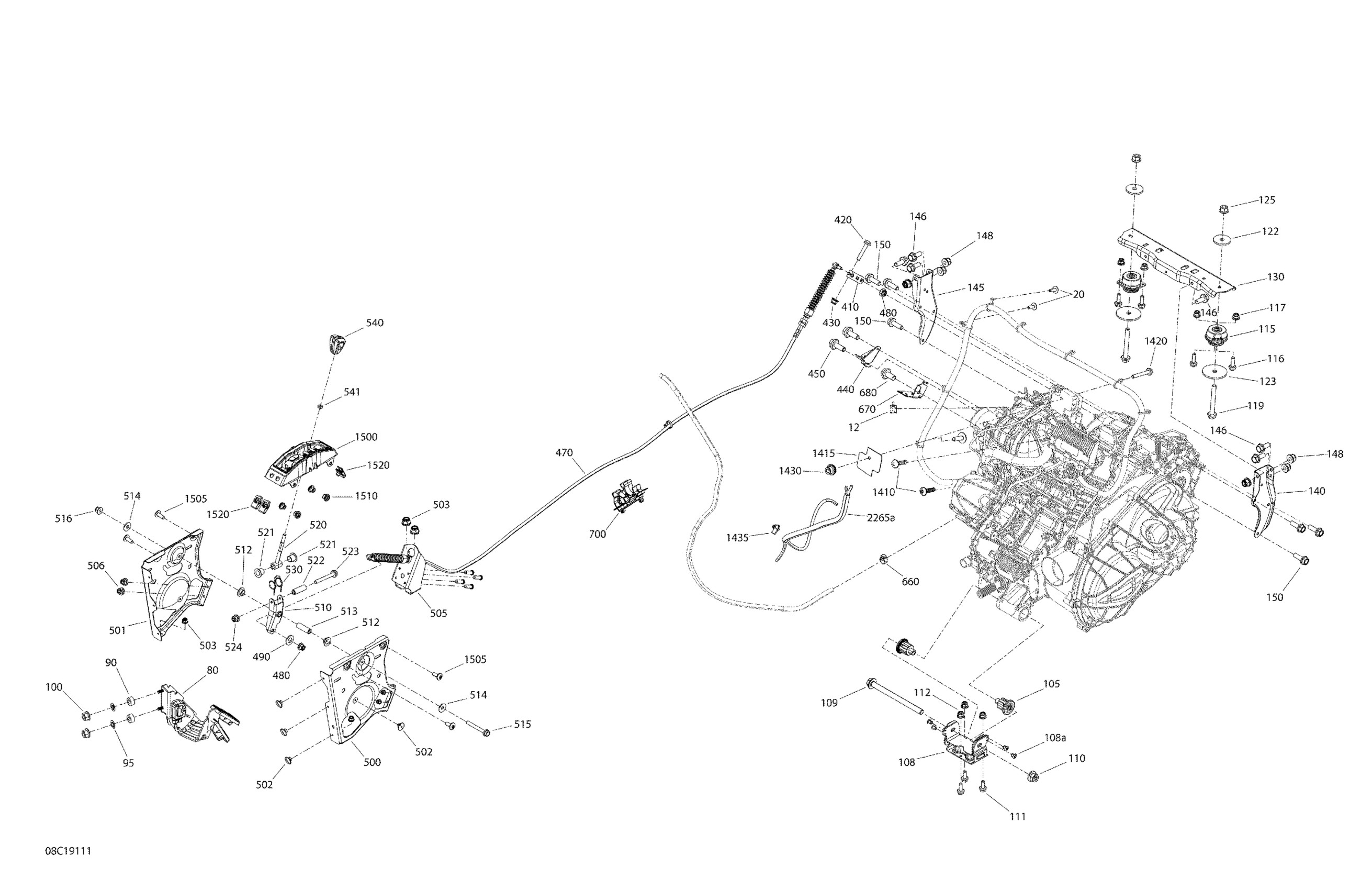

Can-Am 003 - Maverick Sport 1000R - DPS - International - Non European Communities, 2019 01- Engine - 1000R EFI - Packages DPS - Without CVT Diagram

Description

Price

Norma Spring Clamp

293650214

$15.89

Screw PT Type K-50 X 16

250000959

$2.11

Accelerator Pedal

707001166

$274.99

Bushing

707000848

$1.35

Push Nut

250100031

$7.29

100

Hex. Flange Nut M8

233081416

$1.15

105

Vibration Damper

707001169

$42.99

108

Vibration Damper | Includes 108 to 108d

707003061

$144.99

108a

Pop Rivet 3/16"

390402200

$0.35

109

Hex. Flange Screw M10 X 135

230603546

$7.41

110

Hex. Flange Elastic Nut M10

233201436

$2.11

111

Hex. Flange Screw M6 X 16

207661644

$0.74

112

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

115

Rubber Mount

707002590

$58.49

116

Hex. Flange Screw M6 X 20

207662044

$2.00

117

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

119

Hex. Flange Screw, M8 X 65

207686544

$13.16

122

Flat Washer M8

250200158

$2.11

123

Flat Washer M8

250200180

$2.29

125

Hex. Flange Nut M8

233081416

$1.15

130

Rear Link Bracket

707002290

$30.99

140

Engine Bracket

707002449

$15.49

145

RH Rear Engine Support

707003340

$18.99

146

Hex. Flange Screw M8 X 20

207682046

$1.90

148

Hex. Elastic Flange Nut M8

233281416

$1.48

150

Hex. Flange Screw M8 X 25, Scotch Grip

207582544

$1.69

410

Lever

707000911

$20.49

420

Hex. Flange Screw M6 X 35

207663544

$0.90

430

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

440

Cable Support

707001614

$16.87

450

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.90

470

Shifting Cable

707002000

$68.99

480

Hex. Elastic Stop Nut M8

232581414

$0.56

490

Flat Washer 10 mm

234001410

$1.26

500

LH Bracket

707002099

$24.99

501

RH Bracket

707002100

$24.99

502

Pop Rivet 3/16"

293150103

$0.55

503

Hex. Flange Elastic Nut M8

233281414

$1.47

505

Cable Support

707002098

$16.87

506

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

510

Lower Lever Arm

707002093

$18.49

512

Flanged Bushing

707000847

$1.25

513

Bushing

707001376

$5.24

514

Flat Washer 6 mm

234062410

$0.77

515

Hex. Flange Screw M6 X 50

207665044

$4.12

516

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

520

Upper Lever Arm

707000711

$39.99

521

Flanged Bushing

707000869

$2.89

522

Bushing

707001376

$5.24

523

Hex. Flange Screw M6 X 50

207665044

$4.12

524

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

530

Lever Arm Spring

707000750

$2.68

540

Lever Trim

707003211

$8.49

541

Hex. Jam Nut M8

232180491

$7.51

660

Oetiker Clamp

293650042

$3.09

670

Cable Support

710004561

$13.12

680

Hex Flange Screw M10 X 20

207502044

$4.44

700

Hose Support

707002116

$13.49

1410

Torx Screw Truss Head K50X20 T20

250000760

$2.11

1415

Insulator Pad

710000073

$11.12

1420

Hex. Flange Screw M6 X 1.0 X 45

250000213

$2.11

1430

Insert Half Hex Body M6 x 1.0

250100199

$3.19

1435

Stud Tie Wrap

710006067

$2.61

1500

Lever Indicator

707900603

$26.99

1505

Torx Head Screw M6 X 16

250000717

$2.11

1510

Insert Half Hex Body M6 x 1.0

250100199

$3.19

1520

Panel Nut M6 X 1.0

250100198

$2.11

2265a

Tubing 16 Mm 1000Mm Long

219704408

$7.49
