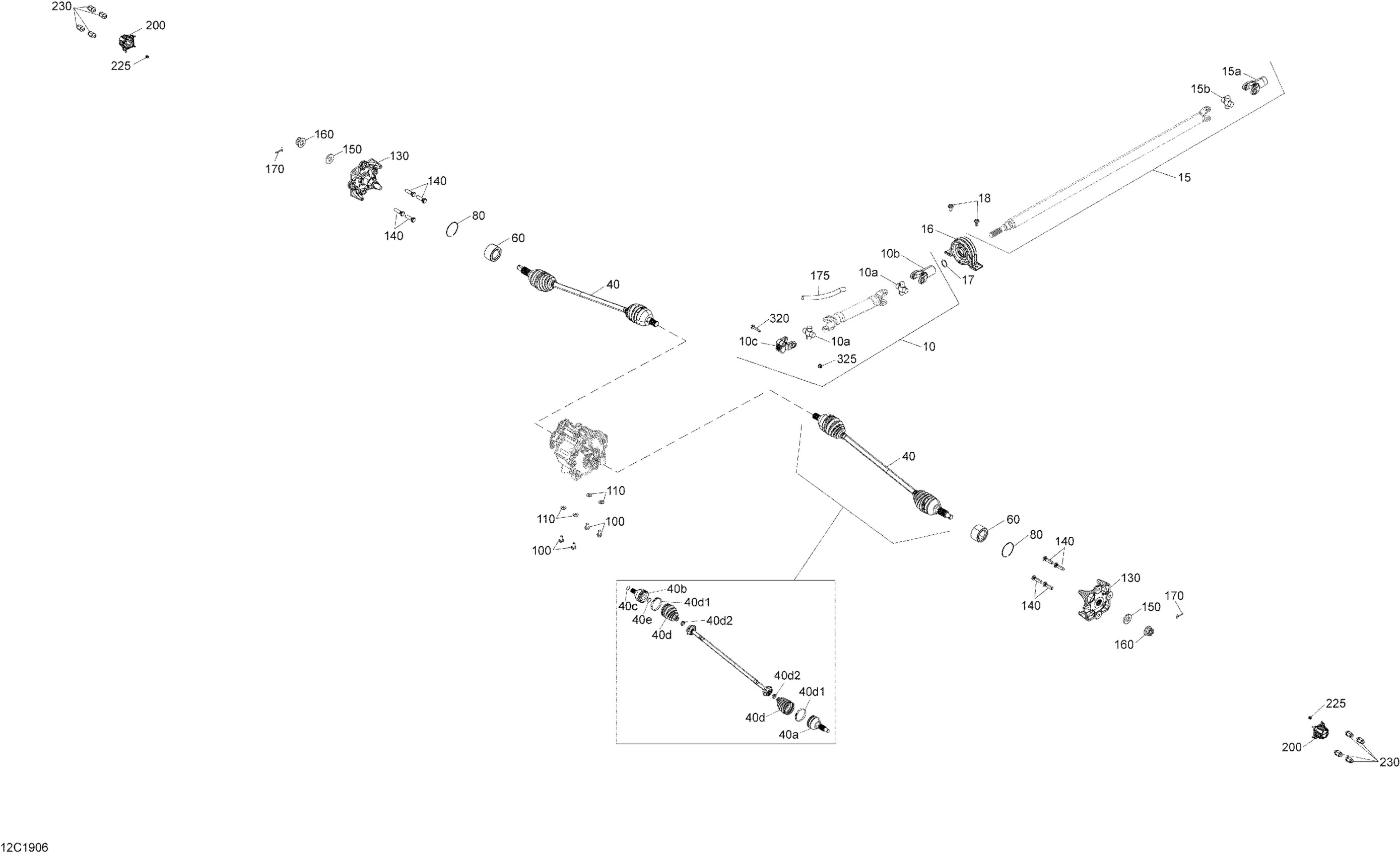

Can-Am 003 - Maverick Turbo R - International, 2019 07- Front Drive - Main Parts - Except Package STD Diagram

Description

Price

Drive Axle Ass'y | Includes 10 to 10c

705402187

$259.49

10a

J-Joint Cross Kit

715900402

$89.99

10b

Yoke

715900401

$35.99

10c

Fixed Yoke Joint

715900524

$59.49

Drive Shaft Ass'y | Includes 15 to 15b

705402026

$312.49

15a

Yoke

715900401

$35.99

15b

J-Joint Cross Kit

715900402

$89.99

Ball Bearing Ass'y

705403522

$47.49

Snap Ring

293370098

$3.17

Hex. Flange Screw M10 X 20

207502046

$2.11

Performance CV Axle | Includes 40 to 40f

705401634

$275.49

Performance CV Axle | Includes 40 to 40f

705402048

$275.49

40a

CV Joint

715900574

$259.49

40b

Plunging Joint

715900575

$259.49

40c

Circlip

715900569

$5.50

40d

Boot Kit, Wheel Side

705401354

$42.49

40d1

Oetiker Clamp, Large

715900260

$10.33

40d2

Oetiker Clamp, Small

715900261

$5.29

40e

O-ring

715900580

$2.51

Bearing_Ball

293350141

$70.99

Circlip

293370102

$3.99

100

Hex. Flange Screw M10 X 20

207502046

$2.11

110

Conical Spring Washer 10 mm

234201474

$1.69

130

Wheel Hub

705502122

$116.49

140

Wheel Stud M12X1.5

250300625

$3.91

150

Conical Spring Washer M20

250200170

$14.74

160

Castle Nut M20

250100193

$8.05

170

Cotter Pin

250400084

$2.29

175

Polyurethane Hose 4000MM Long | Includes 250 to 250a

219704389

$78.49

185

Open Clamp

518321570

$7.69

186

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

200

Wheel Cap

705401841

$6.09

225

Valve Cap

293000110

$1.59

230

Black, Wheel Nut M12 X 1.50

250100196

$2.68

320

Hex. Flange Screw M8 X 42

250001050

$1.16

325

Hex. Elastic Flange Nut M8

233281416

$1.48
