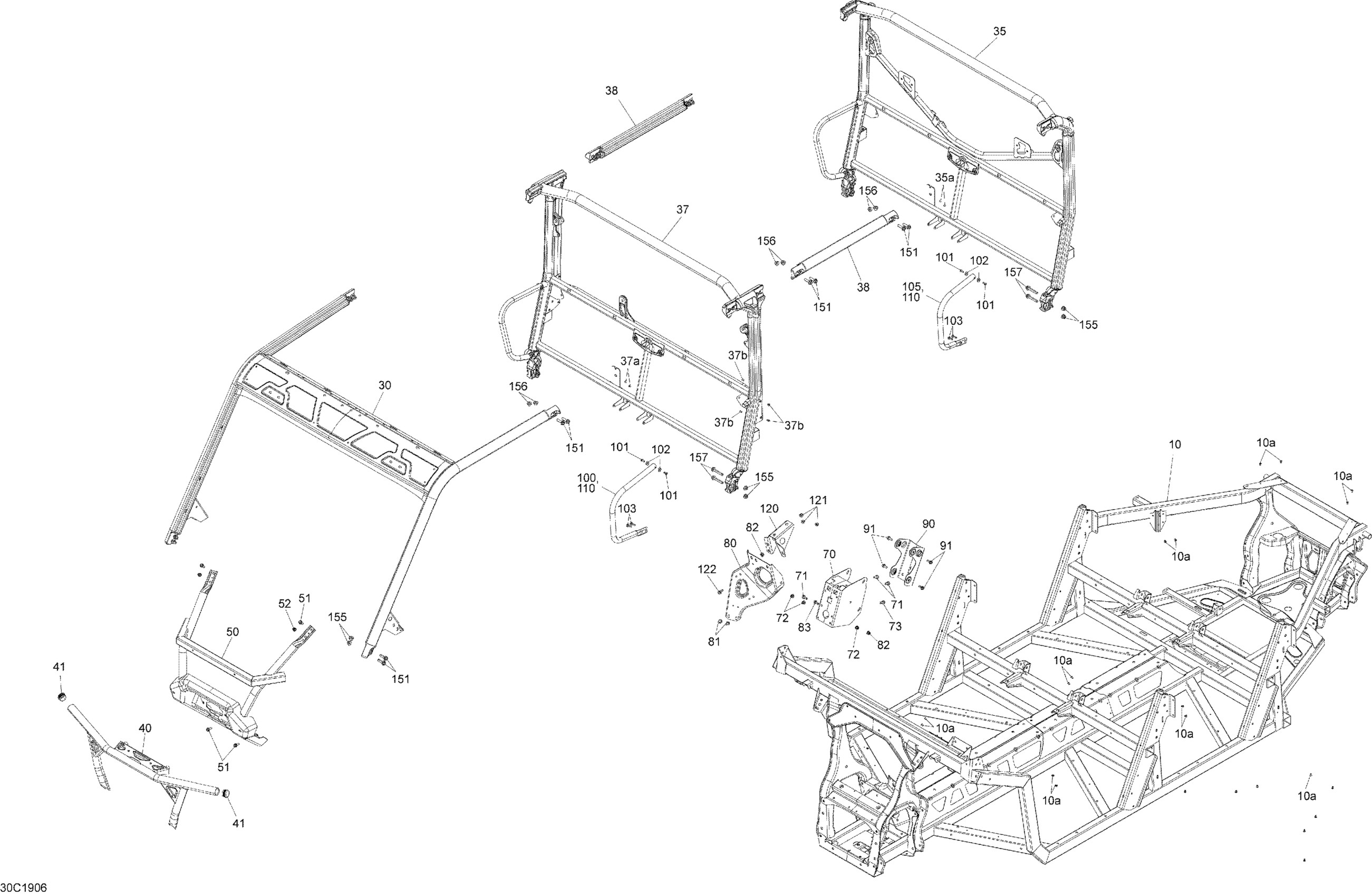

Can-Am 003 - Traxter MAX HD8 - International, 2019 09- Frame - MAX Diagram

#

Description
Price

10

Frame Kit

715005596

$3,239.99

10a

Pop Rivet 3/16"

390402200

$0.35

30

Front Cage Service Kit

715008358

$649.99

35

Black, Rear Cage Kit

715003569

$649.99

35a

Pop Rivet 3/16"

390402200

$0.35

37

Black, Central Cage Kit

715003770

$649.99

37a

Pop Rivet 3/16"

390402200

$0.35

37b

Pop Rivet 3/16"

390402200

$0.35

38

Deep Black, Cage Extension

705209848

$41.99

50

Deep Black, Front Bumper

705207588

$499.99

51

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.69

52

Hex. Flange Elastic Nut M8

233281414

$1.47

70

Plate

705206316

$55.99

71

Hex. Flange Screw M8 X 20

207682044

$1.15

72

Hex. Flange Elastic Nut M8

233281414

$1.47

73

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.69

81

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.69

82

Hex. Flange Elastic Nut M8

233281414

$1.47

83

Hex. Flange Screw M8 X 20

207682044

$1.15

90

Steering Column Support | Includes 90 to 90d

705209190

$37.99

91

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.69

100

Deep Black, LH Protector Tube

705204594

$44.49

101

Torx Truss M6X14

250000789

$5.39

102

Offset Washer

705202223

$4.14

103

Hex. Flange Screw M6 X 20, Scotch Grip

207562034

$2.11

105

LH Side Protect

705204590

$46.49

110

Deep Black, RH Protector Tube

705204592

$44.49

120

Shifting Module Support

705205171

$30.99

121

Hex. Flange Elastic Nut M8

233281414

$1.47

122

Hex. Flange Screw M8 X 20

207682044

$1.15

130

Insert Half Hex Body M6 x 1.0

250100199

$3.19

135

Insert Half Hex Body M6 x 1.0

250100199

$3.19

460

Hex. Flange Screw M6 X 20

207662044

$2.00

465

Torx Truss M8 X 90

250000806

$7.51

470

Hex. Flange Elastic Nut M8

233281414

$1.47

475

Spacer

705207754

$14.49
