Description

Price

10

Radiator

709200951

$370.99

20

Grommet

709200948

$8.89

30

Bushing

293900105

$7.65

35

Overmolded Grommet

293720130

$4.69

40

Hex. Flange Screw M6 X 25

207662544

$0.64

50

Flat Washer 6 mm

234062410

$0.77

70

Fan Ass'y

709200534

$339.99

80

Hex. Flange Screw M6 X 20

207662044

$2.00

90

Flat Washer 6 mm

234062410

$0.77

100

Radiator Pressure Cap

709200207

$25.49

120

Hose

709201028

$21.99

130

Radiator Hose In

709201032

$16.40

135

Tubing 35 MM 1000MM Long

219704428

$10.99

140

Y Fitting

509001200

$5.50

145

Retainer

275500590

$9.69

150

Hose

709200299

$8.60

170

T-Fitting

509000510

$13.16

173

Torx Screw K50 X 16

250000720

$1.69

180

Hose Engine Out

709200915

$41.49

185

Hose

709200971

$41.49

220

Thermostat Housing

709200986

$96.49

235

Hose Coolant Tank Out

709201103

$38.99

238

Oetiker Gear Clamp

293650165

$5.39

239

Oetiker Gear Clamp

293650165

$5.39

240

Hose

709200969

$35.99

245

Heater Tubing

709200657

$19.49

250

Tie Wrap

293750108

$7.83

256

Formed Thermostat Hose OUT

709201439

$16.40

260

Gear Clamp

509000162

$7.29

270

Norma Spring Clamp

293650166

$4.44

280

Norma Spring Clamp

293650166

$4.44

290

Norma Spring Clamp

293650166

$4.44

330

Coolant Tank

709201323

$80.99

332a

Was 276000394 Hose 6.4 mm | Includes 337 to 337a

219704362

$33.99

334

Oetiker Clamp

293650042

$3.09

335

Bleeding Hose

709200606

$20.99

337

Hose 6,35 Mm Id 4000Mm Long

219704547

$98.99

337a

Was 276000394 Hose 6.4 mm | Includes 337 to 337a

219704362

$33.99

338

Crimp Clamp, 15.3-706R

293650047

$3.29

339

Y-Fitting

293710059

$9.69

340

Tubing 16 Mm 1000Mm Long

219704408

$7.49

350

Polyurethane Hose 4000MM Long | Includes 250 to 250a

219704389

$78.49

360

Spring Clamp

414554800

$0.88

370

Front Radiator Deflector Ass'y

715008419

$52.99

380

Hex. Flange Screw M6 X 20

207662044

$2.00

385

Flat Washer 6 mm

234062410

$0.77

615

T-Fitting

509001313

$16.40

630

Formed Radiator Hose OUT

709201440

$11.10

632

Hose Radiator Out

709201029

$11.10

650

Heater Tubing

709200657

$19.49

655

Gear Clamp

509000162

$7.29

745

Gear Clamp

509000162

$7.29

900

Tubing 35 MM 1000MM Long

219704428

$10.99

905

Tubing 35 MM 1000MM Long

219704428

$10.99

910

Tubing 35 MM 1000MM Long

219704428

$10.99

920

Tubing 35 MM 1000MM Long

219704428

$10.99

930

Tubing 35 MM 1000MM Long

219704428

$10.99

1500

Front Air Deflector

709201036

$96.99

1510

Tuflok Plastic Rivet

293150230

$1.47

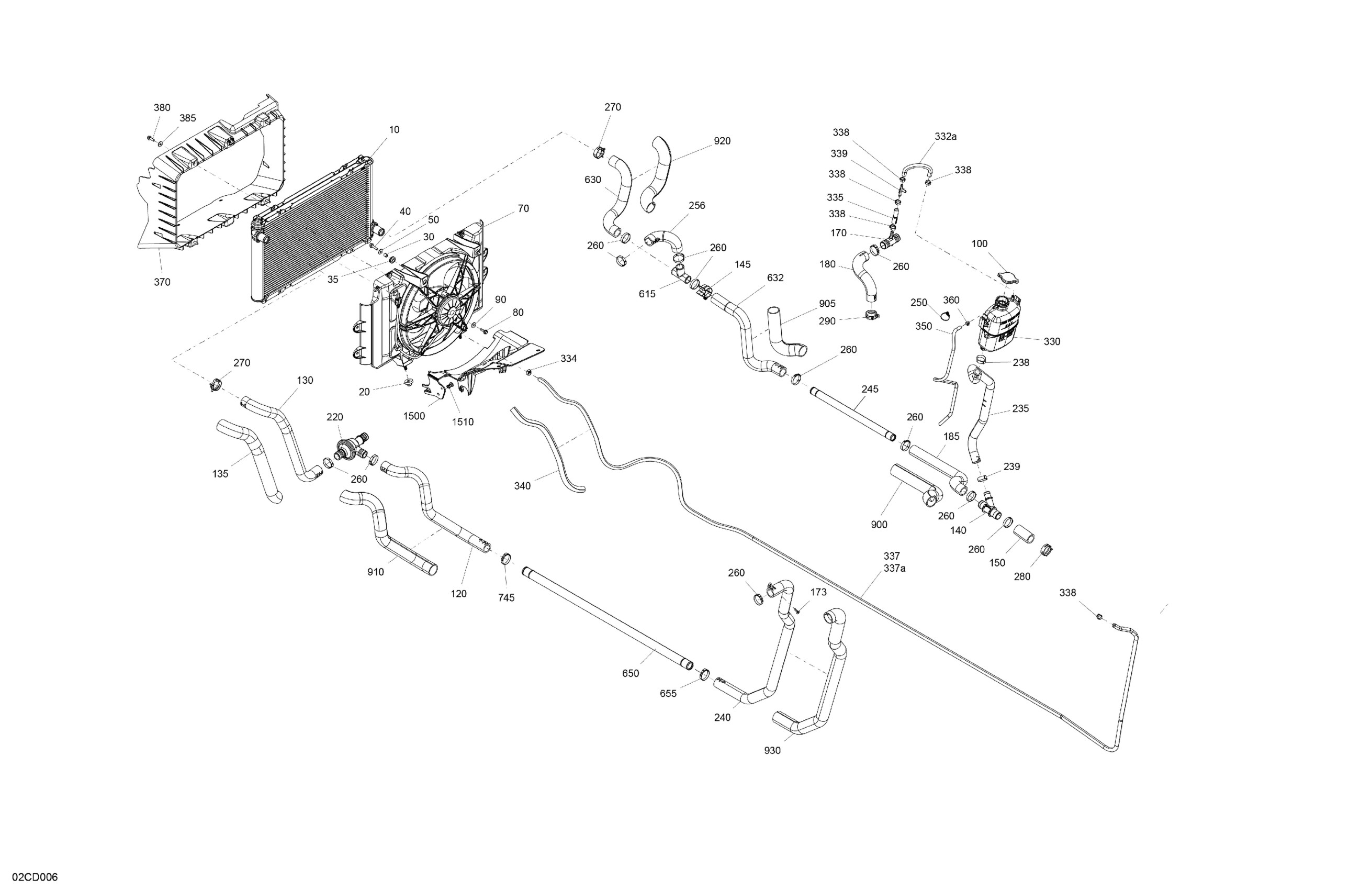

Can-Am International - Defender HD10 - XT - 8CRM - Timeless Black Metallic - 64" Width, 2024 02- Engine - Cooling Diagram

Radiator

Grommet

Bushing

Overmolded Grommet

Hex. Flange Screw M6 X 25

Flat Washer 6 mm

Fan Ass'y

Hex. Flange Screw M6 X 20

Flat Washer 6 mm

Radiator Pressure Cap

Hose

Radiator Hose In

Tubing 35 MM 1000MM Long

Y Fitting

Retainer

Hose

T-Fitting

Torx Screw K50 X 16

Hose Engine Out

Hose

Thermostat Housing

Hose Coolant Tank Out

Oetiker Gear Clamp

Oetiker Gear Clamp

Hose

Heater Tubing

Tie Wrap

Formed Thermostat Hose OUT

Gear Clamp

Norma Spring Clamp

Norma Spring Clamp

Norma Spring Clamp

Coolant Tank

Was 276000394 Hose 6.4 mm | Includes 337 to 337a

Oetiker Clamp

Bleeding Hose

Hose 6,35 Mm Id 4000Mm Long

Was 276000394 Hose 6.4 mm | Includes 337 to 337a

Crimp Clamp, 15.3-706R

Y-Fitting

Tubing 16 Mm 1000Mm Long

Polyurethane Hose 4000MM Long | Includes 250 to 250a

Spring Clamp

Front Radiator Deflector Ass'y

Hex. Flange Screw M6 X 20

Flat Washer 6 mm

T-Fitting

Formed Radiator Hose OUT

Hose Radiator Out

Heater Tubing

Gear Clamp

Gear Clamp

Tubing 35 MM 1000MM Long

Tubing 35 MM 1000MM Long

Tubing 35 MM 1000MM Long

Tubing 35 MM 1000MM Long

Tubing 35 MM 1000MM Long

Front Air Deflector

Tuflok Plastic Rivet
