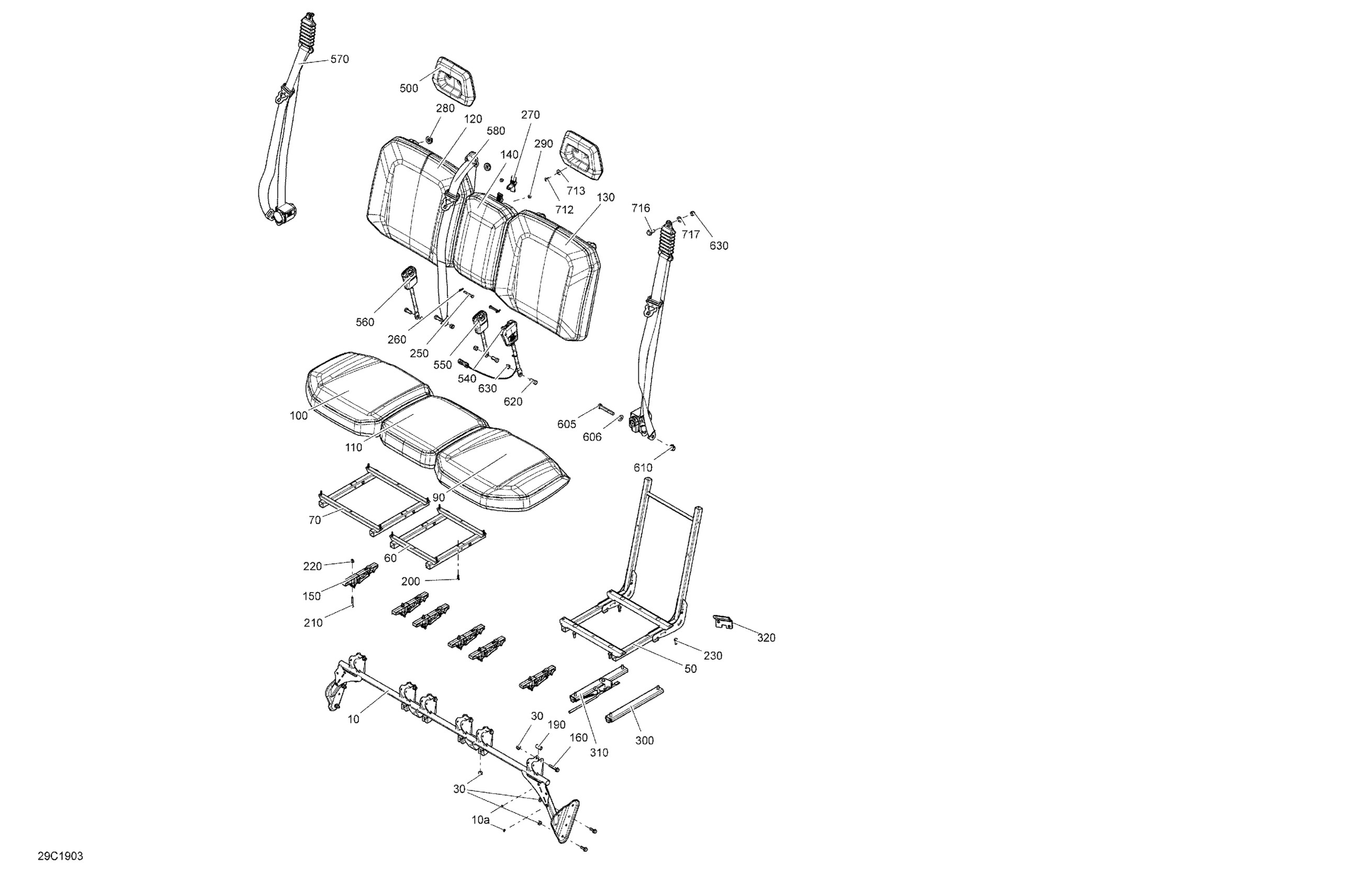

Can-Am 003 - Defender HD10 - International, 2019 09- Seat Diagram

Seat Member | Includes 10 to 10a7

708002817

$139.99

Seat Member | Includes 10 to 10a8

703501076

$139.99

Pop Rivet 3/16"

390402200

$0.35

Hex. Flange Elastic Nut M8

233281414

$1.47

Operator Seat Member | Includes 50 to 50a7

708001723

$329.99

Pop Rivet 3/16"

390402200

$0.35

Mid Seat Member

708002815

$204.99

Passenger Seat Member

708002821

$204.99

LH Cushion Ass'y

708002544

$294.99

LH Cushion Ass'y

708002545

$294.99

LH Cushion Ass'y | Package Hunter

708002546

$249.99

LH Seat Base Ass'y

708002556

$249.99

LH Seat Base Ass'y | Sunburst Yellow Models

708002604

$249.99

LH Seat Base Ass'y

708002661

$284.99

RH Cushion Ass'y

708001498

$284.99

RH Cushion Ass'y

708001926

$284.99

RH Cushion Ass'y | Package Hunter

708002346

$249.99

RH Seat Base Ass'y

708002559

$249.99

RH Seat Base Ass'y | Sunburst Yellow Models

708002606

$249.99

RH Seat Base Ass'y

708002663

$284.99

Central Cushion Ass'y

708001629

$249.99

Central Cushion Ass'y

708001928

$249.99

Central Cushion Ass'y | Package Hunter

708002341

$249.99

Central Seat Base Ass'y

708002596

$249.99

Seat Base Ass'y | Sunburst Yellow Models

708002598

$249.99

Central Seat Base Ass'y

708002659

$284.99

Backrest Ass'y

708001701

$379.99

Backrest Ass'y

708001995

$349.99

BACKREST ASSY - Call your local BRP dealership | Package Hunter

708002353

Unavailable

Backrest Ass'y

708002563

$349.99

Backrest Ass'y | Sunburst Yellow Models

708002610

$349.99

Backrest Ass'y

708002667

$349.99

Rubber Bumper

293830005

$8.09

Backrest Ass'y | Includes 130 to 130d

708001930

$349.99

Backrest Ass'y | Includes 130 to 130d

708002514

$349.99

BACKREST ASSY - Call your local BRP dealership | Sunburst Yellow Models

708002609

Unavailable

BACKREST ASSY - Call your local BRP dealership | Package Hunter

708002351

Unavailable

Backrest Ass'y | Includes 130 to 130a

708002562

$349.99

Rubber Bumper

293830005

$8.09

Backrest Ass'y | Includes 130 to 130d

708002665

$349.99

Center Backrest Ass'y | Except Package XT, Cab

708001630

$349.99

Center Backrest Ass'y | Package XT, Cab

708001932

$349.99

Center Backrest Ass'y | Package Hunter

708002349

$349.99

Backrest Ass'y

708002600

$349.99

Backrest Ass'y | Sunburst Yellow Models

708002602

$349.99

Backrest Ass'y | Break Up Country Camo Models

708002668

$349.99

Seat Base Pivot

708002581

$9.59

Hex. Flange Screw M8 X 45

207684544

$3.80

Hex. Flange Elastic Nut M8

233281414

$1.47

Hex. Flange Elastic Nut M8

233281414

$1.47

Bushing

708001903

$3.79

Torx Screw Truss Head K50X20 T20

250000760

$2.11

Hex. Screw M6 X 45

207064544

$2.11

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

Hex. Screw M8 X 20

207182044

$0.74

Pin

250400069

$3.89

Hairpin Cotter

269800431

$1.29

Latch

269501487

$16.99

Grommet

517303756

$4.09

Rubber Bumper

293830005

$8.09

LH Rail

708000848

$53.99

RH Rail | Package XT, Cab

708002001

$35.99

Seat Stopper

708003672

$2.59

Pop Rivet 3/16"

390402200

$0.35

Headrest

708002853

$58.99

Driver Buckle

708002331

$70.99

Middle Buckle

708003163

$67.99

Passenger Buckle

708002329

$67.99

Lateral Safety Belt

708002642

$222.49

Central Safety Belt

708002643

$243.49

Hex. Screw M12 X 80

207028046

$3.91

Flat Washer M12

250200102

$2.11

Elastic Flange Nut M12

233221416

$2.85

Hex. Cap Screw 7/16'' X 1'' | Europe

250000521

$1.90

Lock Nut Nylon 7/16

250100183

$2.00

Flat Washer M6.6 X 22

250200162

$2.32

Safety Belt Screw

708000890

$3.79

Position Washer

708000891

$1.29

Torx Screw Truss Head K50X20 T20

250000760

$2.11

Torx Head Screw M6 X 16

250000717

$2.11

Elastic Flange Nut M12

233221416

$2.85

Lock Nut Nylon 7/16

250100183

$2.00
