Description

Price

1

CVT Air Guide

420212604

$224.99

2

Gasket

420450400

$31.99

3

O-Ring

420430408

$5.29

4

O-Ring

420450431

$5.29

5

Hex.Screw M6 X 20

420441311

$5.18

6

Variator Cover

420212500

$200.99

7

O-Ring

420250050

$10.43

8

Cap

420441820

$11.63

9

Torx Screw 6X30

420441575

$3.06

10

Governor Cup Ass'y

420280746

$194.99

11

Slider Shoe Set

420281296

$65.49

12

Roller Axle

417223257

$6.99

13

Roller

417223767

$11.59

14

Outer Half Ass'y

420280605

$289.99

15>18

Centrifugal Lever Kit

420248683

$243.49

15>18

Centrifugal Lever Kit | Includes no. 16-19

420248684

$238.49

16

Not Available As Spare Part - Friction Washer

Unavailable

17

Not Available As Spare Part - Friction Washer

Unavailable

18

Not Available As Spare Part - Friction Washer

Unavailable

19

Bearing Cover Ass'y

420280615

$65.49

20

Torx Flange Screw M6 X 25

420841549

$2.00

21

Compression Spring

420638119

$35.99

22

Spring Seat

420427210

$37.99

23

Washer

420427220

$4.86

24

Needle Roller Bearing With Sleeves

420832351

$49.99

25

Inner Half Ass'y

420280596

$339.99

26

Washer

420245690

$4.86

27

Hexagonal Screw M14X 165

420841161

$29.49

28

Driven Pulley Ass'y | Incl 30, 35, 36, 37

420686523

$569.99

28

Inner Half Ass'y

420280635

$179.99

29

Drive Belt

422280656

$174.99

30

Driven Pulley Ass'y | Incl 30, 35, 36, 37

420686523

$569.99

30

Outer Half Ass'y

420280627

$369.99

31

Pulley Roller

417127016

$24.49

32

Lock Washer 8 mm

250200009

$2.11

33

Pivot Stud

417127294

$14.49

34

Dowel Pin

420629200

$2.51

35

Swivel Abutment

417127116

$9.39

36

Black, Return Spring

417127039

$46.49

37

Cam

420280647

$185.49

38

Binding Head Screw M8X25

420441981

$17.04

39

Collar Washer

420427243

$16.40

40

Hexagonal Screw M10X 61

420441990

$19.49

41

Distance Ring

420647263

$27.99

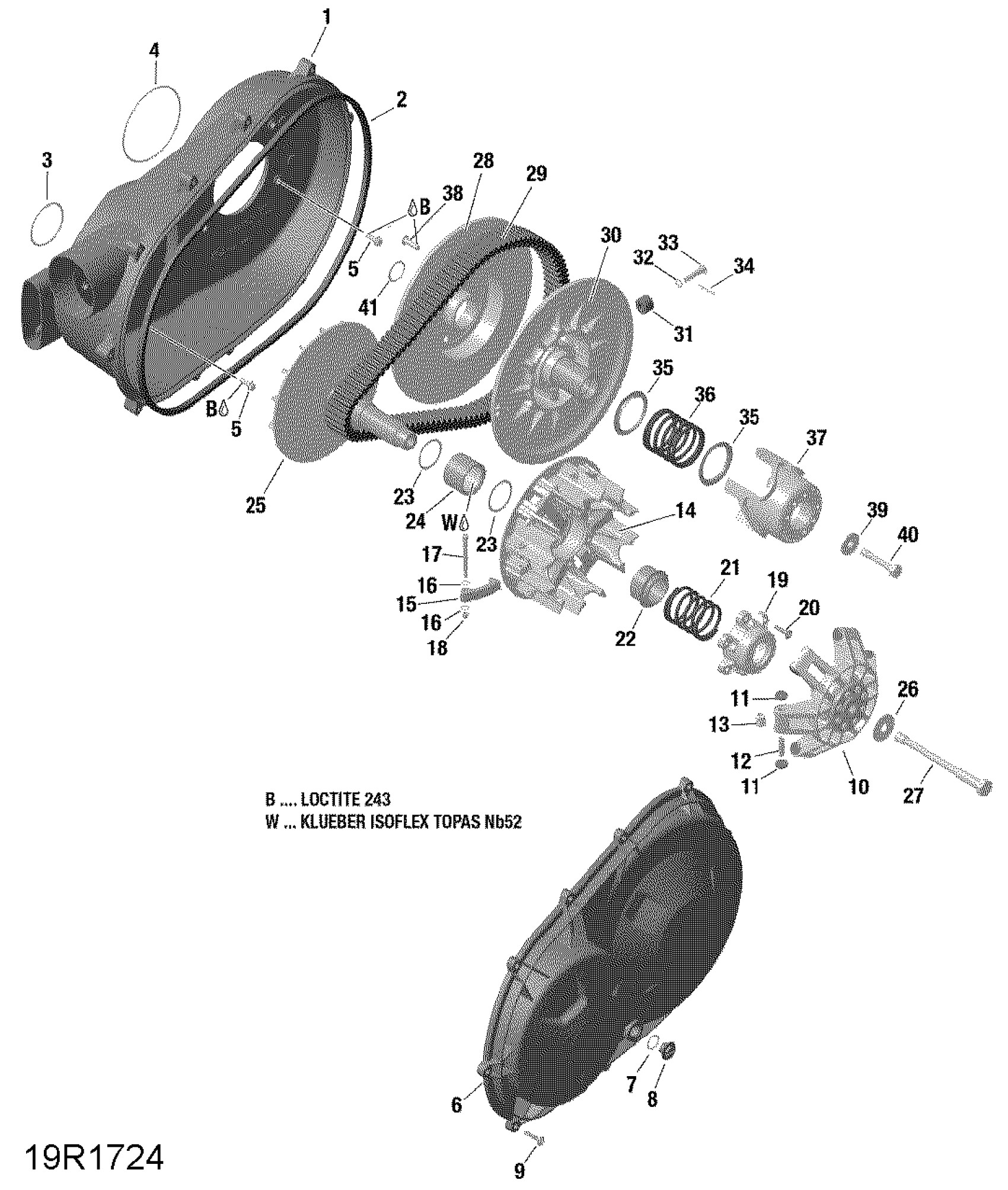

Can-Am 003 - Defender HD10 - International, 2019 05- Transmission - HD10 Diagram

CVT Air Guide

Gasket

O-Ring

O-Ring

Hex.Screw M6 X 20

Variator Cover

O-Ring

Cap

Torx Screw 6X30

Governor Cup Ass'y

Slider Shoe Set

Roller Axle

Roller

Outer Half Ass'y

Centrifugal Lever Kit

Centrifugal Lever Kit | Includes no. 16-19

Not Available As Spare Part - Friction Washer

Not Available As Spare Part - Friction Washer

Not Available As Spare Part - Friction Washer

Bearing Cover Ass'y

Torx Flange Screw M6 X 25

Compression Spring

Spring Seat

Washer

Needle Roller Bearing With Sleeves

Inner Half Ass'y

Washer

Hexagonal Screw M14X 165

Driven Pulley Ass'y | Incl 30, 35, 36, 37

Inner Half Ass'y

Drive Belt

Driven Pulley Ass'y | Incl 30, 35, 36, 37

Outer Half Ass'y

Pulley Roller

Lock Washer 8 mm

Pivot Stud

Dowel Pin

Swivel Abutment

Black, Return Spring

Cam

Binding Head Screw M8X25

Collar Washer

Hexagonal Screw M10X 61

Distance Ring
