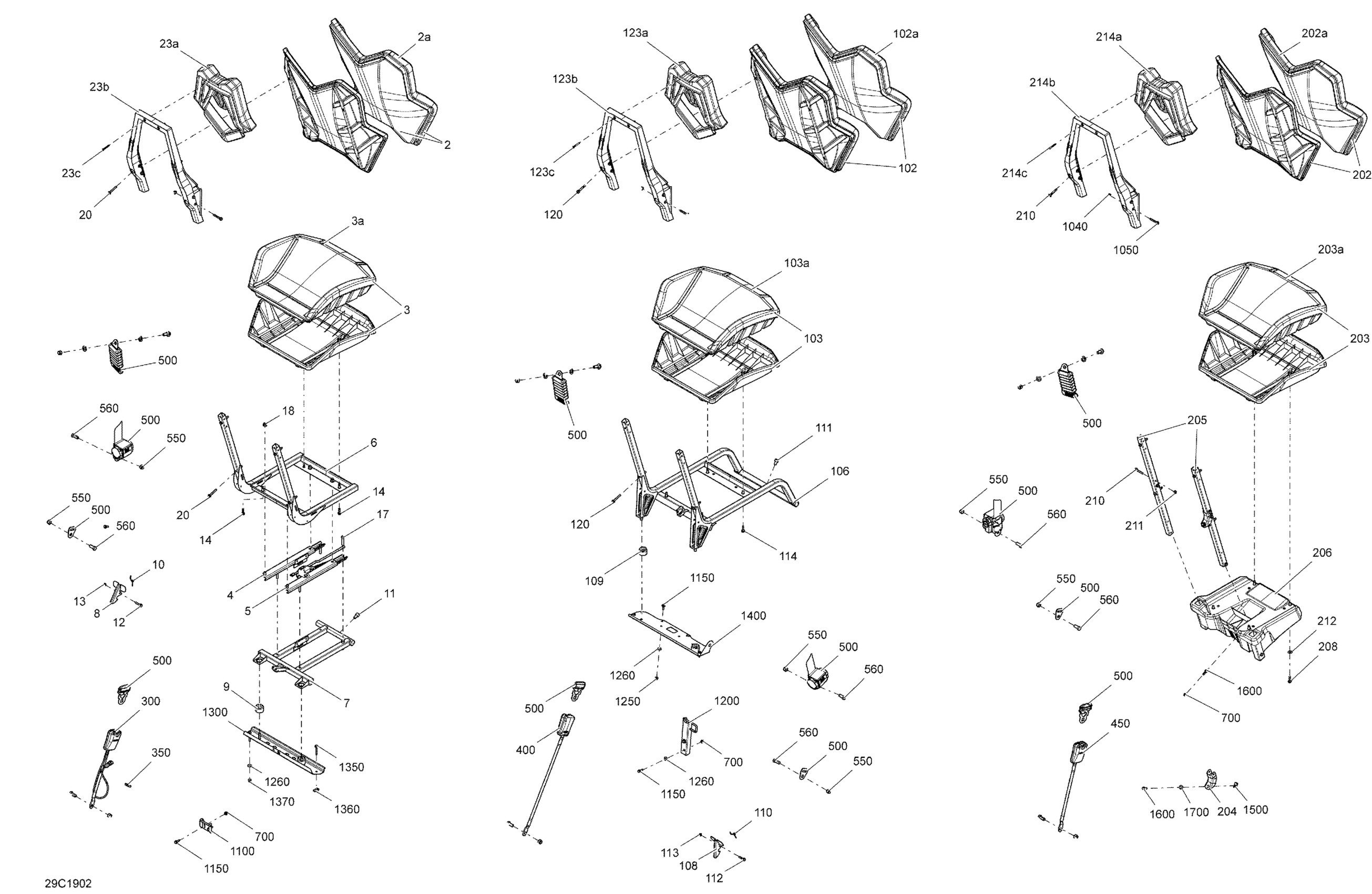

Can-Am 003 - Commander MAX 1000R EFI - International, 2019 09- Seat Diagram

#

Description
Price

2

Backrest Ass'y | Includes 2 to 3

703500945

$399.99

2

Backrest Ass'y | Package LTD

708002616

$439.99

2a

Backrest Cover

708000675

$97.99

2a

Backrest Cover | Package LTD

708002618

$153.49

3

Cushion Ass'y | Includes 4 to 5

703500943

$349.99

3

Cushion Ass'y | Package LTD

708002617

$319.99

3a

Seat Cover

708001103

$117.99

3a

Seat Cover | Package LTD

708002619

$99.49

4

LH Rail

708000848

$53.99

5

RH Rail

708001739

$35.99

6

Operator Seat Frame

708001356

$329.99

7

Seat Member

708001174

$80.99

8

Seat Latch

708001355

$2.59

9

Rubber Bumper

708001671

$2.89

10

Spring

708000921

$1.29

11

Socket Screw M10 X 16

205501644

$4.29

12

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$2.11

13

Hex. Elastic Stop Nut M6

232561600

$1.15

14

Hex. Flange Screw M6 X 25

207562544

$1.69

17

Socket Head Screw M8 X 1.25 X 40

205084044

$2.85

18

Hex. Flange Elastic Nut M8

233281414

$1.47

20

Hex. Flange Screw M6

250000672

$2.11

23a

Head Rest

708001074

$104.99

23b

Seat Support

708001245

$28.99

23c

Hex. Flange Screw K50 X 40

250000897

Unavailable

102

Backrest Ass'y | Includes 2 to 3

703500945

$399.99

102

Backrest Ass'y | Package LTD

708002616

$439.99

102a

Backrest Cover

708000675

$97.99

102a

Backrest Cover | Package LTD

708002618

$153.49

103

Cushion Ass'y | Includes 4 to 5

703500943

$349.99

103

Cushion Ass'y | Package LTD

708002617

$319.99

103a

Seat Cover

708001103

$117.99

103a

Seat Cover | Package LTD

708002619

$99.49

106

Passenger Seat Frame

708001357

$319.99

108

Seat Latch

708001355

$2.59

109

Rubber Bumper

708001671

$2.89

110

Spring

708000921

$1.29

111

Socket Screw M10 X 16

205501644

$4.29

112

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$2.11

113

Hex. Elastic Stop Nut M6

232561600

$1.15

114

Hex. Flange Screw M6 X 25

207562544

$1.69

120

Hex. Flange Screw M6

250000672

$2.11

123a

Head Rest

708001074

$104.99

123b

Seat Support

708001245

$28.99

123c

Hex. Flange Screw K50 X 40

250000897

Unavailable

202

Backrest Ass'y | Includes 2 to 3

703500945

$399.99

202

Backrest Ass'y | Package LTD

708002616

$439.99

202a

Backrest Cover

708000675

$97.99

202a

Backrest Cover | Package LTD

708002618

$153.49

203

Cushion Ass'y | Includes 4 to 5

703500943

$349.99

203

Cushion Ass'y | Package LTD

708002617

$319.99

203a

Seat Cover

708001103

$117.99

203a

Seat Cover | Package LTD

708002619

$99.49

204

Rear Anchor

708001474

$19.99

205

Side Tube

708001476

$30.99

206

Seat Support

708001198

$68.99

208

Hex. Flange Screw M6 X 25

207562544

$1.69

210

Hex. Flange Screw M6

250000672

$2.11

211

Hex. Elastic Flange Nut M6

233161464

$1.01

212

Stainless Steel Flat Washer

234062670

$2.11

214a

Head Rest

708001074

$104.99

214b

Seat Support

708001245

$28.99

214c

Hex. Flange Screw K50 X 40

250000897

Unavailable

300

Driver Buckle Side

708002061

$70.99

400

Passenger Buckle Side

708002064

$67.99

450

Rear Passenger Buckle Side

708002063

$67.99

500

Safety Belt

708002644

$280.99

550

Nylon Insert Hex. Lock Nut 7/16-20

250100135

$7.09

560

Hex. Cap Screw 7/16'' X 1'' | Europe

250000521

$1.90

700

Insert Half Hex Body M6 x 1.0

250100199

$3.19

1100

Anchor

708001212

$19.99

1150

Hex. Flange Screw S.Grip M6 X 20

207562054

$2.11

1200

Anchor

708001213

$24.49

1250

Hex. Flange Nut M6

233061414

$1.68

1260

Stainless Steel Flat Washer

234062670

$2.11

1300

Seat Support

708001214

$67.99

1350

Hex. Flange Screw M6 X 1.0 X 45

250000213

$2.11

1360

Panel Nut M6 X 1.0

250100171

$4.09

1370

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

1400

Support

708001804

$49.99

1500

Panel Nut M6 X 1.0

250100171

$4.09

1600

Hex. Flange Screw S.Grip M6 X 20

207562054

$2.11

1700

Conical Spring Washer M8

234281474

$1.48

1800

Nylon Insert Hex. Lock Nut 7/16-20

250100135

$7.09

1810

Hex. Cap Screw 7/16'' X 1'' | Europe

250000521

$1.90

1820

Safety Belt Screw

708000890

$3.79

1830

Position Washer

708000891

$1.29

1840

Hex. Elastic Flange Nut M6

233161464

$1.01

1850

Hex. Flange Screw M6

250000672

$2.11
