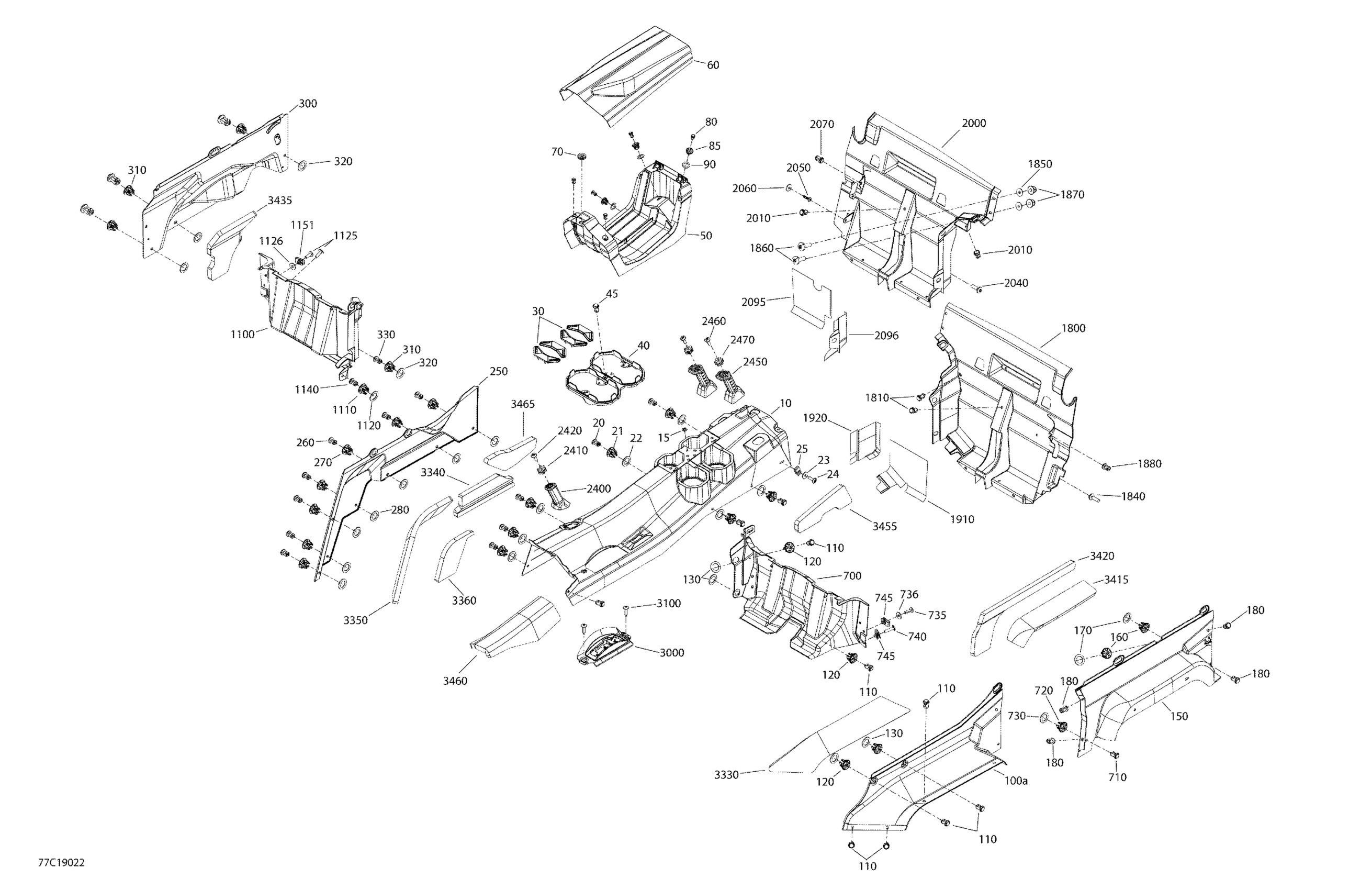

Can-Am 003 - Commander MAX 1000R EFI - International, 2019 09- Cab Interior Commander MAX - Upper Section Diagram

#

Description
Price

10

Front Center Console Assembly | Except Package LTD

715006470

$154.99

15

Push Nut

732610072

$2.19

20

Tuflok Plastic Rivet

293150230

$1.47

21

Insert

707900133

$2.89

22

Washer

503189273

$3.28

23

Stainless Steel Flat Washer

234062670

$2.11

24

Torx Screw M6 X 20

250000722

$1.68

25

Panel Nut M6 X 1.0

250100198

$2.11

30

Cup Retainer

707900036

$6.89

40

Cup Holder

707900100

$18.49

45

Tuflok Plastic Rivet

293150230

$1.47

50

Rear Central Console

707900075

$46.99

60

Rear Console Cover Kit

707900229

$44.99

70

Grommet

517303756

$4.09

80

Tuflok Plastic Rivet

293150230

$1.47

85

Insert

707900133

$2.89

90

Washer

503189273

$3.28

100a

LH Side Console

707900001

$44.99

110

Tuflok Plastic Rivet

293150230

$1.47

120

Insert

707900133

$2.89

130

Washer

503189273

$3.28

150

Rear Left Dash

707900633

$83.99

160

Insert

707900133

$2.89

170

Washer

503189273

$3.28

180

Tuflok Plastic Rivet

293150230

$1.47

250

RH Side Console

707900002

$36.99

260

Tuflok Plastic Rivet

293150230

$1.47

270

Insert

707900133

$2.89

280

Washer

503189273

$3.28

300

RH Rear Console Panel

707900080

$68.99

310

Insert

707900133

$2.89

320

Washer

503189273

$3.28

330

Tuflok Plastic Rivet

293150230

$1.47

700

LH Rear Upper Floor Cover

707900082

$53.99

710

Tuflok Plastic Rivet

293150230

$1.47

720

Insert

707900133

$2.89

730

Washer

503189273

$3.28

735

Torx Screw M6 X 20

250000722

$1.68

736

Stainless Steel Flat Washer

234062670

$2.11

740

Torx Screw M6 X 25

250000758

$2.11

745

Panel Nut M6 X 1.0

250100198

$2.11

1100

Seat Cover

707900083

$46.49

1110

Insert

707900133

$2.89

1120

Washer

503189273

$3.28

1125

Torx Screw M6 X 20

250000722

$1.68

1126

Stainless Steel Flat Washer

234062670

$2.11

1140

Tuflok Plastic Rivet

293150230

$1.47

1151

Panel Nut M6 X 1.0

250100198

$2.11

1800

DEFLECTOR_BODY PANEL REAR L - Call your local BRP dealership

707900220

Unavailable

1810

Tuflok Plastic Rivet

293150230

$1.47

1840

Torx Screw K50 X 16

250000720

$1.69

1850

Flat Washer

250200040

$1.90

1860

Torx Screw M6 X 20

250000712

$2.11

1870

Hex. Flange Elastic Nut M6

233261494

$1.58

1880

Tuflok Plastic Rivet

293150230

$1.47

1910

Heat Shield

707900182

$8.89

1920

Heat Shield

707900183

$5.29

2000

DEFLECTOR_BODY PANEL REAR R - Call your local BRP dealership

707900219

Unavailable

2010

Tuflok Plastic Rivet

293150230

$1.47

2040

Torx Screw K50 X 16

250000720

$1.69

2050

Torx Screw Truss Head K50X20 T20

250000760

$2.11

2060

Stainless Steel Flat Washer

234062670

$2.11

2070

Tuflok Plastic Rivet

293150230

$1.47

2095

Heat Shield

707900167

$9.39

2096

Heat Shield

707900184

$5.29

2400

Passenger Handle

707900011

$13.75

2410

Torx Screw M6 X 20

250000722

$1.68

2420

Connector Tube

707900048

$6.19

2450

Handle

707900103

$15.36

2460

Torx Screw M6 X 20

250000722

$1.68

2470

Connector Tube

707900048

$6.19

3000

Shift Lever Indicator

707900088

$15.49

3100

Torx Screw M6 X 25 | XT Models

250000728

$4.44

3330

LH Lower Lateral Console Foam

707900621

$23.99

3340

RH Lateral Console Foam

707900622

$16.49

3350

RH Lateral Console Foam

707900623

$16.49

3360

RH Lateral Console Foam

707900624

$16.49

3415

LH Rear Lateral Foam | Model-Black Carbon (Turbo), White/Gray/Green (Turbo)

707900625

$23.99

3420

LH Rear Lateral Foam

707900626

$16.49

3435

RH Rear Lateral Foam

707900627

$16.49

3455

Front Central Foam

707900628

$11.49

3460

Front Central Foam

707900629

$17.49

3465

Front Central Foam

707900630

$11.49

3600

Torx Screw M5 X 14

250000742

$1.47

3610

Flat Washer

250200040

$1.90

3615

Hex. Flange Screw S.Grip M6 X 20

207562054

$2.11

3620

Hex. Flange Screw M8 X 20

207682044

$1.15

3625

Hex. Flange Elastic Nut M8

233281414

$1.47
