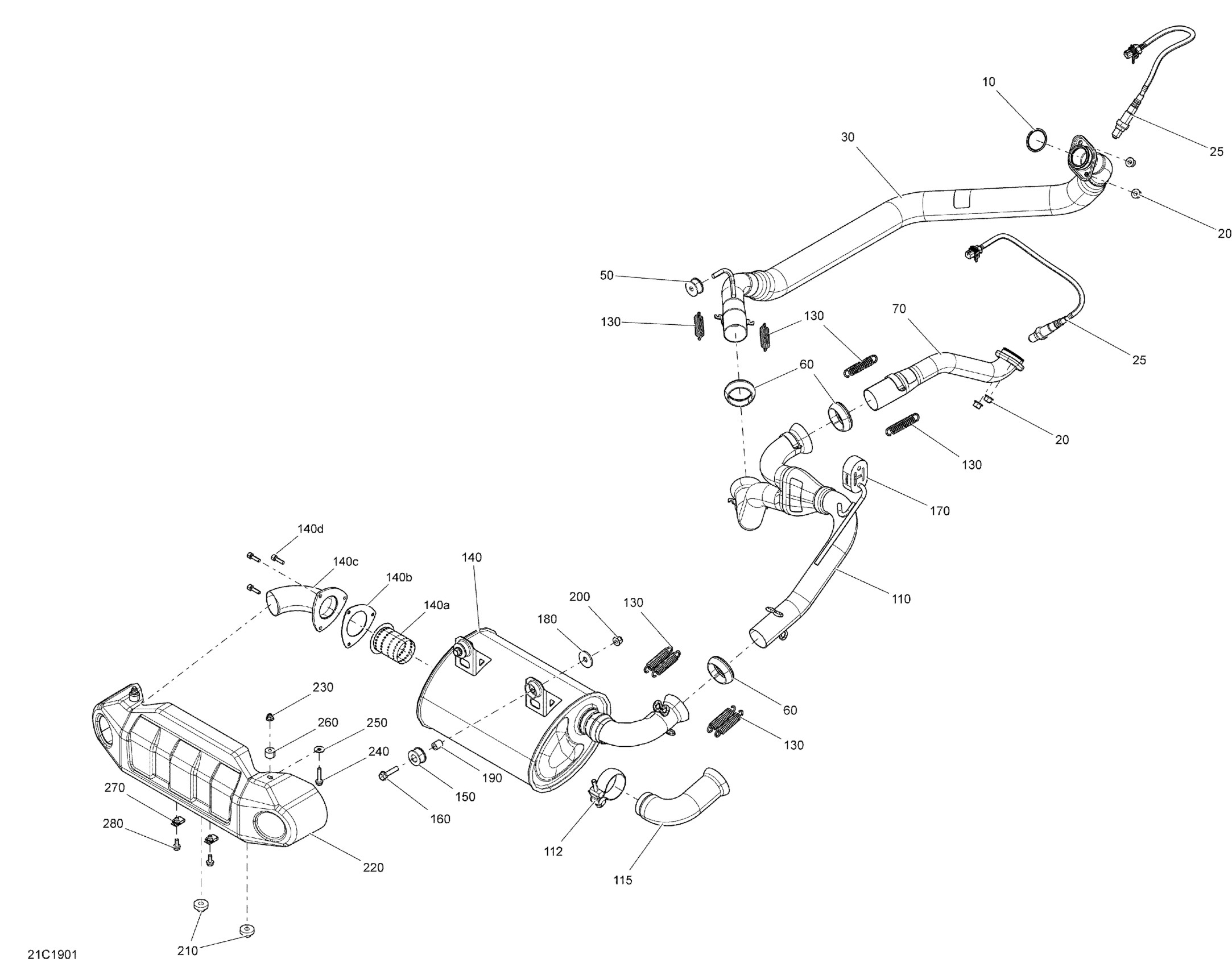

Can-Am 003 - Commander MAX 1000R EFI - International, 2019 01- Exhaust - 1000R EFI Diagram

Description

Price

Gasket

707600317

$11.60

Hex. Flange Nut M8

233081416

$1.15

Oxygen Sensor

707600872

$144.99

Front Head Pipe | Except Model-Europe

707601204

$269.99

Anti-Vibration Rubber

707600702

$8.57

Exhaust Gasket

707601033

$13.77

Rear Head Pipe | Except Model-Europe

707601206

$269.99

110

Link Head Pipe | Except Model-Europe

707601207

$269.99

112

Exhaust Clamp

707600980

$24.99

115

LINK HEAD PIPE - Call your local BRP dealership

707601327

Unavailable

120

Exhaust Gasket

707601033

$13.77

130

Spring

415107100

$6.35

140

Muffler Ass'y | Except Model- Europe, Includes 39a To 39d

707601492

$847.49

140a

Spark Arrestor

707601803

$49.99

140b

Gasket

715900090

$13.69

140c

Muffler Outlet End Piece

715900091

$35.99

140d

Socket Head Screw M6 X 20

205062060

$2.32

150

Vibration Damper

707603323

$11.65

160

Hex. Flange Screw M8 X 35

207683544

$1.69

170

Rubber Bumper

707600638

$15.81

180

Washer

503032900

$3.28

190

Bushing

293900106

$4.55

200

Hex. Flange Elastic Nut M8

233281414

$1.47

210

Grommet

709200285

$9.69

220

Deflector

707600675

$43.99

230

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

240

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$2.11

250

Flat Washer

250200082

$0.42

260

Bushing

707000882

$4.29

270

Panel Nut M6 X 1.0

250100198

$2.11

280

Hex. Flange Screw M6 X 16

207661644

$0.74
