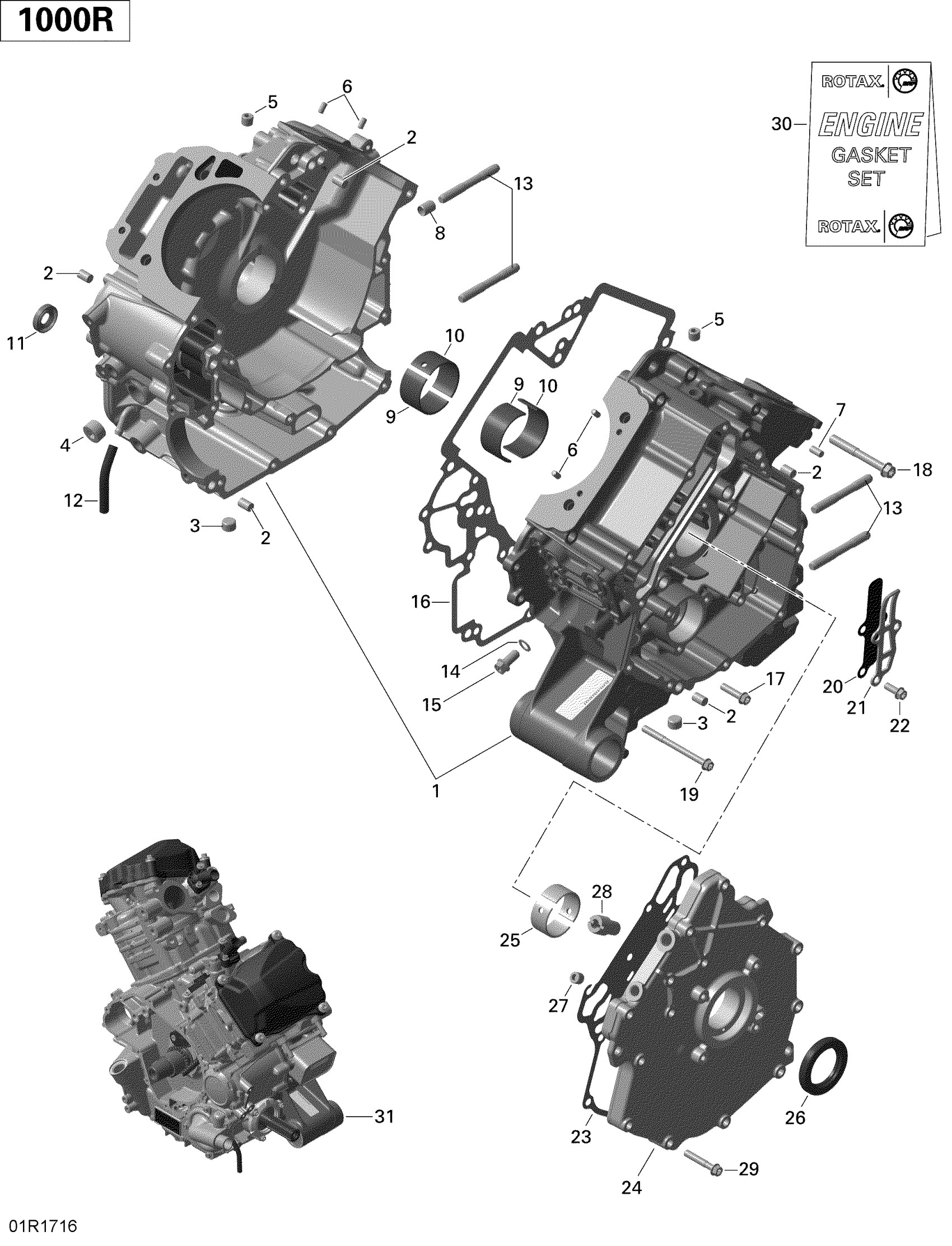

Can-Am 003 - Commander MAX 1000R EFI - International, 2019 01- Crankcase - 1000R Diagram

#

Description
Price

1

Crankcase Ass'y | Includes 1 to 12

420686416

$1,150.49

2

Center Pin 8 X 12

420632010

$4.01

3

Plug Screw M12 X 1.5

420840657

$8.57

4

Plug Screw M18 X 1.5 - Call your local BRP dealership

420240170

$7.41

5

Plug Screw M10 X 1

420641323

$14.28

6

Drive Pin 5 X 10

420929650

$1.68

7

Needle Pin

420932780

$7.41

8

Dowel Pin 10 X 13

420929670

$11.60

9

Plain Bearing

420233960

$23.99

10

Plain Bearing

420233965

$23.99

11

Oil Seal

420650315

$11.65

12

Not Available As Spare Part - Friction Washer

Unavailable

13

Stud

420240816

$7.09

14

Sealing Ring

420950141

$2.00

15

Torx Flange Screw M8 X 16

420440852

$4.12

16

Gasket

420651227

$31.99

17

Torx Flange Screw M6 X 25

420641238

$3.27

18

Torx Flange Screw M8 X 65

420440402

$7.41

19

Torx Flange Screw M6 X 75

420440657

$4.44

20

Reed Valve

420224721

$19.19

21

Reed Valve Stop

420224725

$11.63

22

Torx Flange Screw M6 X 16

420641048

$2.96

23

Gasket

420651211

$26.49

24

PTO Cover Ass'y | Includes 25a to 29

420612335

$280.99

25

Bearing Sleeve

420233995

$20.99

26

Oil Seal

420631933

$27.49

27

Plug Screw M10 X 1

420641323

$14.28

28

Hose Nipple M12 X 1.5

420256334

$10.58

29

Torx Flange Screw M6 X 35

420440274

$1.01

30

Gasket Kit, Engine

420684151

$466.49

31

Long Block Kit

420101006

$3,995.99
