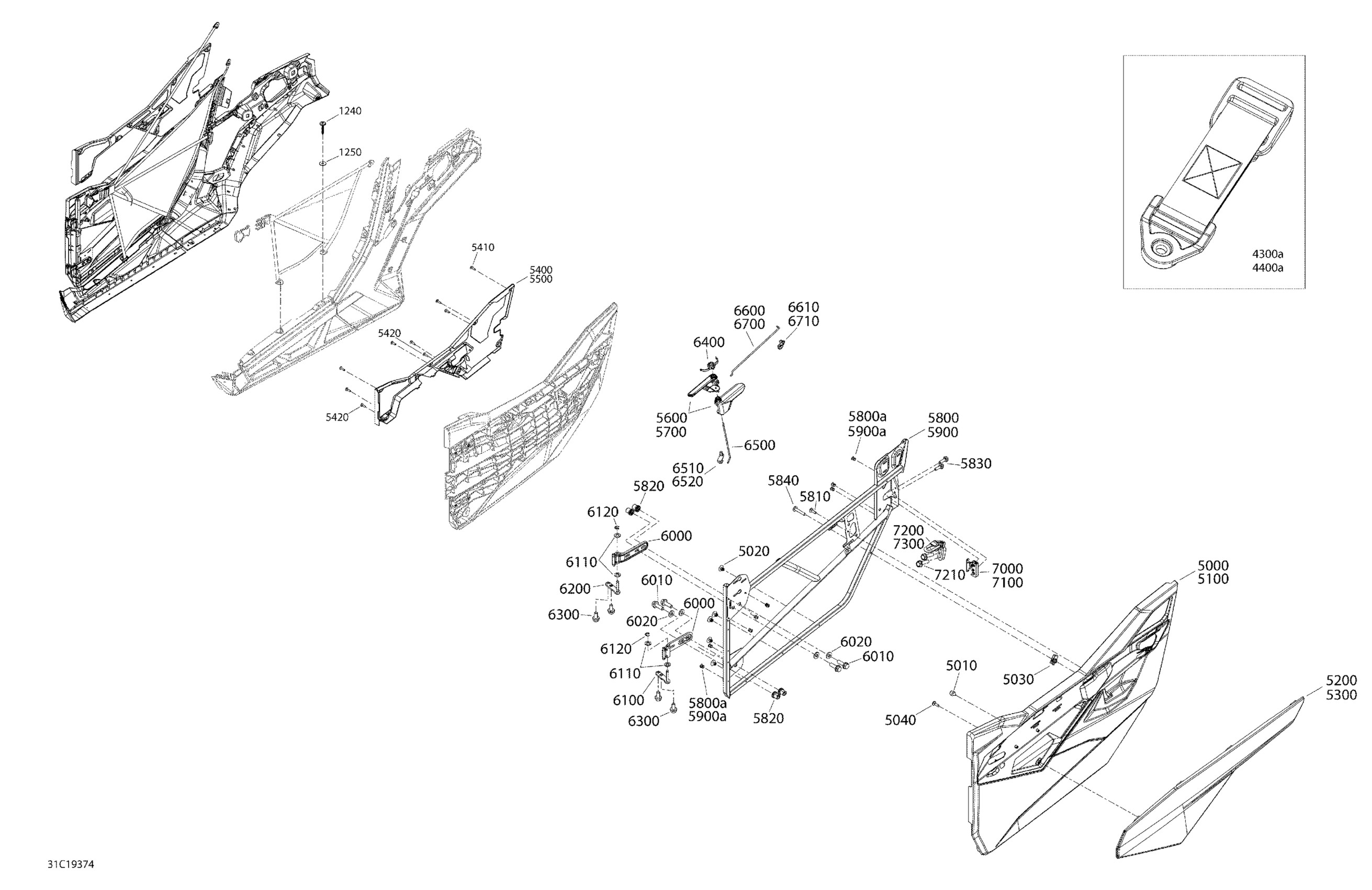

Can-Am 002 - Maverick Trail 1000 - BASE_DPS - North America, 2019 09- Body - 1000 - Door Section Diagram

Torx Truss Screw Head PT.K50 X 40

250000840

$1.90

Flat Washer M6.6 X 22

250200162

$2.32

Upper Link

707900049

$43.99

Upper Link

707900049

$43.99

LH Exterior Door Panel

705011479

$114.99

Rubber Bumper

293830005

$8.09

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

Panel Nut M6 X 1.0

250100198

$2.11

Torx Screw K50 X 16

250000720

$1.69

RH Exterior Door Panel

705011480

$114.99

White, LH Door Trim Panel | Package Base

705011481

$129.99

Red, LH Door Trim Panel | DPS, Red Model

705012419

$189.99

Yellow, LH Door Trim Panel | DPS, Yellow Model

705012421

$189.99

Camo, LH Door Trim Panel | DPS, Camo Model

705012423

$189.99

White, RH Door Trim Panel | Package Base

705011482

$129.99

Red, RH Door Trim Panel | DPS, Red Model

705012420

$189.99

Yellow, RH Door Trim Panel | DPS, Yellow Model

705012422

$189.99

Camo, RH Door Trim Panel | DPS, Camo Model

705012424

$189.99

LH Inner Door Panel Ass'y

715005003

$116.49

Torx Screw K50 X 16

250000720

$1.69

Torx Screw K50 X 16

250000720

$1.69

RH Door Panel Ass'y

715006765

$109.99

LH Opening Handle

705011585

$18.99

RH Opening Handle

705011586

$18.99

LH Door Frame | Includes 5800 to 5800a10

705800303

$154.99

Pop Rivet 3/16" | DS 650 X

390402000

$0.33

Torx Screw K50 X 16

250000720

$1.69

Insert Half Hex Body M8 x 1.25

293450307

$2.69

Hex. Flange Screw S.Grip M6 X 20

207562054

$2.11

Torx Screw M6 X 35

250000541

$2.11

RH Door Frame | Includes 5900 to 5900a10

705800304

$154.99

Pop Rivet 3/16" | DS 650 X

390402000

$0.33

Hinge

705013228

$26.99

Hex. Flange Screw M8 X 25, Scotch Grip

207582586

$1.90

Washer

503192494

$3.17

Lock Washer 8 mm, Stainless

234181601

$0.55

Lower Hinge Ajustement

705011629

$15.49

Flat Washer 8 mm, Nylon

234081100

$1.39

Circlip | RS STD

705601030

$4.39

Upper Hinge Ajustement

705012506

$15.49

Hex. Flange Screw DIN.6921 S.Grip

250001033

$1.16

Handle Spring

705011630

$11.49

Handle Axle

705206132

$14.49

RH Tie Rod Clip

708300202

$2.89

LH Tie Rod Clip

708300182

$2.89

LH Locking Rod

705206133

$3.89

RH Tie Rod Clip

708300202

$2.89

RH Locking Rod

705206134

$3.89

LH Tie Rod Clip

708300182

$2.89

LH Latch

705013095

$43.99

RH Latch

705013096

$43.99

LH Stricker Support

705207027

$26.99

Hex. Flange Screw M8 X 30, Scotch Grip

207583044

$1.69

RH Stricker Support

705207028

$26.99
