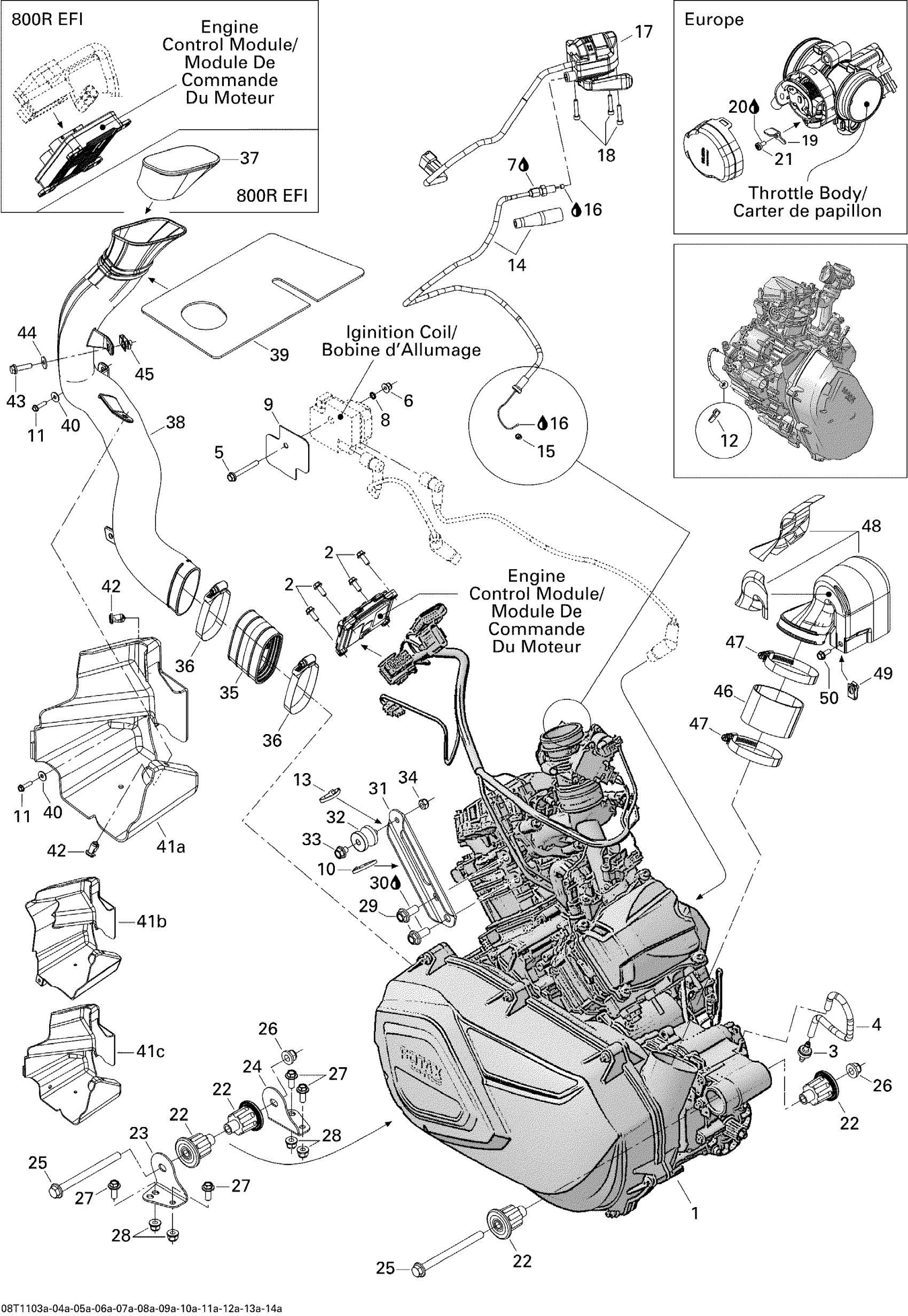

Can-Am Outlander 650 EFI, 2011 01- Engine 1 Diagram

#

Description
Price

1

LONG BLOCK, 650EFI - Call your local BRP dealership

420066037

Unavailable

2

Hex. Flange Screw M6 X 16

210261650

$1.67

3

Check Valve

275500398

$10.99

4

Hose 6 Mm 15000Mm Long

219704360

$132.49

5

Hex. Flange Screw M6 X 50

207665044

$4.12

6

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

7

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

8

External Serrated Lock Washer 6 mm

234461608

$1.15

9

Insulator Pad

710000073

$11.12

10

Tie-Rap 180 mm

414115200

$0.11

11

Screw-Forming Hex.Hd.Fl.Bzn M5 X 20

250000992

$2.00

12

Tie Wrap 142 mm

293750002

$1.25

13

Tie-Rap 180 mm

414115200

$0.11

14

Throttle Cable

707000393

$13.24

15

Cable Guide

707000434

$11.60

16

CABLE LUBRICANT, 400 G - Call your local BRP dealership

293600041

Unavailable

17

Throttle Handle | 4X4

707000595

$214.99

18

Socket Head Screw M5 X 25

205052588

$1.90

19

SPEED LIMITER - Call your local BRP dealership | Europe

707000572

Unavailable

20

Loctite 243, 10 ml

293800060

$21.49

21

TORX SCREW M4 X 8 - Call your local BRP dealership | Europe

250000332

Unavailable

22

Vibration Damper

707001169

$42.99

23

ENGINE BRACKET - Call your local BRP dealership

707000802

Unavailable

24

ENGINE BRACKET - Call your local BRP dealership

707000803

Unavailable

25

Hex. Flange Screw M10 X 125

230602546

$7.41

26

Hex. Flange Elastic Nut M10

233201436

$2.11

27

Hex. Flange Screw M8 X 20

207682044

$1.15

28

Hex. Flange Elastic Nut M8

233281414

$1.47

29

Hex. Flange Screw M10 X 25

207602544

$1.69

30

Loctite 243, 10 ml

293800060

$21.49

31

UPPER ENGINE BRACKET, BLACK - Call your local BRP dealership

707000883

Unavailable

32

Rubber Isolator

707000949

$11.49

33

Flange Screw M8 x 10, Scotch Grip

207581046

$4.86

34

Hex. Elastic Stop Nut M8

232581414

$0.56

35

Flexibale Adaptor

707002585

$10.99

36

Norma Clamp

293650091

$11.12

37

Not Available As Spare Parts

XXX

Unavailable

38

AIR INLET - Call your local BRP dealership

707000777

$53.99

39

WATER DEFLECTOR - Call your local BRP dealership

707000778

Unavailable

40

Flat Washer 5 mm, Stainless

234052600

$0.77

41a

WATER DEFLECTOR - Call your local BRP dealership

707000779

Unavailable

41b

Not Available As Spare Parts

XXX

Unavailable

41c

Not Available As Spare Parts

XXX

Unavailable

42

Tuflok Plastic Rivet

293150230

$1.47

43

Hex. Flange Screw M6 X 25

207662544

$0.64

44

Flat Washer M6, Stainless

234062600

$0.77

45

Panel Nut M6 X 1.0

250100198

$2.11

46

Adaptor

707000789

$12.12

47

Norma Gear Clamp

293650118

$13.16

48

AIR OUTLET ASS'Y - Call your local BRP dealership

707000459

Unavailable

49

Panel Nut M6 X 1.0

250100198

$2.11

50

Hex. Flange Screw M6 X 16

210261650

$1.67
