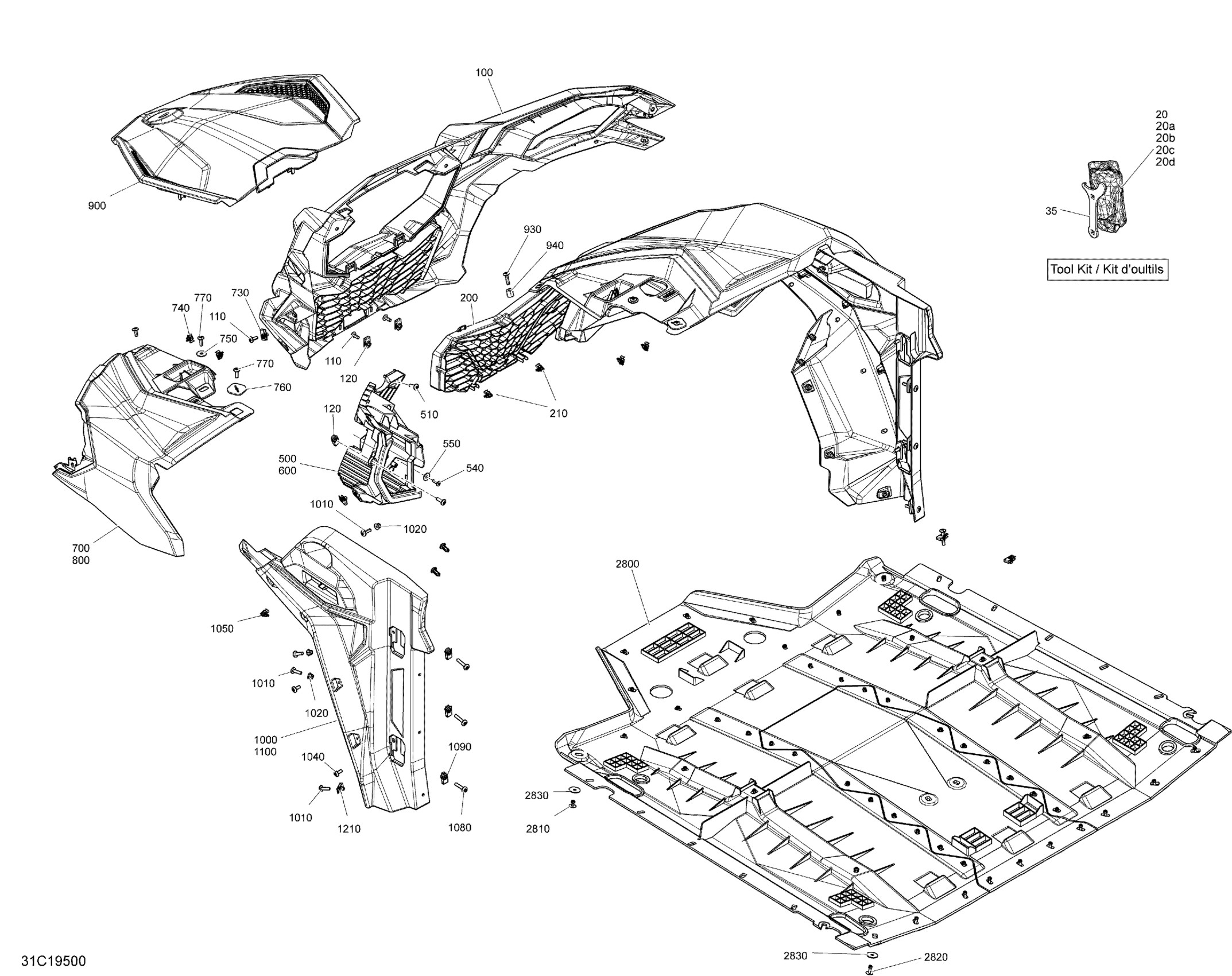

Can-Am 006 - Maverick Sport MAX 1000R - DPS - North America, 2019 09- Body - Front Parts - Red Diagram

Description

Price

Tool Kit | Includes 90 to 90k

704700169

$70.99

20a

Socket Wrench 14/16MM

529000085

$6.55

20b

Screw Driver

529000021

$3.29

20c

Driven Open Tool

529000088

$17.99

20d

Torx Key T30

708200340

$1.28

Adjustment Wrench

529000057

$4.29

100

Front Fascia

705011317

$269.99

110

Torx Truss Screw M6 X 16

250000721

$1.69

120

Panel Nut M6 X 1.0

250100198

$2.11

200

Fascia Removable Grid

705011318

$219.99

210

Clip

517306478

$1.09

500

LH Headlamp Structure

705011319

$229.99

510

Torx Screw M6 X 20

250000722

$1.68

540

Torx Screw K50 X 16

250000720

$1.69

550

Stainless Steel Flat Washer

234062670

$2.11

600

RH Headlamp Structure

705011320

$229.99

700

Red, LH Hood Ass'y | DPS, Red Model

705012411

$309.99

730

Panel Nut M6 X 1.0

250100198

$2.11

740

Clip

517306478

$1.09

750

Flat Washer M6.6 X 22

250200162

$2.32

760

Support Plate

705003841

$0.99

770

Torx Screw M6 X 20

250000722

$1.68

800

Red, RH Hood Ass'y | DPS, Red Model

705012412

$309.99

900

Removable Hood

705011322

$109.99

930

Torx Truss Screw M6 X 25

250000807

$2.11

940

Bushing

705502616

$10.49

1000

LH Front Mudguard

705011323

$56.99

1010

Torx Screw M6 X 20

250000712

$2.11

1020

Hex. Flange Elastic Nut M6

233261494

$1.58

1040

Torx Truss Screw M6 X 16

250000721

$1.69

1050

Clip

517306478

$1.09

1080

Torx Truss Hex. Screw M6X35, Nylon Patch

250000867

$2.11

1090

Panel Nut M6 X 1.0

250100198

$2.11

1100

RH Front Mudguard

705011324

$56.99

1210

Panel Nut M6 X 1.0

250100198

$2.11

2800

Kit Plate_Skid F

703501097

$169.49

2810

Pop Rivet 3/16”

293150087

$0.93

2820

Pop Rivet 3/16”

293150087

$0.93

2830

Washer

224060251

$0.58
