Description

Price

10

Frame Kit

715008534

$2,969.99

30

Deep Black, Front Cage Kit

715009358

$609.99

35

Deep Black, Rear Cage Kit

715009370

$619.99

37

Deep Black, Rear Cage Extension

705211125

$44.99

47

LH Front Bumper

705206303

$116.49

48

RH Front Bumper

705206308

$116.49

49

Cross Member

705206313

$39.99

50

Deep Black, Front Bumper

705209043

$457.49

52a>52b

Front Anchorage Ass'y

705211909

Unavailable

52b

Not Available As Spare Part - Friction Washer

Unavailable

54

Black, Rear Bumper Kit | Package XRC

715003683

$276.99

54a

Can Am Logo

704902307

$18.49

54b

Pop Rivet 1/8", Black

293150189

$0.27

54c

Shoulder Screw HEX. M8 X 25

229000147

$7.51

54d

Hex. Elastic Flange Nut M8

229000122

$1.26

55

Brake Support

705206217

$49.99

57

DPS Support

705206294

$71.99

60

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.69

65

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.69

70

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.69

75

Torx Truss Screw M8 X 16

250000746

$3.38

80

Hex Torx Truss M8 X30

250000745

$3.17

82

Bushing

705207229

$14.49

85

Hex. Flange Elastic Nut M8

233281414

$1.47

90

Hex. Flange Elastic Nut M8

233281414

$1.47

98

LH Male Door Hinge Ass'y | Includes 98 to 98d

705211564

$439.99

98a

LH Pivot Support

705207667

Unavailable

99

RH Hinge Ass'y Support | STRM

705207765

$269.99

99a

RH Pivot Support

705207668

Unavailable

110

RH Protector Tube

705206752

$46.49

110

RH Protector Tube (Sandtex Black)

705207629

$68.99

115

Bearing Support

705211563

$48.99

116

Hex. Flange Screw M8 X 25, Scotch Grip

207582544

$1.69

120

Central Tube

705209434

$159.99

125

Insert Half Hex Body M8 x 1.25

293450307

$2.69

130

Insert Half Hex Body M6 x 1.0

250100199

$3.19

135

Torx Truss M8 X 90

250000806

$7.51

140

Hex. Flange Nut M8

233181414

$1.15

145

Drawbar Ass'y | Includes 230 to 230c

705208230

$166.49

145a

Hitch Pin

705204490

$52.99

145b

Hitch Approval Decal

704906897

$19.99

1510

Hex. Flange Screw M10 X 35

250000855

$1.89

1520

Flange Elastic Nut M10

233201466

$3.17

1530

Hex. Flange Screw M10 X 70

207607056

$4.29

1550

Hex. Flange Screw M8 x 60

207686044

$3.07

1560

Sleeve

705210648

$9.90

1570

Hex. Flange Screw M8 X 30, Scotch Grip

207583044

$1.69

1580

Torx Head Screw M6 X 16

250000717

$2.11

1590

Stainless Steel Flat Washer

234062670

$2.11

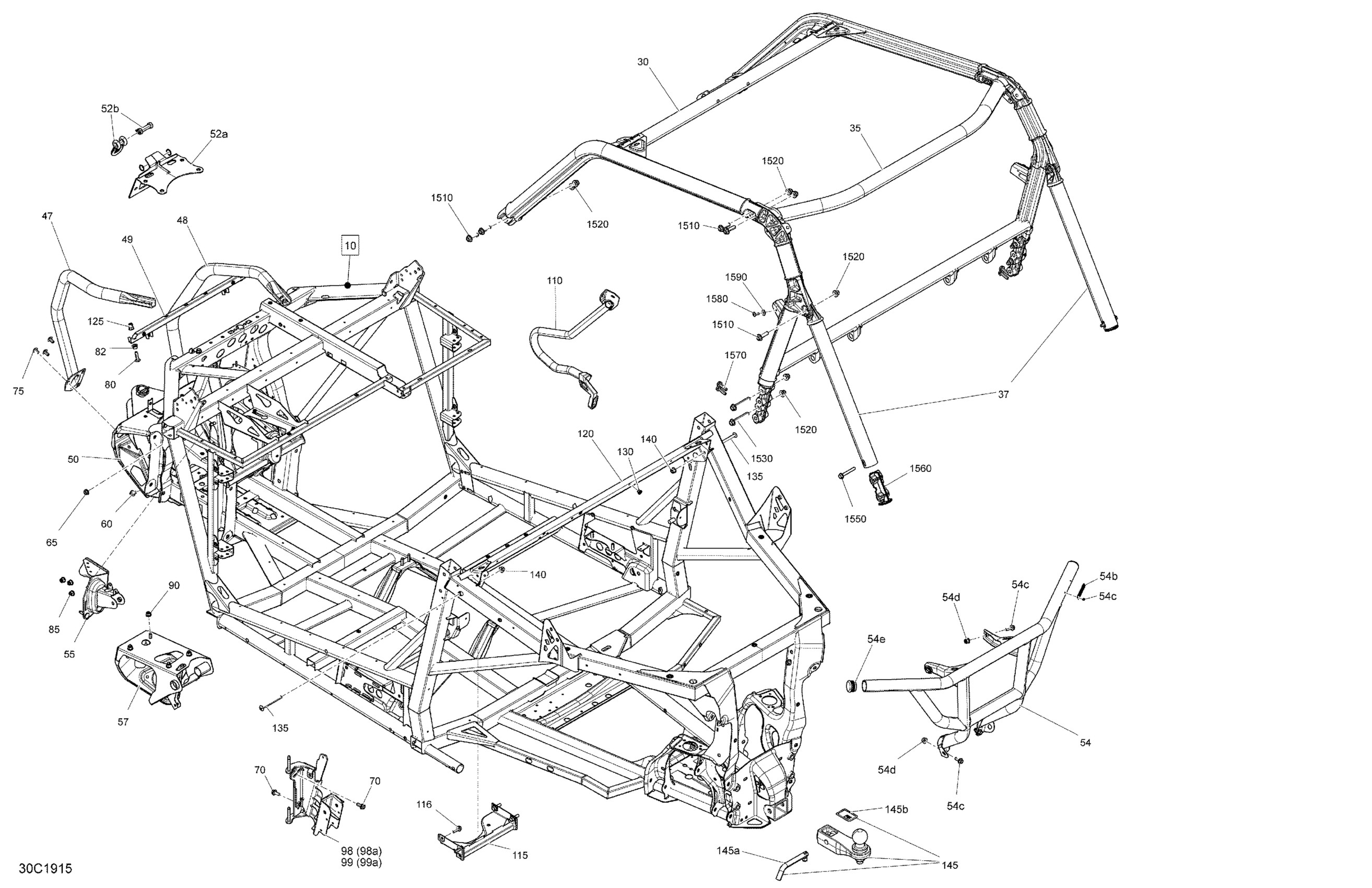

Can-Am 005 - Maverick Sport 1000R - XRC - North America, 2019 09- Frame - Packages XMR & XRC Diagram

Frame Kit

Deep Black, Front Cage Kit

Deep Black, Rear Cage Kit

Deep Black, Rear Cage Extension

LH Front Bumper

RH Front Bumper

Cross Member

Deep Black, Front Bumper

Front Anchorage Ass'y

Not Available As Spare Part - Friction Washer

Black, Rear Bumper Kit | Package XRC

Can Am Logo

Pop Rivet 1/8", Black

Shoulder Screw HEX. M8 X 25

Hex. Elastic Flange Nut M8

Brake Support

DPS Support

Hex. Flange Screw M8 X 20, Scotch Grip

Hex. Flange Screw M8 X 20, Scotch Grip

Hex. Flange Screw M8 X 20, Scotch Grip

Torx Truss Screw M8 X 16

Hex Torx Truss M8 X30

Bushing

Hex. Flange Elastic Nut M8

Hex. Flange Elastic Nut M8

LH Male Door Hinge Ass'y | Includes 98 to 98d

LH Pivot Support

RH Hinge Ass'y Support | STRM

RH Pivot Support

RH Protector Tube

RH Protector Tube (Sandtex Black)

Bearing Support

Hex. Flange Screw M8 X 25, Scotch Grip

Central Tube

Insert Half Hex Body M8 x 1.25

Insert Half Hex Body M6 x 1.0

Torx Truss M8 X 90

Hex. Flange Nut M8

Drawbar Ass'y | Includes 230 to 230c

Hitch Pin

Hitch Approval Decal

Hex. Flange Screw M10 X 35

Flange Elastic Nut M10

Hex. Flange Screw M10 X 70

Hex. Flange Screw M8 x 60

Sleeve

Hex. Flange Screw M8 X 30, Scotch Grip

Torx Head Screw M6 X 16

Stainless Steel Flat Washer
