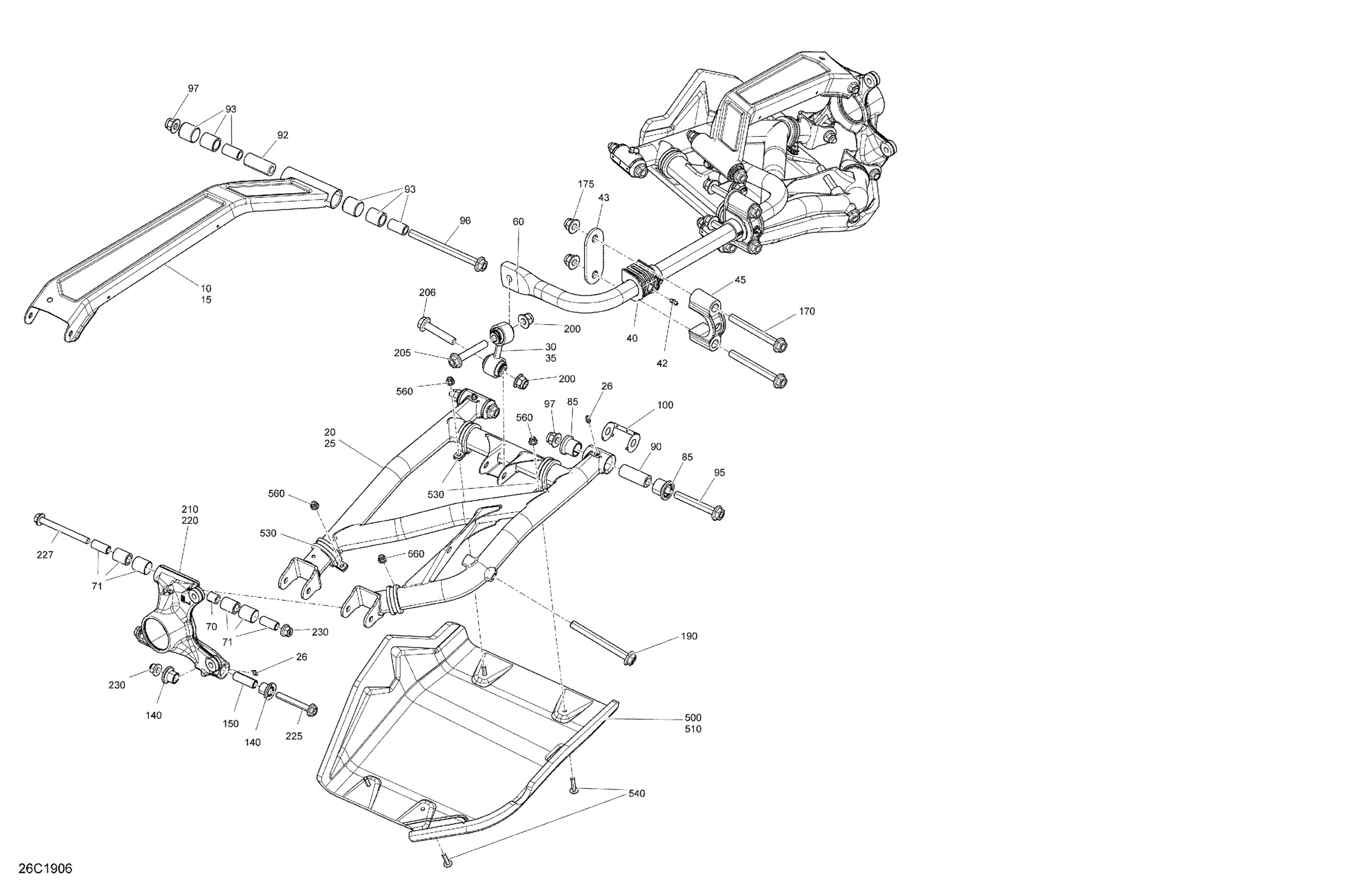

Can-Am 005 - Maverick Sport 1000R - XRC - North America, 2019 08- Rear Suspension - 1000R - Package XRC Diagram

Blue LH Rear Upper Susp Arm Ass'y

715006135

$190.99

Blue RH Rear Upper Susp Arm Ass'y

715006136

$190.99

LH Lower Suspension Arm

706003893

$190.99

RH Int. Suspension Arm

706003894

$190.99

Grease Fitting

408200700

$3.49

Sway Bar Double Link

706003004

$111.49

Sway Bar Double Link

706003003

$111.49

Stabilizer Bar Bushing

706004266

$8.43

Grease Fitting

408200700

$3.49

Plate Support

706002977

$5.09

Clamp

706002970

$16.49

Sway Bar Ass'y

706003475

$126.99

Not Available As Spare Part - Friction Washer

Unavailable

Not Available As Spare Part - Friction Washer

Unavailable

Suspension Arm Bushing

706204409

$9.10

Interior Bushing

706202257

$9.79

Not Available As Spare Part - Friction Washer

Unavailable

Not Available As Spare Part - Friction Washer

Unavailable

Flange Screw M12 X 85

250000859

$4.76

Flange Screw M12 X 145

250000861

$6.67

Elastic Flange Nut M12

233221466

$2.89

Wear Plate

706202300

$2.29

Suspension Arm Bushing Kit | Includes 4

703500875

$16.33

Suspension Arm Bushing Kit | Includes 4

703500875

$16.33

Screw Flange M12 X 115

250000860

$6.67

Elastic Flange Nut M12

233221466

$2.89

Screw Flange M12 X 115

250000860

$6.67

Elastic Flange Nut M12

233221466

$2.89

Hex. Flange Screw M12 X 70

250000858

$3.80

Flange Screw M12 X 60

250000857

$7.41

LH Rear Knuckle Ass'y | Incl 70, 71

715006137

$116.49

RH Rear Knuckle Ass'y | Incl 70, 71

715006138

$116.49

Hex. Flange Screw M10 X 70

207607046

$2.96

Hex Flange Screw DIN.6921 - Call your local BRP dealership

230600046

$3.17

Hex. Flange Elastic Nut M10

233201436

$2.11

LH Rear Arm Protector

706003359

$110.99

RH Rear Arm Protector

706003360

$110.99

Open Clamp

293850121

$14.83

Torx Screw M6 X 25

250000758

$2.11

Hex. Flange Elastic Nut M6

233261494

$1.58
