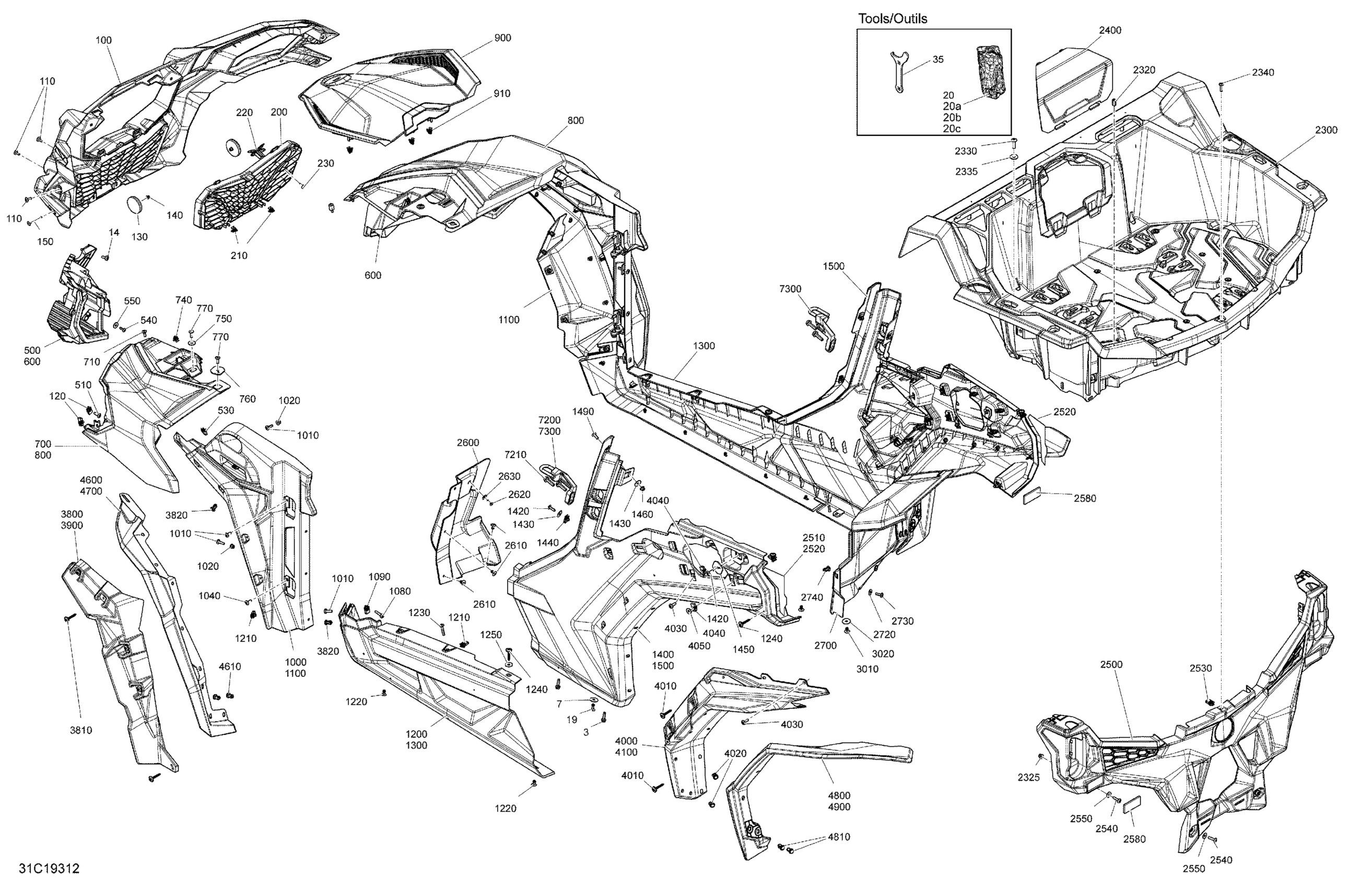

Can-Am 004 - Maverick Sport 1000R - XMR - North America, 2019 09- Body - Package XMR Diagram

#

Description
Price

20

Tool Kit | Includes 90 to 90k

704700169

$70.99

20a

Socket Wrench 14/16MM

529000085

$6.55

20b

Driven Open Tool

529000088

$17.99

20c

Torx Key T30

708200340

$1.28

35

Adjustment Wrench

529000057

$4.29

100

Front Fascia

705011317

$269.99

110

Torx Truss Screw M6 X 16

250000721

$1.69

120

Panel Nut M6 X 1.0

250100198

$2.11

130

Amber Reflector | Except Europe Model

705011222

$14.49

140

Elastic Flange Nut M5

233251494

$2.11

150

Torx Screw M6 X 45

250000748

$1.90

200

Fascia Removable Grid

705011318

$219.99

210

Clip

517306478

$1.09

220

Grille Logo

705012245

$12.99

230

Screw M4 X 16

250000725

$3.49

500

LH Headlamp Structure

705011319

$229.99

510

Torx Screw M6 X 20

250000722

$1.68

530

Panel Nut M6 X 1.0

250100198

$2.11

540

Torx Screw K50 X 16

250000720

$1.69

550

Stainless Steel Flat Washer

234062670

$2.11

600

RH Headlamp Structure

705011320

$229.99

700

Yellow, LH Hood Ass'y | Package DPS

705012413

$309.99

710

Torx Truss Screw M6 X 16

250000721

$1.69

740

Clip

517306478

$1.09

750

Flat Washer M6.6 X 22

250200162

$2.32

760

Support Plate

705003841

$0.99

770

Torx Screw M6 X 20

250000722

$1.68

800

Yellow, RH Hood Ass'y | Package DPS

705012414

$309.99

900

Removable Hood

705011322

$109.99

910

Clip

517306478

$1.09

1000

LH Front Mudguard

705011323

$56.99

1010

Torx Screw M6 X 20

250000712

$2.11

1020

Hex. Flange Elastic Nut M6

233261494

$1.58

1040

Torx Truss Screw M6 X 16

250000721

$1.69

1080

Torx Truss Hex. Screw M6X35, Nylon Patch

250000867

$2.11

1090

Panel Nut M6 X 1.0

250100198

$2.11

1100

RH Front Mudguard

705011324

$56.99

1200

LH Rocker Panel

705011331

$79.99

1210

Panel Nut M6 X 1.0

250100198

$2.11

1220

Pop Rivet 3/16”

293150108

$1.19

1230

Torx Truss Hex. Screw M6X35, Nylon Patch

250000867

$2.11

1240

Torx Truss Screw Head PT.K50 X 40

250000840

$1.90

1250

Flat Washer M6.6 X 22

250200162

$2.32

1300

RH Rocker Panel

705011332

$77.49

1400

LH Rear Panel

705011335

$204.99

1420

Torx Screw M6 X 20

250000722

$1.68

1430

Flat Washer M6.6 X 22

250200162

$2.32

1440

Panel Nut M6 X 1.0

250100198

$2.11

1450

Support Plate

705003841

$0.99

1460

Hex. Elastic Flange Nut M6

233161464

$1.01

1490

Torx Screw M6 X 20

250000722

$1.68

1500

RH Rear Panel

705011336

$204.99

2300

Rear Box

705016885

$399.99

2320

Hex. Coupling Nut M6

250100207

$2.00

2325

Hex. Flange Elastic Nut M6

233261466

$2.00

2330

Hex Torx Truss M8 X30

250000745

$3.17

2335

Stainless Steel Flat Washer

234082670

$2.11

2340

Torx Truss Screw M6 X 25

250000807

$2.11

2400

Access Cover Kit

715006766

$27.99

2500

Rear Fascia

705011426

$169.99

2510

LH Rear Reflector

704906815

$14.49

2520

RH Rear Reflector

704906816

$13.49

2530

Panel Nut M6 X 1.0

250100198

$2.11

2540

Torx Truss Screw M6 X 25

250000807

$2.11

2550

Stainless Steel Flat Washer

234062670

$2.11

2580

Red Reflector

520001820

$20.99

2600

LH Rear Wheel Arch Protector

705014231

$41.49

2610

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

2620

Torx Screw K50 X 16

250000720

$1.69

2630

Washer M5

250200025

$0.74

2700

RH Rear Inner Fender

705011513

$41.49

2720

Stainless Steel Flat Washer

234062670

$2.11

2730

Torx Screw M6 X 20

250000722

$1.68

2740

Tuflok Plastic Rivet

293150230

$1.47

3010

Pop Rivet 3/16”

293150087

$0.93

3020

Washer

224060251

$0.58

3800

LH Front 60" Mud Guard Extension

705011325

$56.99

3810

Torx Truss Screw Head PT.K50 X 40

250000840

$1.90

3820

Tuflok Plastic Rivet

293150230

$1.47

3900

RH Front 60" Mudguard Extension

705011326

$56.99

4000

LH Rear Mud Guard

705012097

$56.99

4010

Torx Truss Screw Head PT.K50 X 40

250000840

$1.90

4020

Tuflok Plastic Rivet

293150230

$1.47

4030

Torx Screw M6 X 20

250000722

$1.68

4050

Stainless Steel Flat Washer

234062670

$2.11

4100

RH Rear 60" Mud Guard Extension

705012098

$56.99

4600

LH Front Fender Extender

705012762

$45.99

4610

Tuflok Plastic Rivet

293150230

$1.47

4700

RH Front Fender Extender

705012763

$24.99

4800

LH Rear Fender Extender

705012764

$47.99

4810

Tuflok Plastic Rivet

293150230

$1.47

4900

RH Rear Fender Extender

705012765

$47.99

7200

LH Stricker Support

705207027

$26.99

7210

Hex. Flange Screw M8 X 30, Scotch Grip

207583044

$1.69

7300

RH Stricker Support

705207028

$26.99
