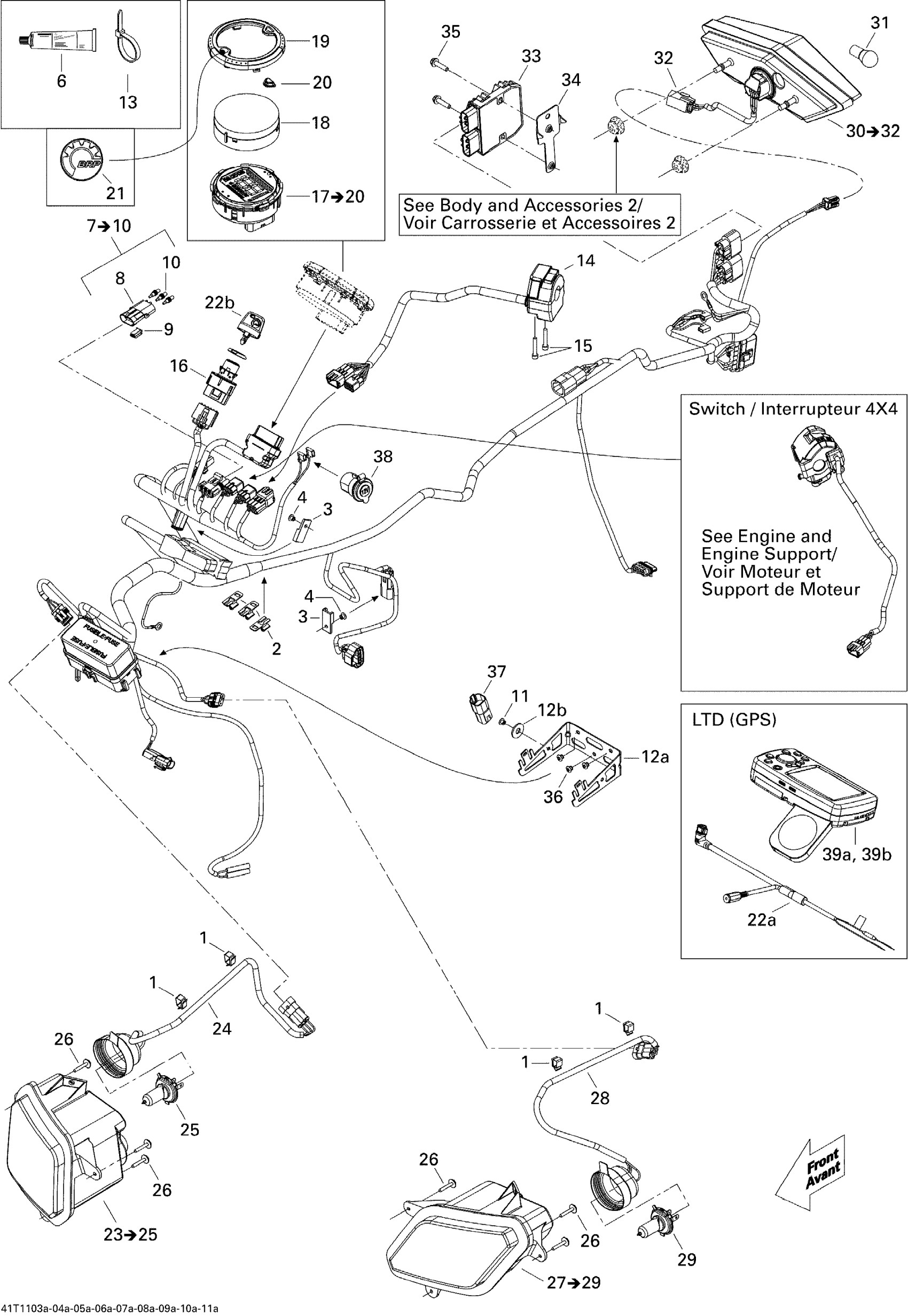

Can-Am Outlander 500 EFI, 2011 10- Electrical Accessories 1 Diagram

#

Description
Price

1

Clip

414227300

$1.67

2

Housing Support

515175283

$9.19

3

Clip

270000141

$11.49

4

Pop Rivet 3/16"

390402400

$0.35

6

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

7

Connector Ass'y | STD / Includes 7 to 10

710000917

$12.71

7

Connector Ass'y | XT, Includes 55 to 57

710001059

$9.10

8

Female Terminal Housing, 3 Circuits | XT Models

278000281

$9.85

9

Clip

710000992

$4.29

10

Wire Seal

278000216

$3.19

11

Pop Rivet 3/16"

390402300

$0.75

12a

FUSE SUPPORT - Call your local BRP dealership

710002176

Unavailable

12b

Washer

517124300

$0.19

13

Tie Wrap 368 mm

293750008

$1.04

13

Tie Wrap 94 mm | 4X4

293750001

$1.03

13

Tie-Rap 173 mm

293750009

$1.04

14

Multi-Fonction Handle

710000791

$116.49

14

Multi-fonction Handle | Except Europe, XT, XTP

710001594

$121.99

14

Multi-Function Handle

710004040

$179.99

15

Socket Head Screw M5 X 35

205053588

$1.90

16

Ignition Switch | Includes 16 to 17

710002324

$79.49

17

Speedometer Ass'y | Includes 18 to 21

710003100

$539.99

18

Lens

415129320

$24.49

19

Trim Ring

710001416

$23.99

20

Button

710001473

$13.71

21

BRP Logo13 mm

704904615

$13.49

22a

Not Available As Spare Parts

XXX

Unavailable

22b

Black, Electronic Key

710000817

$63.49

23

RH Headlamp Ass'y | Includes 11 to 13

710000861

$134.99

23

RH Headlamp Ass'y | Includes 20 to 22

710001496

$89.99

24

LIGHT HARNESS - Call your local BRP dealership

710000828

Unavailable

25

Bulb, 12V 35/35W

710000871

$34.99

26

Plastite Screw Type K-40, M4 X 25

250000101

$3.49

27

LH Headlamp Ass'y | Includes 14 to 16

710000862

$134.99

27

LH Headlamp Ass'y | Includes 24 to 26

710001497

$89.99

28

LIGHT HARNESS - Call your local BRP dealership

710000828

Unavailable

29

Bulb, 12V 35/35W

710000871

$34.99

30

Tail Light Housing Ass'y | Includes 29 to 31

710001203

$74.99

30

Tail Light Housing Ass'y | Includes 17 to 19

710001204

$56.99

31

Bulb

520000758

$9.10

32

Male Housing, 3 Circuits

515175494

$16.18

33

Voltage Regulator | For replacement, refer to service bulletin 2005-5

710001103

$142.99

33

Voltage Regulator | XT, XTP, LTD

710001191

$185.49

34

RECTIFIER SUPPORT - Call your local BRP dealership

710001262

Unavailable

34

RECTIFIER SUPPORT - Call your local BRP dealership | XT, XTP, LTD

710001572

Unavailable

35

Hex. Flange Forming Screw M6 X 25

210262580

$1.90

35

Hex. Flange Screw M6 X 16

207661644

$0.74

36

Pop Rivet 3/16"

390402400

$0.35

37

Diagnostic Connector

278002704

$19.49

38

DC Outlet

710001248

$37.99

39a

Not Available As Spare Parts

XXX

Unavailable

39b

Not Available As Spare Parts

XXX

Unavailable
