Description

Price

10

Operator Guide 2019 English

219001967

Unavailable

20

Tool Kit | Includes 90 to 90k

704700169

$70.99

20a

Socket Wrench 14/16MM

529000085

$6.55

20b

Driven Open Tool

529000088

$17.99

20c

Torx Key T30

708200340

$1.28

35

Adjustment Wrench

529000057

$4.29

40

Waranty Registration Form

219400038

Unavailable

100

Front Fascia

705011317

$269.99

110

Torx Truss Screw M6 X 16

250000721

$1.69

120

Panel Nut M6 X 1.0

250100198

$2.11

130

Amber Reflector | Except Europe Model

705011222

$14.49

140

Elastic Flange Nut M5

233251494

$2.11

150

Torx Screw M6 X 45

250000748

$1.90

200

Fascia Removable Grid

705011318

$219.99

210

Clip

517306478

$1.09

500

LH Headlamp Structure

705011319

$229.99

510

Torx Screw M6 X 20

250000722

$1.68

530

Panel Nut M6 X 1.0

250100198

$2.11

540

Torx Screw K50 X 16

250000720

$1.69

550

Stainless Steel Flat Washer

234062670

$2.11

600

RH Headlamp Structure

705011320

$229.99

700

White, LH Hood Ass'y | Package Base

705011327

$204.99

700

Red, LH Hood Ass'y | DPS, Red Model

705012411

$309.99

710

Torx Truss Screw M6 X 16

250000721

$1.69

730

Panel Nut M6 X 1.0

250100198

$2.11

740

Clip

517306478

$1.09

750

Flat Washer M6.6 X 22

250200162

$2.32

760

Support Plate

705003841

$0.99

770

Torx Screw M6 X 20

250000722

$1.68

800

White, RH Hood Ass'y | Package Base

705011328

$204.99

800

Red, RH Hood Ass'y | DPS, Red Model

705012412

$309.99

900

Removable Hood

705011322

$109.99

910

Clip

517306478

$1.09

930

Torx Truss Screw M6 X 25

250000807

$2.11

940

Bushing

705502616

$10.49

1000

LH Front Mudguard

705011323

$56.99

1010

Torx Screw M6 X 20

250000712

$2.11

1020

Hex. Flange Elastic Nut M6

233261494

$1.58

1040

Torx Truss Screw M6 X 16

250000721

$1.69

1050

Clip

517306478

$1.09

1070

Tuflok Plastic Rivet

293150230

$1.47

1080

Torx Truss Hex. Screw M6X35, Nylon Patch

250000867

$2.11

1090

Panel Nut M6 X 1.0

250100198

$2.11

1100

RH Front Mudguard

705011324

$56.99

1210

Panel Nut M6 X 1.0

250100198

$2.11

3800

LH Front 60" Mud Guard Extension

705011325

$56.99

3810

Torx Truss Screw Head PT.K50 X 40

250000840

$1.90

3820

Tuflok Plastic Rivet

293150230

$1.47

3900

RH Front 60" Mudguard Extension

705011326

$56.99

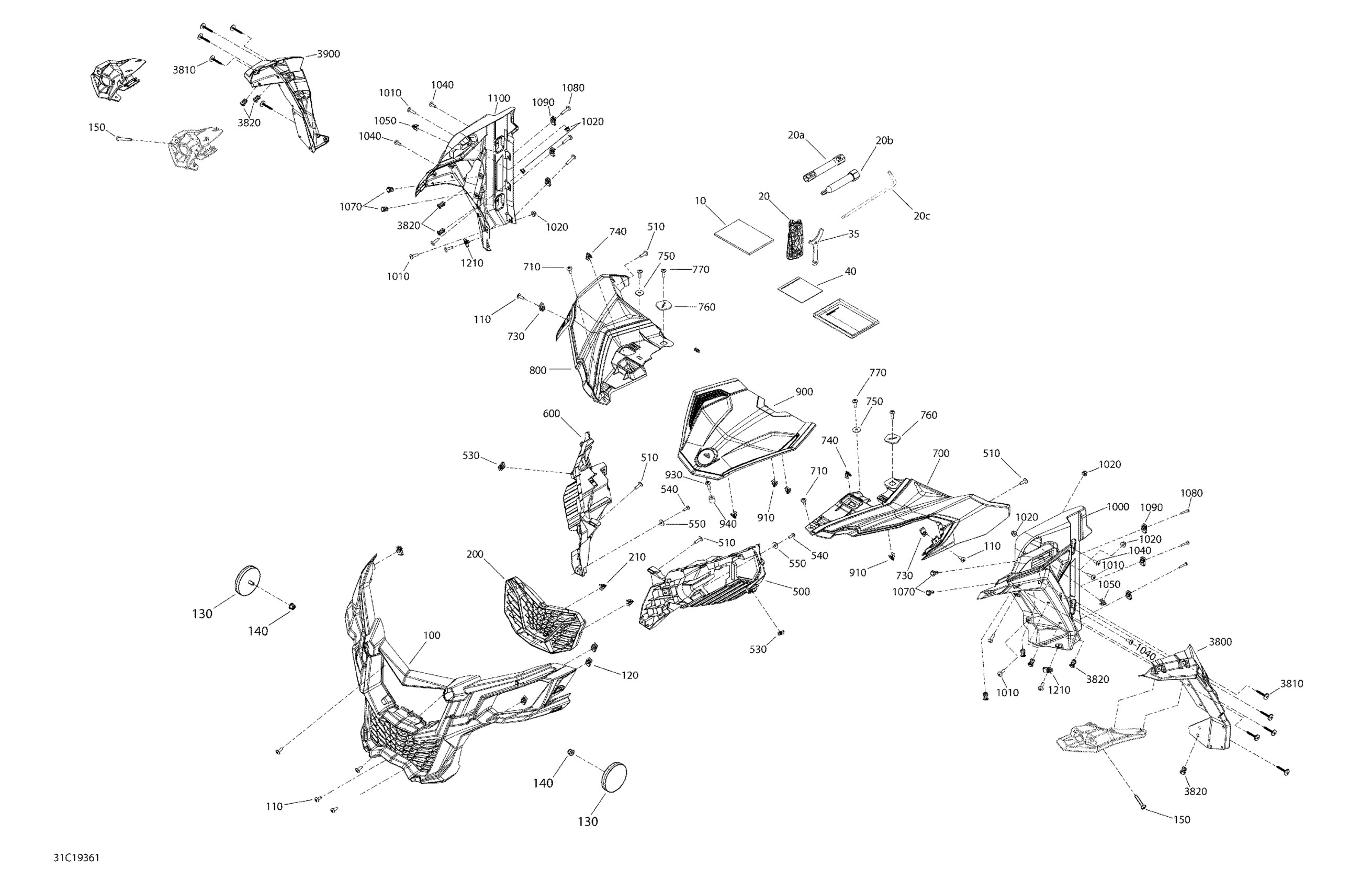

Can-Am 001 - Maverick Sport 1000 - BASE_DPS - North America, 2019 09- Body - 1000 - Front Section Diagram

Operator Guide 2019 English

Tool Kit | Includes 90 to 90k

Socket Wrench 14/16MM

Driven Open Tool

Torx Key T30

Adjustment Wrench

Waranty Registration Form

Front Fascia

Torx Truss Screw M6 X 16

Panel Nut M6 X 1.0

Amber Reflector | Except Europe Model

Elastic Flange Nut M5

Torx Screw M6 X 45

Fascia Removable Grid

Clip

LH Headlamp Structure

Torx Screw M6 X 20

Panel Nut M6 X 1.0

Torx Screw K50 X 16

Stainless Steel Flat Washer

RH Headlamp Structure

White, LH Hood Ass'y | Package Base

Red, LH Hood Ass'y | DPS, Red Model

Torx Truss Screw M6 X 16

Panel Nut M6 X 1.0

Clip

Flat Washer M6.6 X 22

Support Plate

Torx Screw M6 X 20

White, RH Hood Ass'y | Package Base

Red, RH Hood Ass'y | DPS, Red Model

Removable Hood

Clip

Torx Truss Screw M6 X 25

Bushing

LH Front Mudguard

Torx Screw M6 X 20

Hex. Flange Elastic Nut M6

Torx Truss Screw M6 X 16

Clip

Tuflok Plastic Rivet

Torx Truss Hex. Screw M6X35, Nylon Patch

Panel Nut M6 X 1.0

RH Front Mudguard

Panel Nut M6 X 1.0

LH Front 60" Mud Guard Extension

Torx Truss Screw Head PT.K50 X 40

Tuflok Plastic Rivet

RH Front 60" Mudguard Extension
