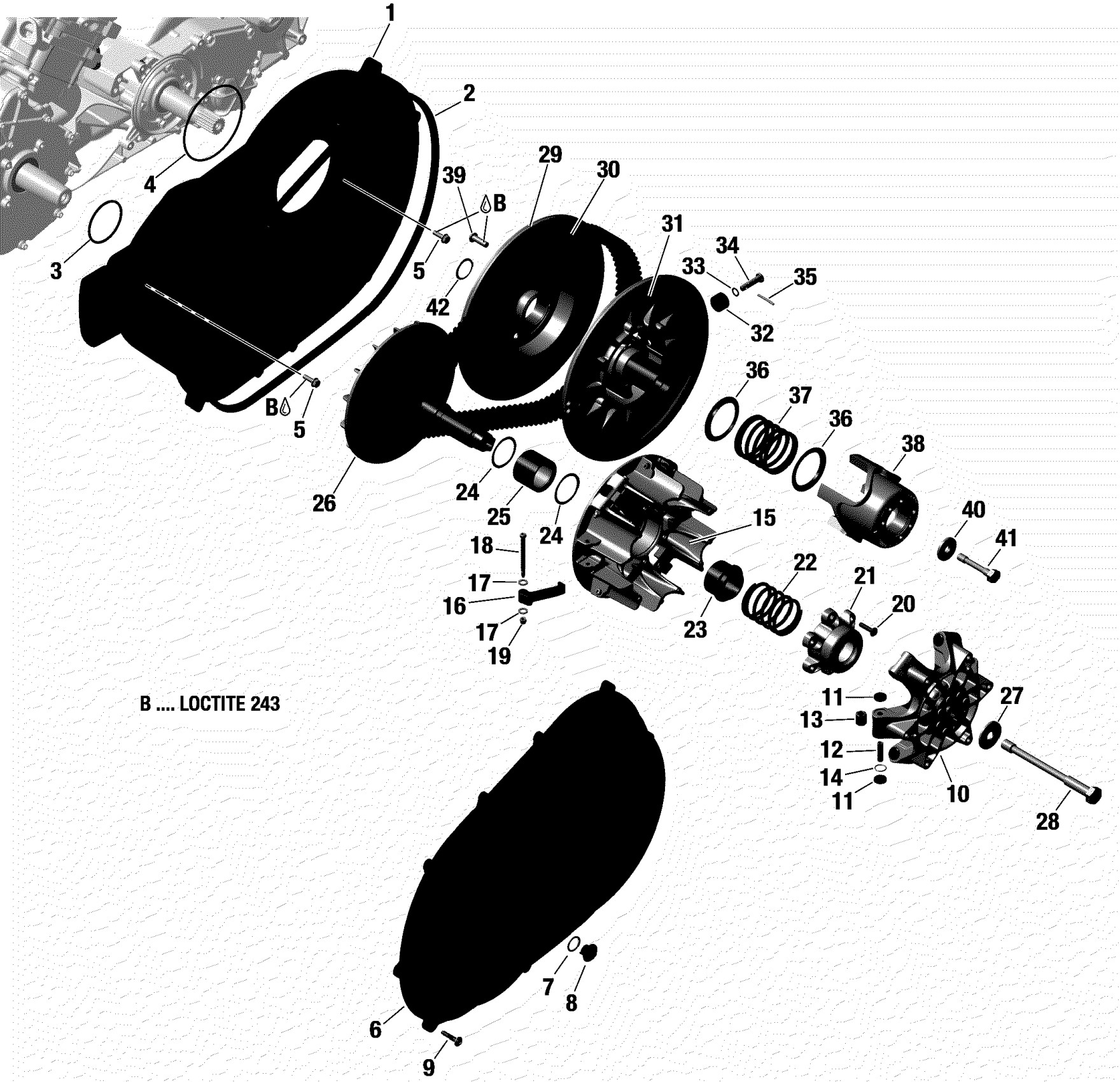

Can-Am 001 - Maverick Sport 1000 - BASE_DPS - North America, 2019 05- Transmission Diagram

#

Description
Price

1

CVT Air Guide

420212604

$224.99

2

Gasket

420450400

$31.99

3

O-Ring

420430408

$5.29

4

O-Ring

420450431

$5.29

5

Hex.Screw M6 X 20

420441311

$5.18

6

Variator Cover

420212500

$200.99

7

O-Ring

420250050

$10.43

8

Cap

420441820

$11.63

9

Torx Screw 6X30

420441575

$3.06

10

Governor Cup Ass'y

420280727

$439.99

11

Slider Shoe Set

420281296

$65.49

12

Roller Axle

417223257

$6.99

13

Roller Thrust

420229991

$19.99

14

O-Ring

420230456

$2.09

15

Outer Half Ass'y

420280608

$296.99

16>19

Centrifugal Lever Kit | Includes no. 16-19

420248684

$238.49

16

Not Available As Spare Part - Friction Washer

Unavailable

17

Not Available As Spare Part - Friction Washer

Unavailable

18

Not Available As Spare Part - Friction Washer

Unavailable

19

Not Available As Spare Part - Friction Washer

Unavailable

20

Torx Flange Screw M6 X 25

420841549

$2.00

21

Bearing Cover

420280616

$69.99

22

Compression Spring

420638119

$35.99

23

Spring Retainer

420427211

$46.49

24

Washer

420427220

$4.86

25

Needle Roller Bearing With Sleeves

420832351

$49.99

26

Inner Half Ass'y

420280597

$328.49

27

Washer

420245690

$4.86

28

Hexagonal Screw M14X 165

420841161

$29.49

29

Inner Half Ass'y

420280635

$179.99

30

Drive Belt

417300551

$179.99

31

Outer Half Ass'y

420280627

$369.99

32

Pulley Roller

417127016

$24.49

33

Lock Washer 8 mm

250200009

$2.11

34

Pivot Stud

417127294

$14.49

35

Dowel Pin

420629200

$2.51

36

Swivel Abutment

417127116

$9.39

37

Spring

417127061

$46.49

38

Cam

420280647

$185.49

39

Binding Head Screw M8X25

420441981

$17.04

40

Collar Washer

420427243

$16.40

41

Hexagonal Screw M10X 61

420441990

$19.49

42

Distance Ring

420647263

$27.99
