Description

Price

10>10c

Black Frame Kit | Includes 10 to 10c

715005783

Unavailable

10a>10a2

Black Cage Kit | Except XRSDPS Package, Liquid Gold. Upper Section Only

715004371

Unavailable

10>10c

Hyper Silver Frame Kit | Includes 10a to 10a2

715005781

Unavailable

10a>10a2

Hyper Silver Cage Kit | Includes 10a to 10a2

715005721

Unavailable

10a1

Hex. Flange Elastic Nut M12

233221414

$7.69

10a2

Hex. Flange Screw S.Grip M12 X 30

207523036

$7.19

10b

Hexagonal Nut

233701400

$0.58

10c

Pop Rivet 3/16"

390402200

$0.35

10d

Weld Pin 8mm X 40mm

250000913

$2.00

20

Front Plate

705207424

$22.99

25

Flange Screw M6 X 10, Scotch Grip

207561044

$7.19

30

Insert Half Hex Body M6 x 1.0

250100199

$3.19

35

Bumper Link

705206992

$18.49

36

Flange Screw M12 X 60

250000857

$7.41

37

Flange Screw M10 X 16, Scotch Grip | 4X4

250000060

$3.70

40

Deep Black, Front Bumper | Except Model Gold

705210400

$103.99

40

Hyper Silver, Front Bumper | Packages XRS

705207305

$116.49

40

YELLOW FRONT XRC BUMPER KIT - Call your local BRP dealership | Includes 40 to 40a

715004741

Unavailable

40a

Pop Rivet 3/16"

390402200

$0.35

41

Front Master Plate

705206871

$103.99

42

Panel Nut M6 X 1.0

250100198

$2.11

43

Torx Screw M6 X 20

250000722

$1.68

44

Cap

705202455

$5.69

48

U-Clamp

705206983

$37.99

49

Hex. Flange Elastic Nut M10

233201436

$2.11

50

LH Added Cage | Except XRSDPS Package, Liquid Gold

705206251

$91.99

50

Hyper Silver, LH Added Cage | Hyper Silver

705207366

$91.99

50

Sunburst Yellow, LH Added Cage | Package XMR

705207364

Unavailable

50a

Pop Rivet 3/16"

390402200

$0.35

60

Deep Black, RH Reinforcement Cage | Includes 60 to 60a1j

705210079

$91.99

60

Hyper Silver, RH Added Cage | Hyper Silver

705207367

$91.99

60

Sunburst Yellow, RH Added Cage | Package XMR

705207365

Unavailable

60a

Pop Rivet 3/16"

390402200

$0.35

63

Elastic Flange Nut M12

233221466

$2.89

64

Hex. Flange Screw DIN.6921 M12X25

250000856

$6.67

65

Deep Black, LH Cage Reinforcement

705211746

$58.99

66

Deep Black, RH Cage Reinforcement

705211747

$58.99

67

Torx Head Screw M6 X 16

250000717

$2.11

68

Hex. Flange Elastic Nut M6

233261494

$1.58

70

DPS Support

705206924

$71.99

71

Hex. Flange Screw M8 X 12, Scotch Grip

207581244

$1.15

72

Hex. Flange Elastic Nut M8

233281414

$1.47

80

Rear Upper Plate

705206852

$22.99

90

Stifner Plate

705206877

$30.99

91

Hex. Flange Screw M6 X 16

207661654

$2.11

92

Hex. Flange Elastic Nut M6

233261494

$1.58

100

Rear Central Plate

705211558

$20.99

110

Rear Plate

705206854

$22.99

200

Black, LH Link Plate | Except Model Gold

705205926

$25.99

200

Link Plate

705206651

$25.99

200

Link Plate | SunBurst Yellow

705207308

$25.99

210

Rivet 3/16"

293150102

$0.70

310

Rear Plate

705205750

$25.99

320

Black, Rear Attachement Hook

715004450

$85.99

330

Deep Black, Rear Pillar

705210066

$24.99

330

Rear C-Member

705206649

$24.99

330

Hyper Silver, Rear Mount | SunBurst Yellow

705207382

$24.99

331

Torx Truss M8 X 65

250000901

$1.90

332

Elastic Flange Nut M8

250100025

$1.48

333

Sleeve

705210648

$9.90

340

Belt Bar

705205268

$129.99

341

Elastic Stop Nut M12

232521416

$1.69

350

Connecting Plate

705211552

$5.39

360

Retaining Plate

705210249

$5.29

365

Front Plate | Package STD

705207438

$2.69

370

Support

706203122

$14.49

371

Pop Rivet 3/16"

390402200

$0.35

380

Front Upper Plate

705206069

$15.99

390

Rear Upper Plate | Model XRSDPS

705206511

$15.99

1501

Elastic Flange Nut M12

233221466

$2.89

1520

Hex. Flange Screw DIN.6921 M12X25

250000856

$6.67

1530

Deep Black, LH Cage Reinforcement

705211746

$58.99

1540

Deep Black, RH Cage Reinforcement

705211747

$58.99

1550

Torx Head Screw M6 X 16

250000717

$2.11

1560

Hex. Flange Elastic Nut M6

233261466

$2.00

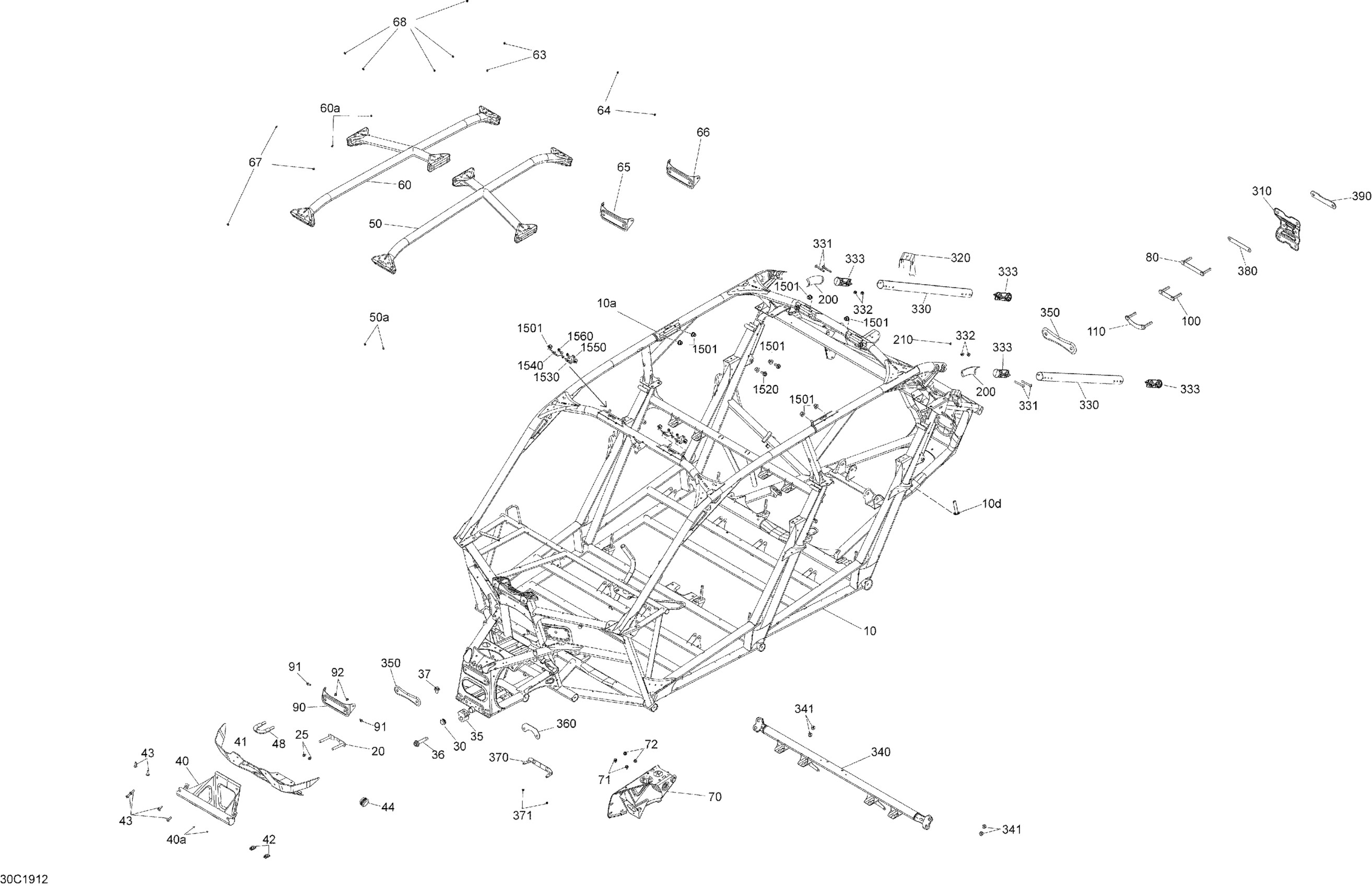

Can-Am 006 - Maverick MAX Turbo - North America, 2019 09- Frame Diagram

Black Frame Kit | Includes 10 to 10c

Black Cage Kit | Except XRSDPS Package, Liquid Gold. Upper Section Only

Hyper Silver Frame Kit | Includes 10a to 10a2

Hyper Silver Cage Kit | Includes 10a to 10a2

Hex. Flange Elastic Nut M12

Hex. Flange Screw S.Grip M12 X 30

Hexagonal Nut

Pop Rivet 3/16"

Weld Pin 8mm X 40mm

Front Plate

Flange Screw M6 X 10, Scotch Grip

Insert Half Hex Body M6 x 1.0

Bumper Link

Flange Screw M12 X 60

Flange Screw M10 X 16, Scotch Grip | 4X4

Deep Black, Front Bumper | Except Model Gold

Hyper Silver, Front Bumper | Packages XRS

YELLOW FRONT XRC BUMPER KIT - Call your local BRP dealership | Includes 40 to 40a

Pop Rivet 3/16"

Front Master Plate

Panel Nut M6 X 1.0

Torx Screw M6 X 20

Cap

U-Clamp

Hex. Flange Elastic Nut M10

LH Added Cage | Except XRSDPS Package, Liquid Gold

Hyper Silver, LH Added Cage | Hyper Silver

Sunburst Yellow, LH Added Cage | Package XMR

Pop Rivet 3/16"

Deep Black, RH Reinforcement Cage | Includes 60 to 60a1j

Hyper Silver, RH Added Cage | Hyper Silver

Sunburst Yellow, RH Added Cage | Package XMR

Pop Rivet 3/16"

Elastic Flange Nut M12

Hex. Flange Screw DIN.6921 M12X25

Deep Black, LH Cage Reinforcement

Deep Black, RH Cage Reinforcement

Torx Head Screw M6 X 16

Hex. Flange Elastic Nut M6

DPS Support

Hex. Flange Screw M8 X 12, Scotch Grip

Hex. Flange Elastic Nut M8

Rear Upper Plate

Stifner Plate

Hex. Flange Screw M6 X 16

Hex. Flange Elastic Nut M6

Rear Central Plate

Rear Plate

Black, LH Link Plate | Except Model Gold

Link Plate

Link Plate | SunBurst Yellow

Rivet 3/16"

Rear Plate

Black, Rear Attachement Hook

Deep Black, Rear Pillar

Rear C-Member

Hyper Silver, Rear Mount | SunBurst Yellow

Torx Truss M8 X 65

Elastic Flange Nut M8

Sleeve

Belt Bar

Elastic Stop Nut M12

Connecting Plate

Retaining Plate

Front Plate | Package STD

Support

Pop Rivet 3/16"

Front Upper Plate

Rear Upper Plate | Model XRSDPS

Elastic Flange Nut M12

Hex. Flange Screw DIN.6921 M12X25

Deep Black, LH Cage Reinforcement

Deep Black, RH Cage Reinforcement

Torx Head Screw M6 X 16

Hex. Flange Elastic Nut M6
