Description

Price

210

Clip

705010721

$2.61

2500

Carbon Black, LH Front Door Panel

705014333

$204.99

2510

Deep Black, LH Front Door

705018468

$159.99

2520

Door Support

705011187

$12.99

2525

Hex Screw Washer Head M8 X 20

207582054

$3.17

2526

Flat Washer M8

234081430

$2.11

2530

Flat Washer 8 mm, Nylon

234081100

$1.39

2540

LH Latch

705013095

$43.99

2550

Belt

293850135

$14.99

2551

Pop Rivet 3/16"

293150103

$0.55

2552

Bushing | DS 650 X

293900104

$5.50

2570

LH Latch Cover

705013535

$39.99

2580

Panel Nut M6 X 1.0

250100198

$2.11

2585

Torx Truss Screw M6 X 16

250000721

$1.69

2586

Stainless Steel Flat Washer

234062670

$2.11

2590

Pop Rivet 3/16"

293150103

$0.55

2610

Panel Nut M6 X 1.0

250100198

$2.11

2620

Torx Screw M6 X 20

250000722

$1.68

2630

Flat Washer

224061121

$0.53

2640

Door Belt

293850129

$16.49

2650

Pop Rivet 3/16"

293150103

$0.55

2700

LH Lower Door Panel

705010732

$58.99

2710

Torx Truss Screw M6 X 50

250000749

$3.17

2720

Stainless Steel Flat Washer

234062670

$2.11

2730

Hex. Flange Elastic Nut M6

233261466

$2.00

2800

Carbon Black, RH Front Door Panel

705014339

$204.99

2810

Deep Black, RH Front Door

705018470

$159.99

2820

Door Support

705011187

$12.99

2825

Hex Screw Washer Head M8 X 20

207582054

$3.17

2826

Flat Washer M8

234081430

$2.11

2830

Flat Washer 8 mm, Nylon

234081100

$1.39

2840

RH Latch

705013096

$43.99

2850

Belt

293850135

$14.99

2851

Pop Rivet 3/16"

293150103

$0.55

2852

Bushing | DS 650 X

293900104

$5.50

2870

RH Latch Cover

705013536

$39.99

2880

Panel Nut M6 X 1.0

250100198

$2.11

2885

Torx Truss Screw M6 X 16

250000721

$1.69

2886

Stainless Steel Flat Washer

234062670

$2.11

2890

Pop Rivet 3/16"

293150103

$0.55

2910

Panel Nut M6 X 1.0

250100198

$2.11

2920

Torx Screw M6 X 20

250000722

$1.68

2930

Flat Washer

224061121

$0.53

2940

Door Belt

293850129

$16.49

2950

Pop Rivet 3/16"

293150103

$0.55

3000

RH Lower Door Panel

705010733

$61.99

3010

Torx Truss Screw M6 X 50

250000749

$3.17

3020

Stainless Steel Flat Washer

234062670

$2.11

3030

Hex. Flange Elastic Nut M6

233261466

$2.00

3400

Black, LH Front Lateral Panel Kit

715006594

$124.99

3410

Torx Screw M6 X 20

250000722

$1.68

3411

Torx Screw M6 X 20

250000712

$2.11

3412

Torx Truss Screw M6 X 25

250000807

$2.11

3415

Hex. Flange Elastic Nut M6

233261494

$1.58

3430

Panel Nut M6 X 1.0

250100198

$2.11

3440

Torx Truss M6 X 50

250000868

$2.11

3500

RH Front Lateral Panel Kit

715004074

$104.99

3510

Torx Screw M6 X 20

250000722

$1.68

3511

Torx Screw M6 X 20

250000712

$2.11

3515

Hex. Flange Elastic Nut M6

233261494

$1.58

3530

Panel Nut M6 X 1.0

250100198

$2.11

3540

Torx Truss M6 X 50

250000868

$2.11

3550

Hex. Flange Elastic Nut M6

233261494

$1.58

3560

Grommet

517303756

$4.09

3600

Lateral Cover

705017564

$43.99

4030

Torx Truss Screw M6 X 25

250000807

$2.11

4040

Panel Nut M6 X 1.0

250100198

$2.11

4050

Torx Screw K50 X 16

250000720

$1.69

4100

LH Central Lateral Panel

705012768

$73.99

4105

Pop Rivet 3/16"

293150103

$0.55

4200

Deep Black, RH Lower Body Panel

705017549

$73.99

4205

Pop Rivet 3/16"

293150103

$0.55

4210

Torx Screw M6 X 20

250000722

$1.68

4220

Panel Nut M6 X 1.0

250100198

$2.11

4230

Insert

705016606

$2.79

4300

LH Rear Lateral Panel

705012770

$114.99

4305

Pop Rivet 3/16"

293150103

$0.55

4400

RH Rear Lateral Panel

705012771

$114.99

4405

Pop Rivet 3/16"

293150103

$0.55

4410

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

4420

Panel Nut M6 X 1.0

250100198

$2.11

4440

Support Plate

705003841

$0.99

4610

Torx Screw M6 X 20

250000722

$1.68

4650

Support Plate

705003841

$0.99

8000

LH Lateral Panel

705012772

$119.99

8010

Flat washer M6

250200164

$1.01

8020

Torx Truss Screw M6 X 25

250000807

$2.11

8030

Pop Rivet 3/16”

293150108

$1.19

8100

RH Lateral Panel

705012773

$119.99

8110

Flat washer M6

250200164

$1.01

8120

Torx Truss Screw M6 X 25

250000807

$2.11

8130

Pop Rivet 3/16”

293150108

$1.19

8200

LH Lateral Structure

705012774

$229.99

8210

Panel Nut M6 X 1.0

250100198

$2.11

8220

Hex. Flange Screw M8 X 70

207687044

$7.41

8230

Saddle Washer

705205462

$5.40

8240

Elastic Flange Nut M8

233281464

$1.01

8300

RH Lateral Structure

705012775

$229.99

8310

Panel Nut M6 X 1.0

250100198

$2.11

8320

Hex. Flange Screw M8 X 70

207687044

$7.41

8330

Saddle Washer

705205462

$5.40

8340

Elastic Flange Nut M8

233281464

$1.01

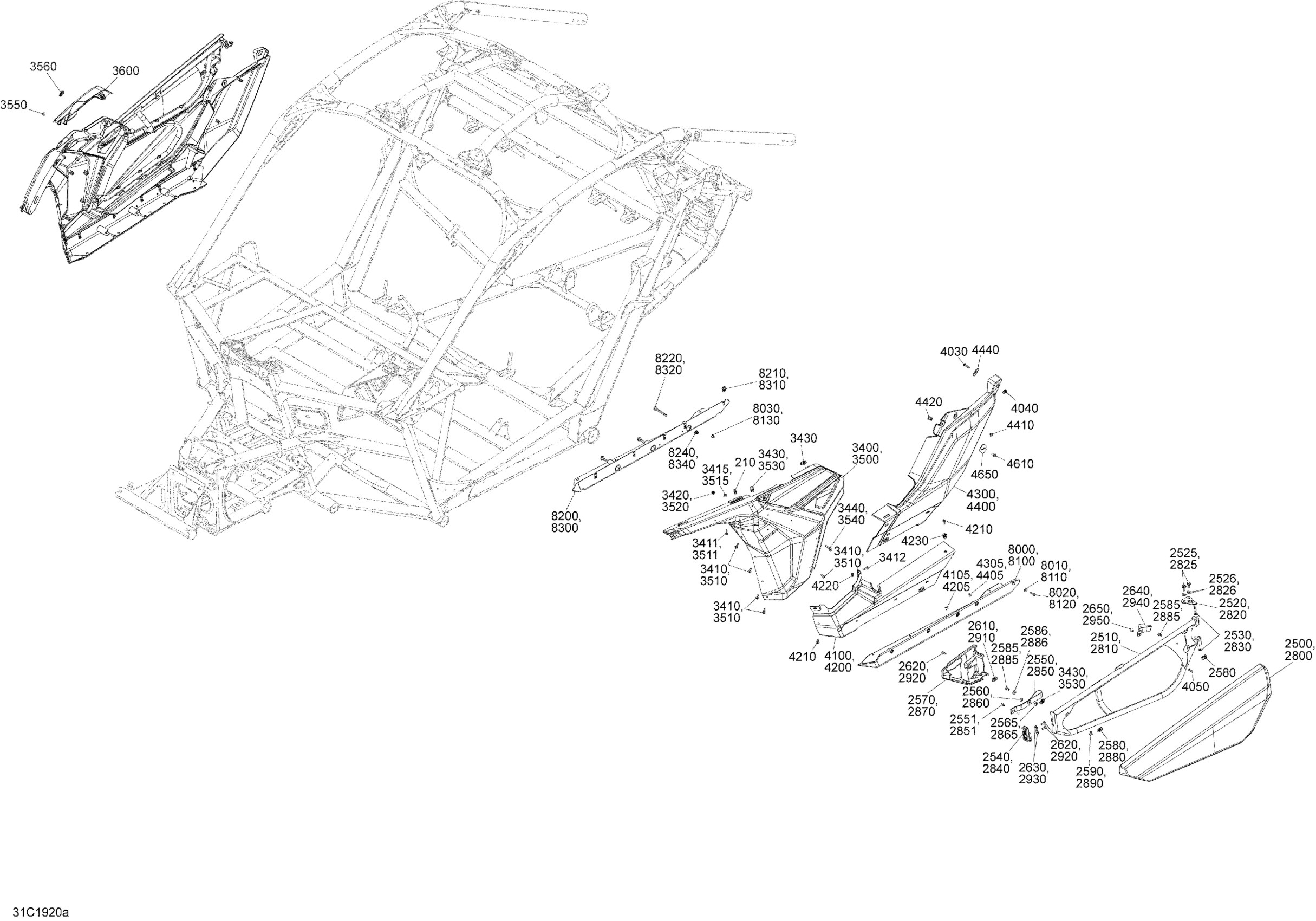

Can-Am 002 - Maverick Turbo - North America, 2019 09- Body - Side Section - Carbon Black Diagram

Clip

Carbon Black, LH Front Door Panel

Deep Black, LH Front Door

Door Support

Hex Screw Washer Head M8 X 20

Flat Washer M8

Flat Washer 8 mm, Nylon

LH Latch

Belt

Pop Rivet 3/16"

Bushing | DS 650 X

LH Latch Cover

Panel Nut M6 X 1.0

Torx Truss Screw M6 X 16

Stainless Steel Flat Washer

Pop Rivet 3/16"

Panel Nut M6 X 1.0

Torx Screw M6 X 20

Flat Washer

Door Belt

Pop Rivet 3/16"

LH Lower Door Panel

Torx Truss Screw M6 X 50

Stainless Steel Flat Washer

Hex. Flange Elastic Nut M6

Carbon Black, RH Front Door Panel

Deep Black, RH Front Door

Door Support

Hex Screw Washer Head M8 X 20

Flat Washer M8

Flat Washer 8 mm, Nylon

RH Latch

Belt

Pop Rivet 3/16"

Bushing | DS 650 X

RH Latch Cover

Panel Nut M6 X 1.0

Torx Truss Screw M6 X 16

Stainless Steel Flat Washer

Pop Rivet 3/16"

Panel Nut M6 X 1.0

Torx Screw M6 X 20

Flat Washer

Door Belt

Pop Rivet 3/16"

RH Lower Door Panel

Torx Truss Screw M6 X 50

Stainless Steel Flat Washer

Hex. Flange Elastic Nut M6

Black, LH Front Lateral Panel Kit

Torx Screw M6 X 20

Torx Screw M6 X 20

Torx Truss Screw M6 X 25

Hex. Flange Elastic Nut M6

Panel Nut M6 X 1.0

Torx Truss M6 X 50

RH Front Lateral Panel Kit

Torx Screw M6 X 20

Torx Screw M6 X 20

Hex. Flange Elastic Nut M6

Panel Nut M6 X 1.0

Torx Truss M6 X 50

Hex. Flange Elastic Nut M6

Grommet

Lateral Cover

Torx Truss Screw M6 X 25

Panel Nut M6 X 1.0

Torx Screw K50 X 16

LH Central Lateral Panel

Pop Rivet 3/16"

Deep Black, RH Lower Body Panel

Pop Rivet 3/16"

Torx Screw M6 X 20

Panel Nut M6 X 1.0

Insert

LH Rear Lateral Panel

Pop Rivet 3/16"

RH Rear Lateral Panel

Pop Rivet 3/16"
