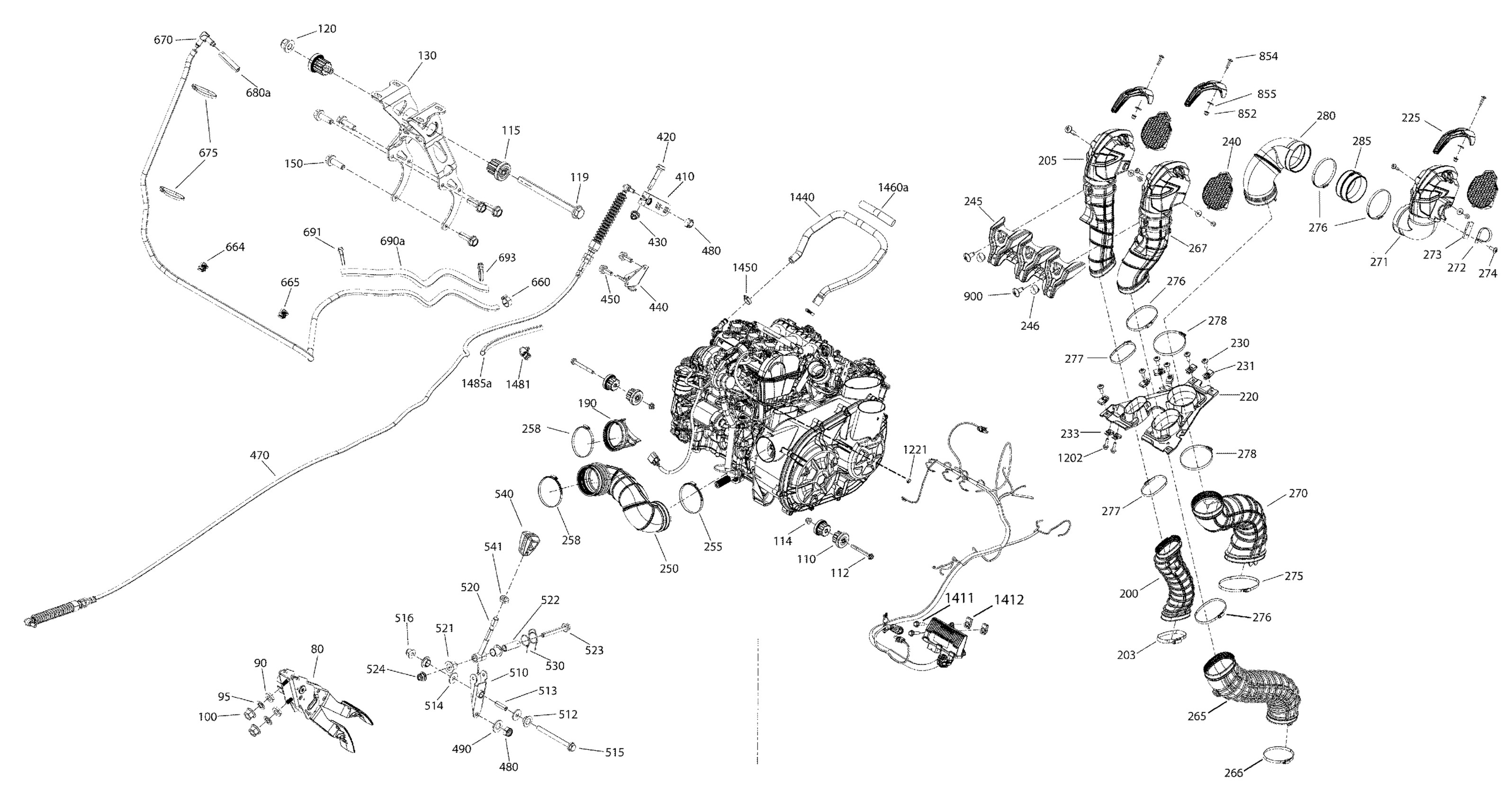

Can-Am 002 - Maverick Turbo - North America, 2019 01- Engine - Turbo - Package XMR Diagram

#

Description
Price

80

Throttle Pedal

707001803

$284.99

90

Bushing

707001990

$2.79

95

Push Nut

250100031

$7.29

100

Hex. Flange Nut M8

233081416

$1.15

110

Vibration Damper

707002952

$15.81

112

Hex. Flange Screw M10 X 90

207609046

$6.77

114

Hex. Flange Elastic Nut M10

233201436

$2.11

115

Anti-Vibration Mount

707001808

$35.99

119

Hex. Flange Screw M10 X 125

230602546

$7.41

120

Hex. Flange Elastic Nut M10

233201436

$2.11

130

Rear Engine Support

707001881

$104.99

150

Hex. Flange Screw M8 X 25, Scotch Grip

207582544

$1.69

190

Front CVT Duct

706600248

$28.99

200

Front CVT Duct

706600225

$25.99

203

Norma Clamp

514052924

$14.22

205

Top Front CVT Duct

706600250

$164.99

220

Hose Support

706600253

$19.99

225

Cap

707002086

$23.99

230

Torx Screw M6 X 20

250000722

$1.68

231

Panel Nut M6 X 1.0

250100198

$2.11

233

Panel Nut M5 X 0.8

250000958

$4.23

240

Air Inlet Grille

706600296

$22.99

245

Hose Holder

706600276

$21.99

246

Pop Rivet 3/16"

293150103

$0.55

250

Front CVT Duct

706600224

$28.99

255

Norma Gear Clamp

514052983

$15.89

258

Norma Gear Clamp

514052983

$15.89

265

Rear Duct

706600222

$88.99

266

Norma Gear Clamp

514052983

$15.89

267

Top Rear Intake Duct

706600251

$164.99

270

Rear CVT Duct

706600223

$134.99

271

Top Rear CVT Exhaust Duct

706600252

$153.49

272

Open Clamp

293850133

$2.59

273

Plate

705013076

$33.99

274

Torx Truss M8 X 16

250000881

$2.11

275

Gear Clamp (Norma)

514052861

$8.29

276

Norma Gear Clamp

514052983

$15.89

277

Norma Clamp

293650096

$3.17

278

Tridon Clamp

293650054

$9.49

280

Mid Rear CVT Exhaust Duct

706600270

$54.99

285

Adaptor

707002266

$13.49

410

Lever

707000911

$20.49

420

Hex. Flange Screw M6 X 35

207663544

$0.90

430

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

440

Cable Support

707001614

$16.87

450

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.90

470

Shifting Cable

707001809

$67.99

480

Hex. Elastic Stop Nut M8

232581414

$0.56

490

Flat Washer 10 mm

234001410

$1.26

510

Lower Lever Arm

707000828

$19.99

512

Flanged Bushing

707000847

$1.25

513

Bushing

707001376

$5.24

514

Flat Washer 6 mm

234062410

$0.77

515

Hex. Flange Screw M6 X 70

207667056

$4.44

516

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

520

Upper Lever Arm

707000711

$39.99

521

Flanged Bushing

707000869

$2.89

522

Bushing

707001376

$5.24

523

Hex. Flange Screw M6 X 50

207665044

$4.12

524

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

530

Lever Arm Spring

707000750

$2.68

540

Lever Trim

707003211

$8.49

541

Hex. Jam Nut M8

232180491

$7.51

660

Oetiker Clamp

293650042

$3.09

664

2-Pieces Fixing Tie Rap for Edges | Not Shown

293750058

$6.45

665

2-Pieces Fixing Tie Rap for Edges | Not Shown

293750058

$6.45

670

Elbow Fitting

293710171

$9.09

675

Tie Wrap 368 mm

293750008

$1.04

680a

Polyurethane Hose 4000MM Long | Includes 250 to 250a

219704389

$78.49

690a

TUBING 13MM I.D. 300MM LONG - Call your local BRP dealership

219704449

Unavailable

691

Tie-Rap 180 mm

414115200

$0.11

693

Tie-Rap 180 mm

414115200

$0.11

852

Elastic Flange Nut M5

233251494

$2.11

854

Torx Screw M5 X 20

250000792

$2.11

855

Flat Washer 5 mm, Stainless

234052600

$0.77

900

Torx Screw M6 X 14

250000851

$2.11

1202

Hex. Flange Screw M5 X 20, Scotch Grip

207552044

$5.19

1221

Oeticker Clamp

293650262

$1.29

1411

Hex. Flange Screw M6 X 25

207662554

$1.48

1412

Panel Nut M6 X 1.0

250100198

$2.11

1440

Hose Vent

707001931

$52.99

1450

Tridon Gear Clamp

293650051

$4.19

1460a

Corrugated Sheath 23 MM ID 1000MM Long

219704450

$13.76

1481

Clip Tie-Rap | Package North Edition

710005037

$9.17

1485a

Tubing 10 MM 1000MM Long

219704407

$2.79
