Description

Price

10

Sunburst Yellow, Front LH Fender

705012296

$204.99

15

Panel Nut M6 X 1.0

250100198

$2.11

20

Sunburst Yellow, Front RH Fender

705012297

$204.99

25

Panel Nut M6 X 1.0

250100198

$2.11

30

Tuflok Plastic Rivet

293150230

$1.47

40

Washer

503192494

$3.17

100

Service Center

705011391

$64.99

105

Torx Screw M6 X 20

250000722

$1.68

110

Panel Nut M6 X 1.0

250100198

$2.11

115

Hex. Flange Screw M6 X 30 | International

210263050

$2.09

116

Stainless Steel Flat Washer

234062670

$2.11

120

Hex. Flange Screw M6 X 75

207667554

$4.44

130

Push Nut

732610072

$2.19

135

Bushing

293900125

$2.69

160

Carbon Black, Removable Hood

705012300

$389.99

320

Grid Front Fascia

705009364

$28.99

330

Tuflok Plastic Rivet

293150230

$1.47

400

Front Facia

705011392

$254.99

410

Torx Screw M8 X 30

250000886

$2.11

420

Washer

503192494

$3.17

430

Hex. Flange Elastic Nut M8

233281414

$1.47

440

Grommet

705010718

$2.69

450

LH Front Reflector

704905072

$13.49

455

RH Front Reflector

704905073

$13.49

510

Torx Screw M6 X 20

250000722

$1.68

520

Panel Nut M6 X 1.0

250100198

$2.11

525

Torx Screw M6 X 20

250000722

$1.68

530

Stainless Steel Flat Washer

234062670

$2.11

550

Torx Screw K50 X 16

250000720

$1.69

555

Flat Washer M5

234051670

$2.11

860

LH Front Lateral Panel

705008152

$62.99

870

RH Front Lateral Panel

705008153

$62.99

935

Torx Screw K50 X 16

250000720

$1.69

940

Rear LH Side Panel | Order 705012704 panel + 414916600 Nylon Cap

705012704

$93.99

945

Tuflok Plastic Rivet

293150230

$1.47

950

RH Rear Side Panel

705012705

$114.99

955

Tuflok Plastic Rivet

293150230

$1.47

960

Torx Screw M6 X 20

250000722

$1.68

970

Panel Nut M6 X 1.0

250100198

$2.11

975

Tuflok Plastic Rivet

293150230

$1.47

1000

LH Side Central Panel

705017552

$71.99

1005

Torx Truss Screw M6 X 25

250000807

$2.11

1006

Stainless Steel Flat Washer

234062670

$2.11

1020

Deep Black, RH Central Panel

705019038

$74.99

1025

Torx Truss Screw M6 X 25

250000807

$2.11

1026

Stainless Steel Flat Washer

234062670

$2.11

1030

Pop Rivet 3/16”

293150108

$1.19

1100

LH Middle Side Panel

705013112

$109.99

1105

Torx Truss Screw M6 X 25

250000807

$2.11

1115

Tuflok Plastic Rivet

293150230

$1.47

1120

Torx Truss Screw M6 X 25

250000807

$2.11

1122

Flat Washer M6.6 X 22

250200162

$2.32

1125

Stainless Steel Flat Washer

234062670

$2.11

1150a

LH Middle Cage Cover

705010601

$38.99

1155

Flat Washer M6.6 X 22

250200162

$2.32

1156

Torx Truss Screw M6 X 25

250000807

$2.11

1160a

RH Middle Cage Cover

705010602

$38.99

1165

Flat Washer M6.6 X 22

250200162

$2.32

1166

Torx Truss Screw M6 X 25

250000807

$2.11

1167

Insert Half Hex Body M6 x 1.0

250100199

$3.19

1200

RH Middle Side Panel

705013661

$109.99

1205

Torx Truss Screw M6 X 25

250000807

$2.11

1215

Tuflok Plastic Rivet

293150230

$1.47

1220

Torx Truss Screw M6 X 25

250000807

$2.11

1222

Flat Washer M6.6 X 22

250200162

$2.32

1225

Stainless Steel Flat Washer

234062670

$2.11

1300

LH Rear Cage Cover Kit

715003564

$82.99

1330

Tuflok Plastic Rivet

293150230

$1.47

1335

Washer

503192494

$3.17

1400

RH Rear Cage Cover Kit | Includes 1160 to 1160a

715003565

$82.99

1430

Tuflok Plastic Rivet

293150230

$1.47

1435

Washer

503192494

$3.17

1880

Tuflok Plastic Rivet

293150230

$1.47

2020

Central Skid Plate

705009151

$62.49

2025

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

2030

Connection Plate

705010884

$31.99

2040

Rear Skid Plate

705011292

$88.99

2045

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

2050

Lateral Skid Plate

705010422

$86.99

2055

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

2060

Rear Side Skid Plate

705010587

$86.99

2065

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

2070

Rear Central Skid Plate

705010588

$62.49

2075

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

2100

Tuflok Plastic Rivet

293150230

$1.47

4000

LH Front Fender Flare

705011518

$24.99

4010

RH Front Fender Flare

705011519

$24.99

4020

Torx Truss Screw Head PT.K50 X 40

250000840

$1.90

4100

LH Central Fender Flare

705011522

$12.99

4110

RH Center Fender Flare

705011523

$14.99

4120

Torx Screw M6 X 25

250000758

$2.11

4125

Stainless Steel Flat Washer

234062670

$2.11

4130

Torx Truss Screw Head PT.K50 X 40

250000840

$1.90

4140

Hex. Flange Elastic Nut M6

233261494

$1.58

5400

LH Rear Deflector

705010426

$53.99

5410

Flat Washer 8 mm, Nylon

292001663

$1.47

5450

RH Rear Deflector

705010427

$53.99

5460

Flat Washer 8 mm, Nylon

292001663

$1.47

6000a

Air Inlet

706600236

$54.99

6000b

Cap

707002086

$23.99

6000c

Torx Screw M5 X 20

250000792

$2.11

6000d

Elastic Flange Nut M5

233251494

$2.11

6000e

Torx Truss Screw K40 X 12

250000577

$2.11

6000f

Grate

706600247

$20.99

6000g

CVT Outlet

706600205

$43.99

6000h

Trim

705012556

$15.49

6000j

Torx Screw M6 X 45

250000647

$6.82

6000k

Elastic Stop Nut M6 | Model-Australie, Brezil, Europe

232561494

$0.58

6000m

Clamp

293650272

$20.99

6000n

Pop Rivet 3/16”

293150101

$2.09

6000p

Intake Tube

706600277

$67.99

6000q

Flexible Joint

706600278

$28.99

6000r

Torx Screw M6 X 20

250000712

$2.11

6000s

Flat washer M6

250200164

$1.01

6010

Hex. Nut M8

232081414

$0.72

6015

Flat Washer 8 mm

234082410

$1.47

6020

Torx Truss M8 X 25

250000874

$2.11

6025

Torx Screw Truss Head K50X20 T20

250000760

$2.11

6030

Flat Washer M6.6 X 22

250200162

$2.32

6035

Torx Truss M8 X 25

250000874

$2.11

6040

Roof Anchor

705800131

$9.29

6055

Roof Cap

705800058

$3.99

6060

Torx Truss Screw M6 X 25

250000807

$2.11

6065

Torx Truss Screw M6 X 25

250000807

$2.11

6070

Torx Truss Screw M6 X 25

250000807

$2.11

6075

Stainless Steel Flat Washer

234062670

$2.11

6080

Torx Truss Screw M6 X 25

250000807

$2.11

6085

Stainless Steel Flat Washer

234062670

$2.11

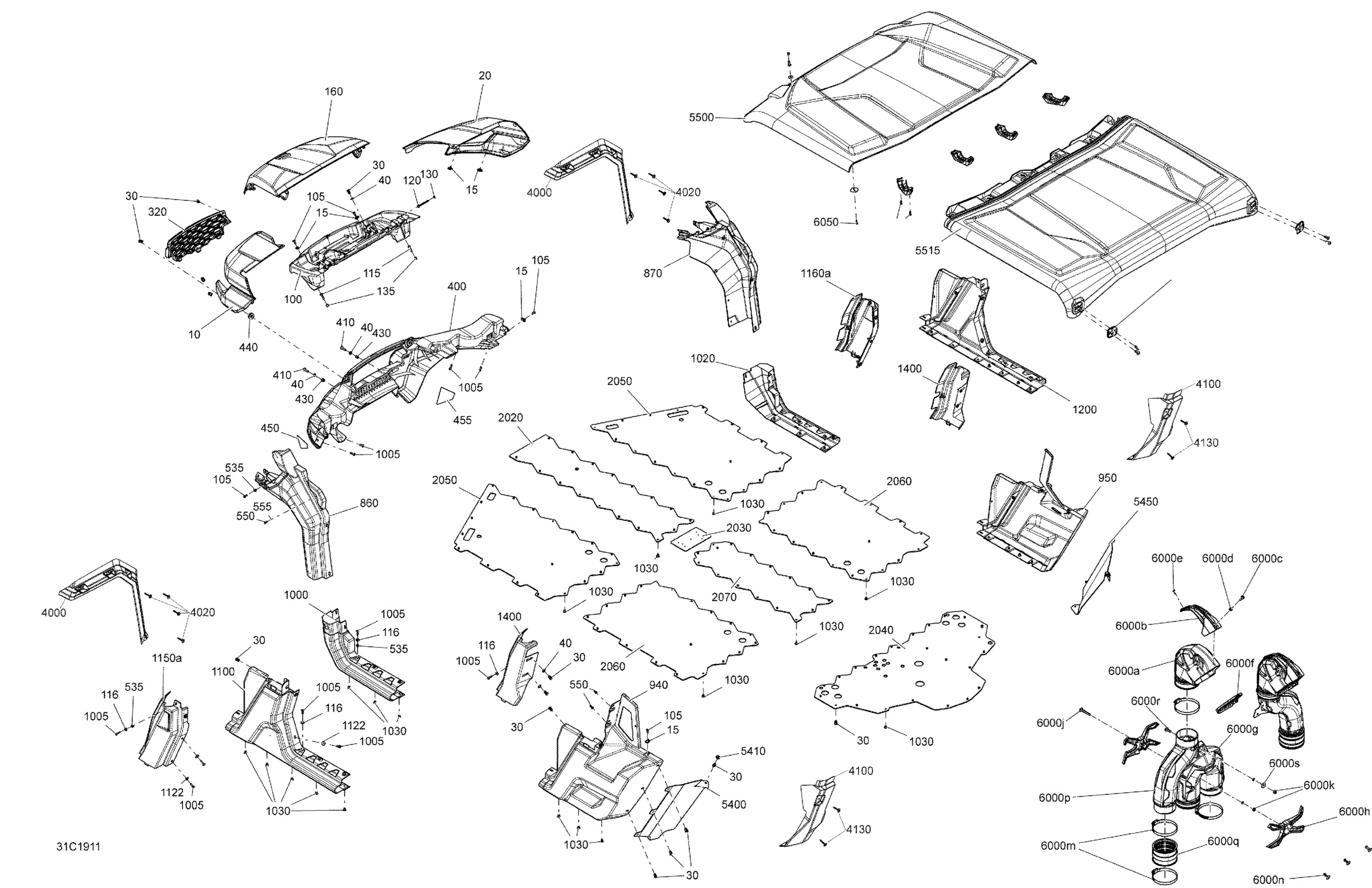

Can-Am 006 - Defender MAX HD10 - XMR - North America, 2019 09- Body - Sunburst Yellow Diagram
