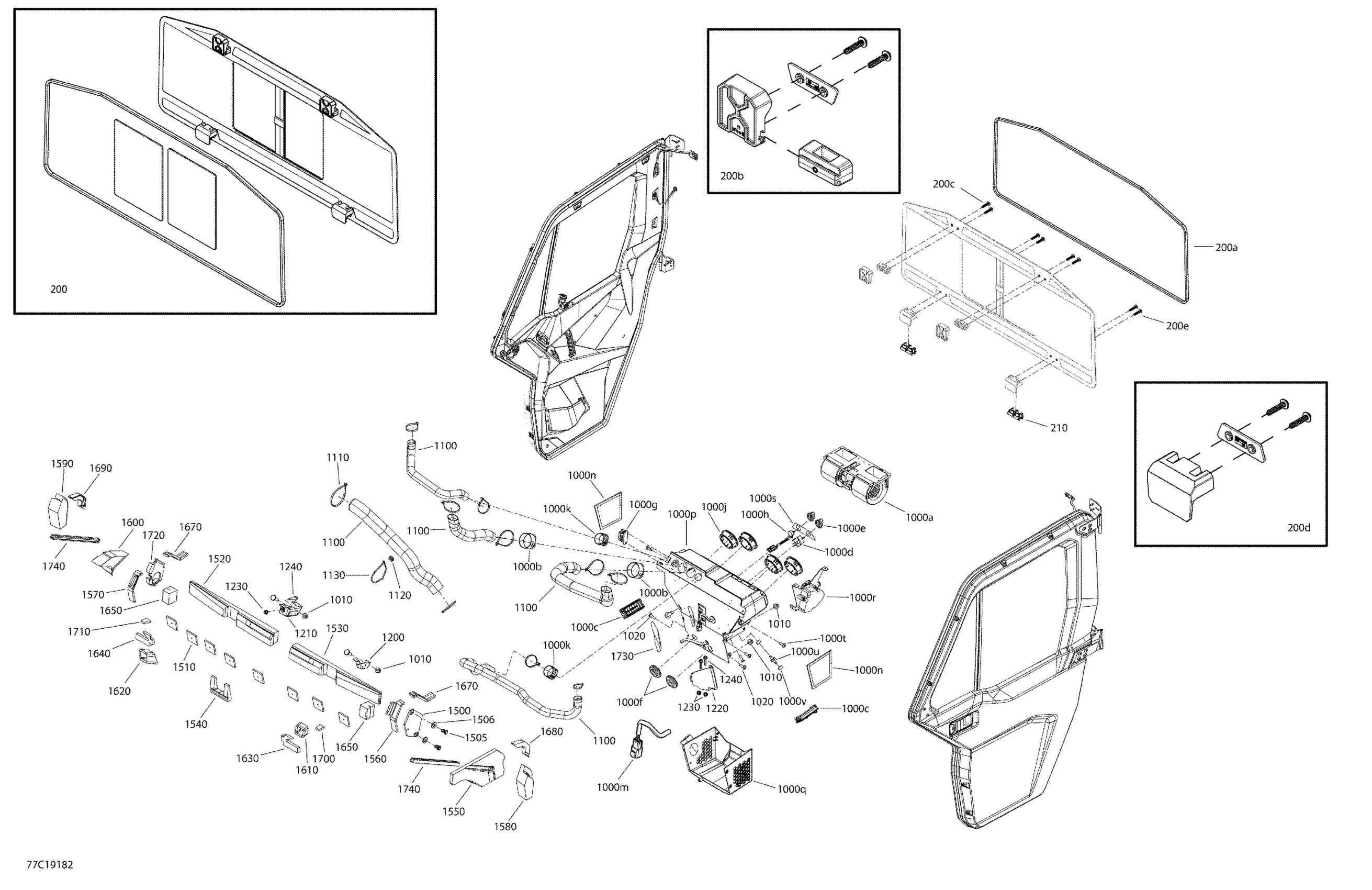

Can-Am 005 - Defender MAX HD10 - North America, 2019 09- Enclosure Cab - HD10 - XT CAB - North America - Rear Window & Dash Section Diagram

Description

Price

200

Rear Window Kit Ur

715007080

$929.99

200a

Outer Seal

705800054

$35.99

200b

Upper Clamp Ass'y | Includes 200c to 200c4

705800088

$60.99

200c

Screw Torx M6.81 X 30

250001007

$2.54

200d

Lower Clamp Ass'y | Includes 200d to 200d3

705800090

$37.99

200e

Screw Torx M6.81 X 30

250001007

$2.54

210

Stopper Rubber

705800317

$36.99

1000a

Fan

520001536

$423.99

1000b

Duct Adaptor

520001672

$15.99

1000c

Rectangular Grid

520001673

$51.99

1000d

Potentiometer Switch Knob Ass'y | Includes 620 to 620c

705800585

$116.49

1000e

Potentiometer Switch Knob Ass'y | Includes 620 to 620c

705800585

$116.49

1000f

Grommet 5/8'' | Not Shown

520001676

$7.69

1000g

FUSE BOX - Call your local BRP dealership

520001679

Unavailable

1000h

Potentiometer Switch Knob Ass'y | Includes 620 to 620c

705800585

$116.49

1000j

Round Grid

520001681

$29.99

1000k

Duct Adaptor

520001682

$19.99

1000m

WIRING HARNESS - Call your local BRP dealership

520001683

$284.99

1000n

Filter

520001537

$28.99

1000p

Console

520001546

$76.99

1000q

Lower Cover

520001626

$43.99

1000r

Valve Ass'y 5/8''

520001685

$309.99

1000s

HVAC OVERLAY - Call your local BRP dealership

520001686

$28.99

1000t

Torx Screw M6 X 20

250000722

$1.68

1000u

Check Valve

275500398

$10.99

1000v

Crimp Clamp, 15.3-706R

293650047

$3.29

1010

Hex. Flange Elastic Nut M8

233281414

$1.47

1020

Torx Screw M6 X 20

250000722

$1.68

1100

Air Duct Kit

520001643

$204.99

1110

Tie Wrap 368 mm

293750008

$1.04

1120

Tie Rap Clip

293750062

$7.62

1130

Tie Wrap 368 mm

293750008

$1.04

1200

LH Support

520001619

$82.99

1210

RH Support

520001621

$60.99

1220

Central Support

520001623

$164.99

1230

Insert Half Hex Body M6 x 1.0

250100199

$3.19

1240

Hex. Flange Screw M6 X 30, Scotch Grip

207563044

$4.44

1500

Insulating Foam

705800260

$6.99

1505

Tuflok Plastic Rivet

293150230

$1.47

1506

Flat Washer 8 mm, Nylon

292001663

$1.47

1510

Insulating Foam

705800261

$1.89

1520

Insulating Foam

705800262

$36.99

1530

Insulating Foam

705800263

$36.99

1540

Insulating Foam

705800264

$5.29

1550

Insulating Foam

705800265

$16.49

1560

LH Insulating Foam

705800266

$5.29

1570

RH Insulating Foam

705800267

$5.29

1580

Insulating Foam

705800268

$6.99

1590

Insulating Foam

705800269

$7.19

1600

Insulating Foam

705800270

$22.49

1610

LH Insulating Foam

705800271

$5.29

1620

RH Insulating Foam

705800272

$5.29

1630

Insulating Foam

705800273

$5.29

1640

Insulating Foam

705800274

$5.29

1650

Insulating Foam

705800275

$5.29

1670

Insulating Foam

705800277

$2.99

1680

LH Insulating Foam

705800278

$9.39

1690

RH Insulating Foam

705800279

$9.39

1700

LH Insulating Foam

705800280

$1.89

1710

RH Insulating Foam

705800281

$1.89

1720

Insulating Foam

705800282

$6.99

1730

Protector Decal

704906818

$15.49

1740

Was 293250361 Gasket

219704379

$78.99

1750

Hex. Nut M8

232081414

$0.72

1760

Torx Truss M8 X 25

250000874

$2.11

1770

Flat Washer 8 mm

234082410

$1.47
