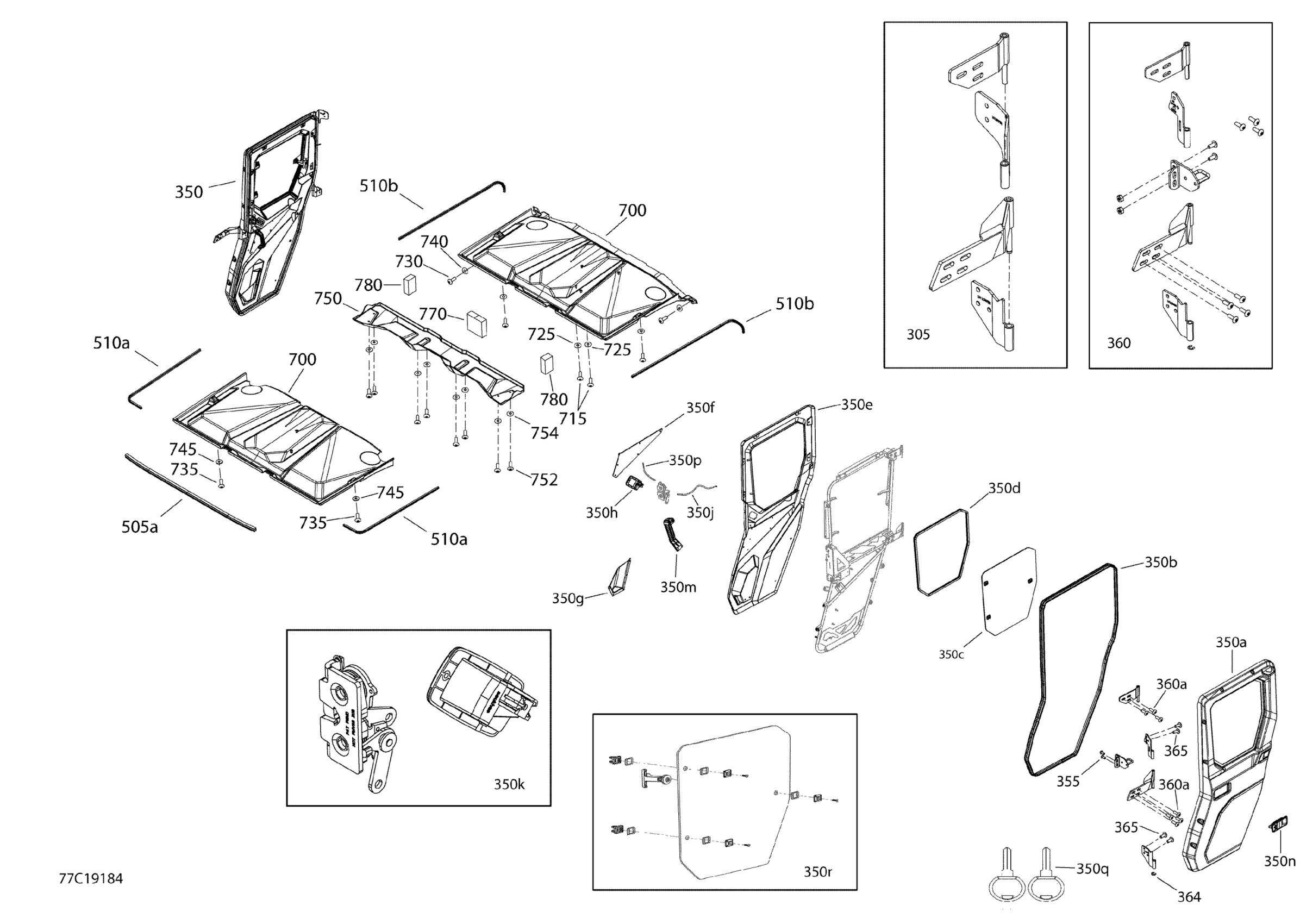

Can-Am 005 - Defender MAX HD10 - North America, 2019 09- Enclosure Cab - HD10 - XT CAB - North America - Rear Doors & Roof Section Diagram

Description

Price

350

LH Rear Rigid Door Ass'y | Includes 350 to 350u

705800476

$3,489.99

350a

Lh Door Outer Panel

705800415

$1,309.99

350b

Seal 705800290 - 5000 MM

705800289

$229.99

350c

LH Sub-Ass'y, Window

705800233

$559.99

350d

Seal 705800298 - 2200 MM

705800297

$104.99

350e

LH Routed Inner Door

705800235

$1,239.99

350f

Interior Color Panel LH

705800237

$409.99

350g

Rear Door Pocket LH

705800249

$419.99

350h

LH Interior Latch Kit

703501002

$209.99

350j

Cable Ass', Exterior Latch

705800241

$159.99

350k

LH Interior Latch Kit

703501002

$209.99

350m

LH Interior Handle

705800243

$119.99

350n

Exterior Paddle Latch | Keys 705800184 sold separately

705800015

$269.99

350p

Cable Ass'y, Interior Latch

705800242

$159.99

350q

Key Set

705800184

$25.99

350r

Window Hardware Kit

703500983

$244.99

355

Torx Truss M/S M8 X 20

250000953

$2.11

360

Max Hinges And Strikers Kit Lh | Includes 360 to 360a

705800564

$359.99

360a

Torx Truss M8 X 25

250000874

$2.11

305

LH Hinge Kit

703500917

$299.99

364

Retaining Ring

293370125

$2.59

365

Torx Truss M/S M8 X 20

250000953

$2.11

350

RH Rear Rigid Door Ass'y | Includes 350 to 350u

705800477

$3,489.99

350a

Rh Door Outer Panel

705800416

$1,309.99

350c

RH Sub-Ass', Window

705800234

$559.99

350e

Routed Inner Door Rh

705800236

$1,239.99

350f

Interior Color Panel DR

705800238

$409.99

350g

Rear Door Pocket RH

705800250

$419.99

350h

RH Interior Latch Kit

703501003

$209.99

350k

RH Interior Latch Kit

703501003

$209.99

350m

RH Interior Handle

705800244

$119.99

360

Max Hinges And Strikers Kit Rh

705800565

$369.99

305

RH Hinge Kit

703500918

$289.99

505a

Was 293250361 Gasket

219704379

$78.99

510a

Outer Seal

705800054

$35.99

520a

Outer Seal

705800054

$35.99

700

Roof Liner Kit

715006391

$595.99

715

Torx-Truss Pt K40 X 16

250000759

$2.11

725

Washer M5

250200025

$0.74

730

Torx Screw Truss Head K50X20 T20

250000760

$2.11

735

Torx Screw Truss Head K50X20 T20

250000760

$2.11

740

Stainless Steel Flat Washer

234062670

$2.11

745

Stainless Steel Flat Washer

234062670

$2.11

750

Roof Liner Support

705800132

$159.99

752

Torx Screw Truss Head K50X20 T20

250000760

$2.11

754

Stainless Steel Flat Washer

234062670

$2.11

770

Roof Liner Spacer

705800221

$18.15

780

Roof Liner Spacer

705800255

$18.15
