Description

Price

1

Siege Assemblee*Seat Assembly | Includes 1 to 6

708001506

$459.99

2

Not Available As Spare Part - Friction Washer

Unavailable

3

Rubber Stopper

708000759

$4.19

4

Not Available As Spare Part - Friction Washer

Unavailable

5

Seat Cover

708000556

$126.99

6

SEAT CORNER, BLACK - Call your local BRP dealership

708000127

Unavailable

7

Bumper Rubber

708000760

$10.49

8

Latch, Black

708000144

$11.99

9

HEX. SCREW M6 X 110 - Call your local BRP dealership

230061060

Unavailable

10

Spring

708000369

$9.19

11

Push Nut

732610072

$2.19

12

Seat Reinforcement

708000629

$33.99

13

Hex. Forming Screw M6 X 10

210261050

$1.69

14

REFLECTING SHEET - Call your local BRP dealership

708000198

Unavailable

15

Emission Label | 400 H.O.

704900874

Unavailable

16

Emission Label | 330 H.O.

704900875

Unavailable

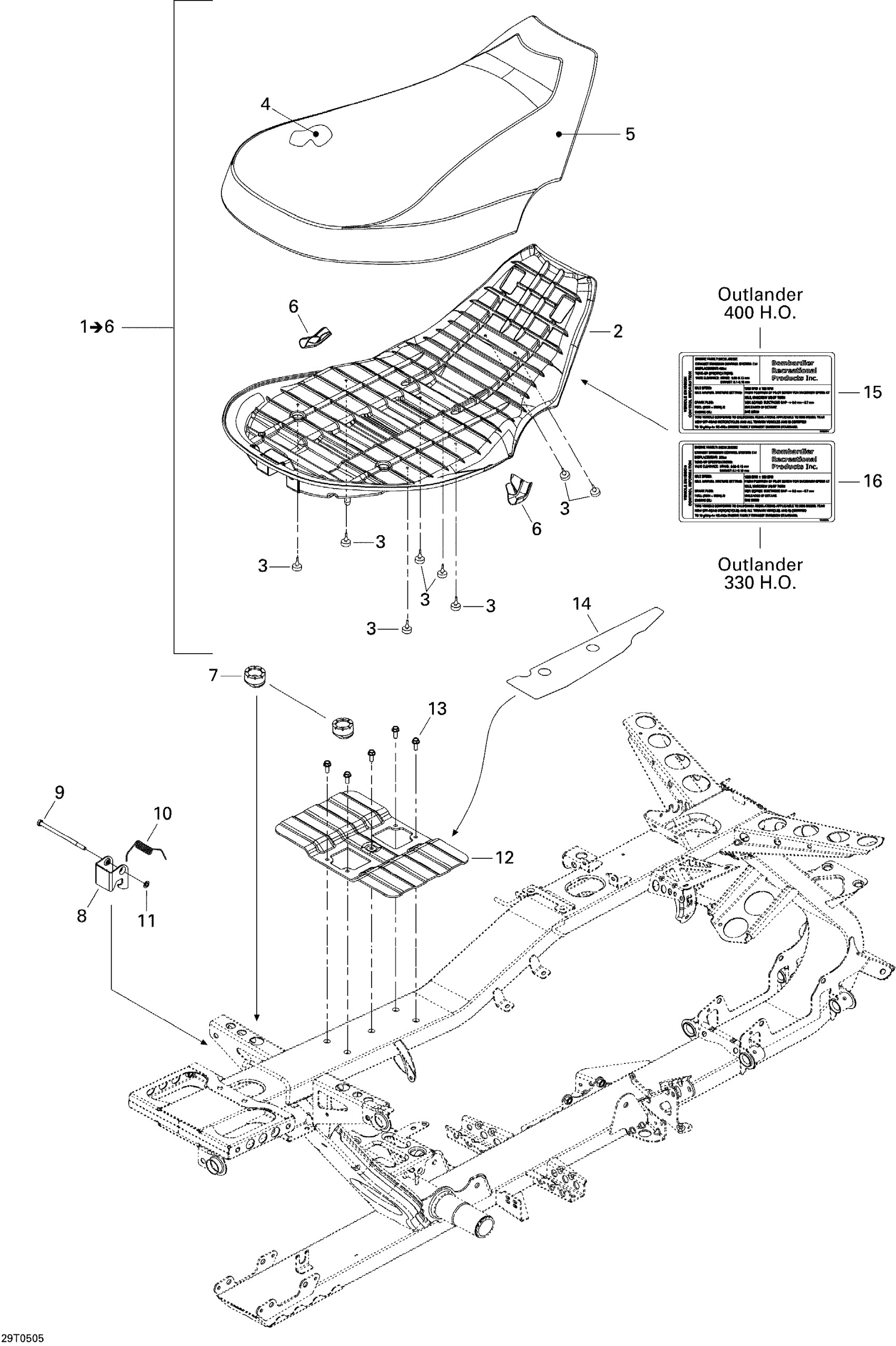

Can-Am Outlander 330/400 STD 4 X 4, 2005 09- Seat Diagram

Siege Assemblee*Seat Assembly | Includes 1 to 6

Not Available As Spare Part - Friction Washer

Rubber Stopper

Not Available As Spare Part - Friction Washer

Seat Cover

SEAT CORNER, BLACK - Call your local BRP dealership

Bumper Rubber

Latch, Black

HEX. SCREW M6 X 110 - Call your local BRP dealership

Spring

Push Nut

Seat Reinforcement

Hex. Forming Screw M6 X 10

REFLECTING SHEET - Call your local BRP dealership

Emission Label | 400 H.O.

Emission Label | 330 H.O.
