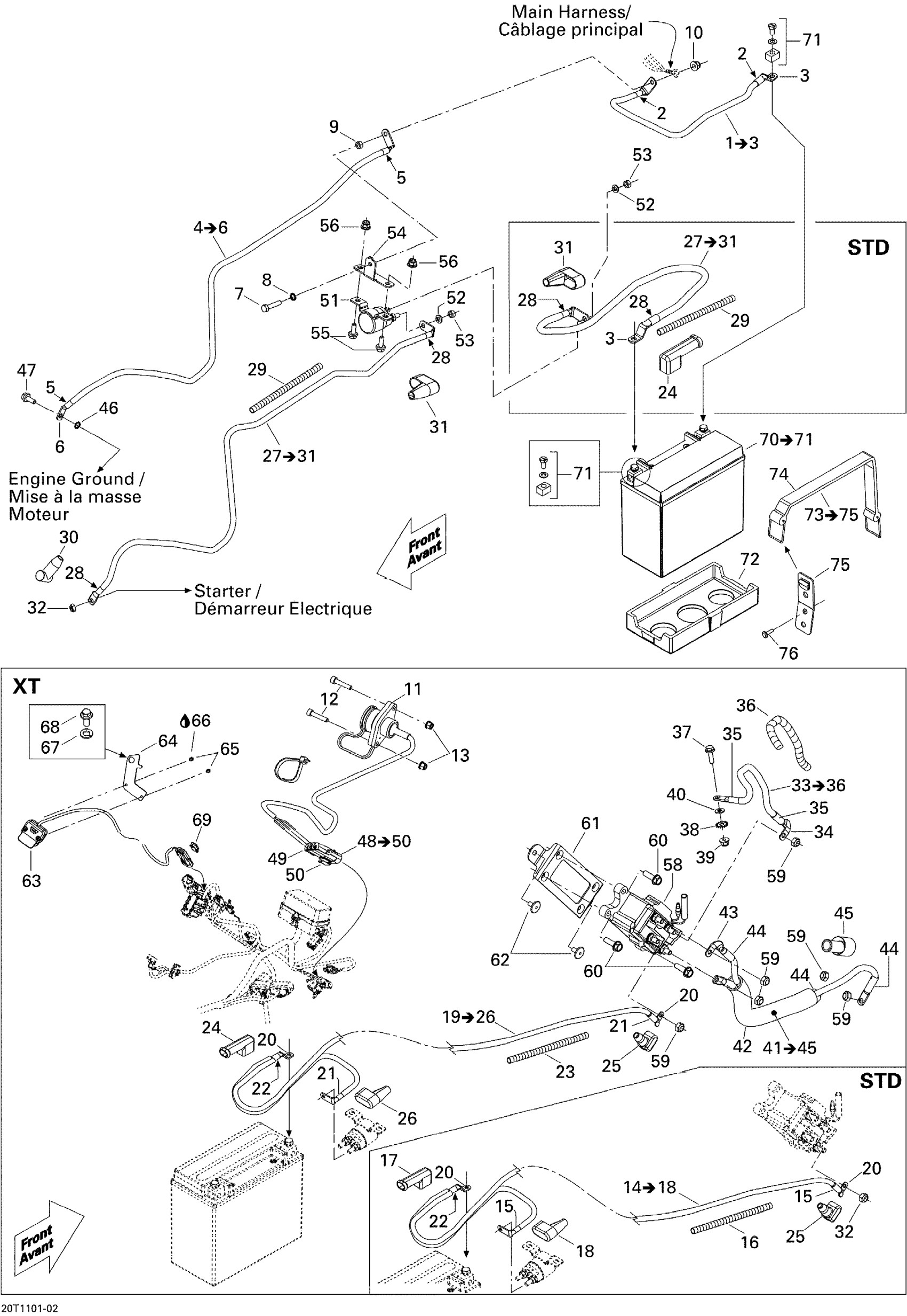

Can-Am Outlander 400 EFI, 2011 10- Electrical System Diagram

#

Description
Price

1

Ground Cable Ass'y, Battery/Frame | Includes 1 to 4

710000830

$23.49

2

Was 710000483 Heat Shrink Tubing

219704447

$78.99

3

Open Barrel | STD Models

710000518

$11.12

4

Ground Cable | Includes 4 to 6

710001443

Unavailable

5

Was 710000483 Heat Shrink Tubing

219704447

$78.99

6

Open Barrel

710000540

Unavailable

7

Hex. Screw M6 X 25

207162544

$1.15

8

External Serrated Lock Washer 6 mm

234461608

$1.15

9

Hex. Nut M6

232061414

$0.53

10

Hex. Flange Nut M6

233061414

$1.68

11

Winch Connector

710001023

$51.99

12

Socket Head Screw M5 X 25

205052588

$1.90

13

Hex. Flange Elastic Nut M5

233251414

$1.04

14

Positive Cable Ass'y | STD, Includes 22 to 28

710001822

$30.99

15

Was 710000483 Heat Shrink Tubing

219704447

$78.99

16

PROTECTOR TUBE, 9 MM - Call your local BRP dealership

710000497

Unavailable

17

Protector Cap | STD Models

710001829

$9.95

18

Protector Cap | STD

710001817

$11.12

19

POSITIVE CABLE ASS'Y - Call your local BRP dealership | XT, Includes 13 to 21

710001823

Unavailable

20

OPEN BARREL, 6.6 MM - Call your local BRP dealership | XT Models

710000476

Unavailable

21

Was 710000483 Heat Shrink Tubing

219704447

$78.99

22

Shrink Tubing | XT Models

275500578

Unavailable

23

PROTECTOR TUBE, 9 MM - Call your local BRP dealership

710000497

Unavailable

24

Protector Cap | STD Models

710001829

$9.95

25

Protector Cap | XT Models

710001828

$23.49

26

Protector Cap | STD

710001817

$11.12

27

POSITIVE CABLE ASS'Y - Call your local BRP dealership | Includes 27 to 31

710001820

Unavailable

28

Was 710000483 Heat Shrink Tubing

219704447

$78.99

29

PROTECTOR TUBE, 9 MM - Call your local BRP dealership

710000497

Unavailable

30

Protector Cap

710000526

$10.99

31

Protector Cap | STD

710001817

$11.12

32

Elastic Stop Nut M6

232561414

$0.55

33

NEGATIVE CABLE ASS'Y - Call your local BRP dealership | XT Models, Includes 37 To 41

710000455

Unavailable

34

OPEN BARREL, 6.6 MM - Call your local BRP dealership | XT Models

710000476

Unavailable

35

Was 710000483 Heat Shrink Tubing

219704447

$78.99

36

PROTECTOR TUBE, 9 MM - Call your local BRP dealership

710000497

Unavailable

37

Hex. Flange Screw M6 X 20

207662044

$2.00

38

Lock Washer Serrated M6

250200041

$1.15

39

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

40

Flat Washer

224061121

$0.53

41

WINCH CABLE ASS'Y - Call your local BRP dealership | XT, Includes 47 to 52

710001251

Unavailable

42

Was 409901600 Tubing 19mm

219704398

$95.99

43

OPEN BARREL, 6.6 MM - Call your local BRP dealership | XT Models

710000476

Unavailable

44

Was 710000483 Heat Shrink Tubing

219704447

$78.99

45

Protector Cap | XT

515175919

$17.99

46

External Serrated Lock Washer 6 mm

234461608

$1.15

47

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.90

48

Connector Ass'y | XT, Includes 55 to 57

710001059

$9.10

49

Female Terminal Housing, 3 Circuits | XT Models

278000281

$9.85

50

Clip

710000992

$4.29

51

Starter Relay

710007777

$48.49

52

Lock Washer Helical M6

234161601

$1.15

53

Hex. Nut M6

232061600

$1.15

54

SOLENOID SUPPORT - Call your local BRP dealership

710001260

Unavailable

55

Hex. Flange Screw M6 X 12

207661244

$2.11

56

Hex. Flange Nut M6

233061414

$1.68

58

Winch Solenoid | XT Models

710001000

$121.99

59

Elastic Stop Nut M6

232561414

$0.55

60

Hexagonal Head Screw

210262050

$2.11

61

WINCH RELAY SUPPORT - Call your local BRP dealership | XT

710001813

Unavailable

62

Pop Rivet 3/16"

390406500

$0.88

63

WINCH INTERRUPTER - Call your local BRP dealership | XT Models, Includes 13 To 16

710001001

Unavailable

64

WINCH INTERRUPTER SUPPORT - Call your local BRP dealership | XT Models

710000755

Unavailable

65

Hex. Cap Screw 6-32 X 1/4" | XT Models

250000153

$1.69

66

Loctite 243, 10 ml

293800060

$21.49

67

Helicoidal Lock Washer M10 | XT Models

234101601

$1.15

68

HEX. SCREW M10 X 16 - Call your local BRP dealership

250000029

Unavailable

69

Clip

710000992

$4.29

70

Battery Ass'y, 18 Amperes | XT Models, Includes 72 To 73

410301203

$154.99

71

Battery Bolt Kit

250000282

$7.29

72

INSULATOR PAD - Call your local BRP dealership

710000279

Unavailable

73

Not Available As Spare Part - Friction Washer

Unavailable

74

Retainer Strap

293850097

$11.64

75

Strap Clip

293850030

$11.12

76

Pop Rivet 3/16"

390402400

$0.35
