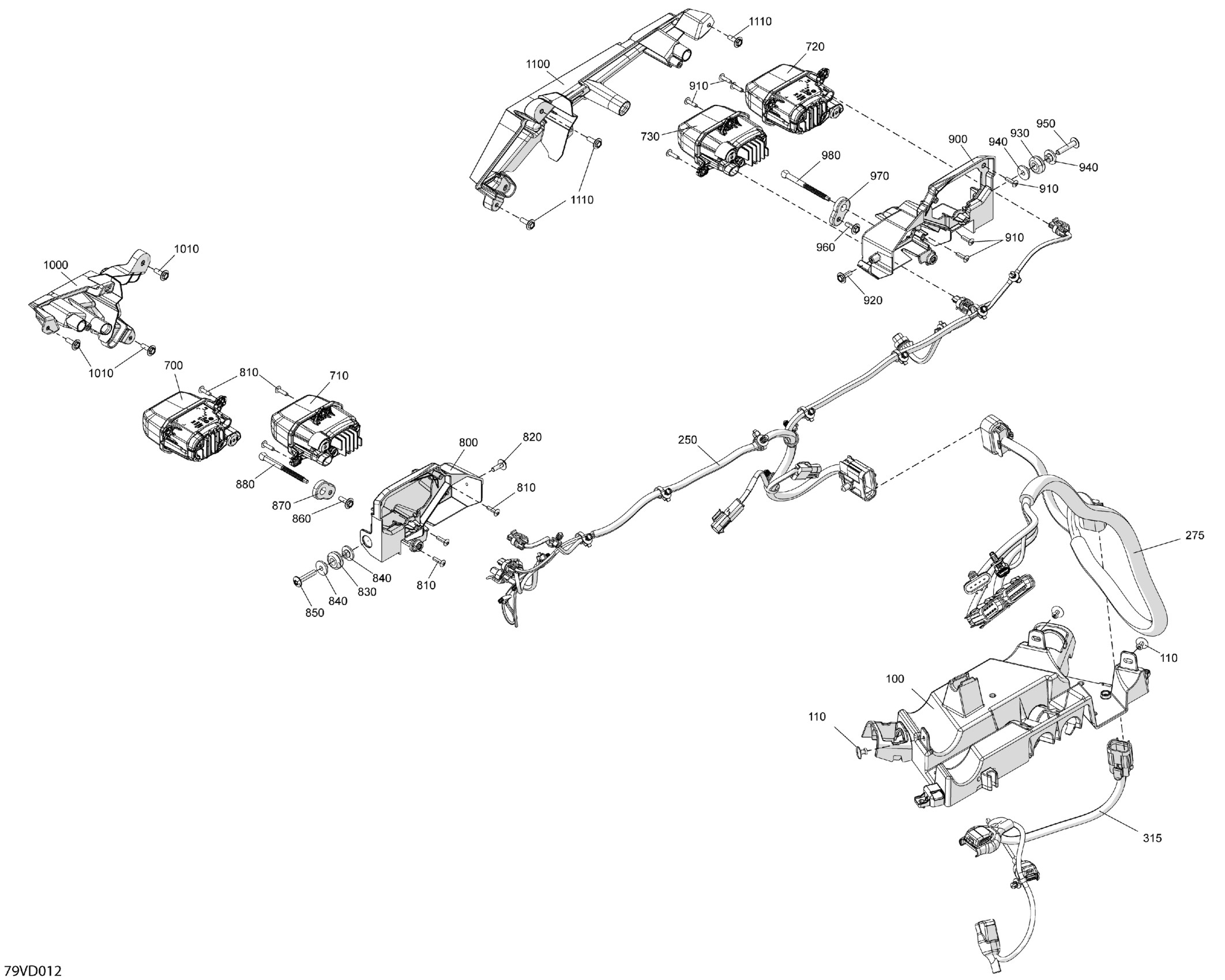

Can-Am North America - Maverick R 996NT - BASE - 9BRA - Catalyst Gray - 77" Width, 2024 08- Electric - Front Section Diagram

Description

Price

100

Multi Porpuse Support

710007813

$19.99

110

Black, Pop Rivet 3/16 X ,550

293150292

$1.05

250

Headlight Wiring Harness

710007725

$97.99

275

Junction Wiring Harness

710008192

$119.99

315

Differential Wiring Harness

710007357

$48.99

700

Low Beam Light

710008089

$129.99

710

High Beam Light

710006911

$129.99

715

Washer Cal

517309027

$6.09

720

Low Beam Light

710008089

$129.99

730

High Beam Light

710006911

$129.99

735

Washer Cal

517309027

$6.09

800

LH Front Headlight Support

708500013

$47.99

810

Torx-Truss Pt K40 X 16

250000759

$2.11

820

Screw PT Type K-50 X 16

250000959

$2.11

830

Overmolded Grommet

293720130

$4.69

840

Shoulder Bushing

710004749

$2.69

850

Stainless, Torx Screw M6 X 30

250000842

$2.11

860

Screw PT Type K-50 X 16

250000959

$2.11

870

Ball Socket

293900157

$9.59

880

Ajustment Screw

710005837

$6.35

900

RH Front Headlight Support

708500014

$47.99

910

Torx-Truss Pt K40 X 16

250000759

$2.11

920

Screw PT Type K-50 X 16

250000959

$2.11

930

Overmolded Grommet

293720130

$4.69

940

Shoulder Bushing

710004749

$2.69

950

Stainless, Torx Screw M6 X 30

250000842

$2.11

960

Screw PT Type K-50 X 16

250000959

$2.11

970

Ball Socket

293900157

$9.59

980

Ajustment Screw

710005837

$6.35

1000

LH Front Auxiliary Headlight Trim

710007908

$43.99

1010

Screw PT Type K-50 X 16

250000959

$2.11

1100

RH Front Auxiliary Headlight Trim

710007909

$43.99

1110

Screw PT Type K-50 X 16

250000959

$2.11
