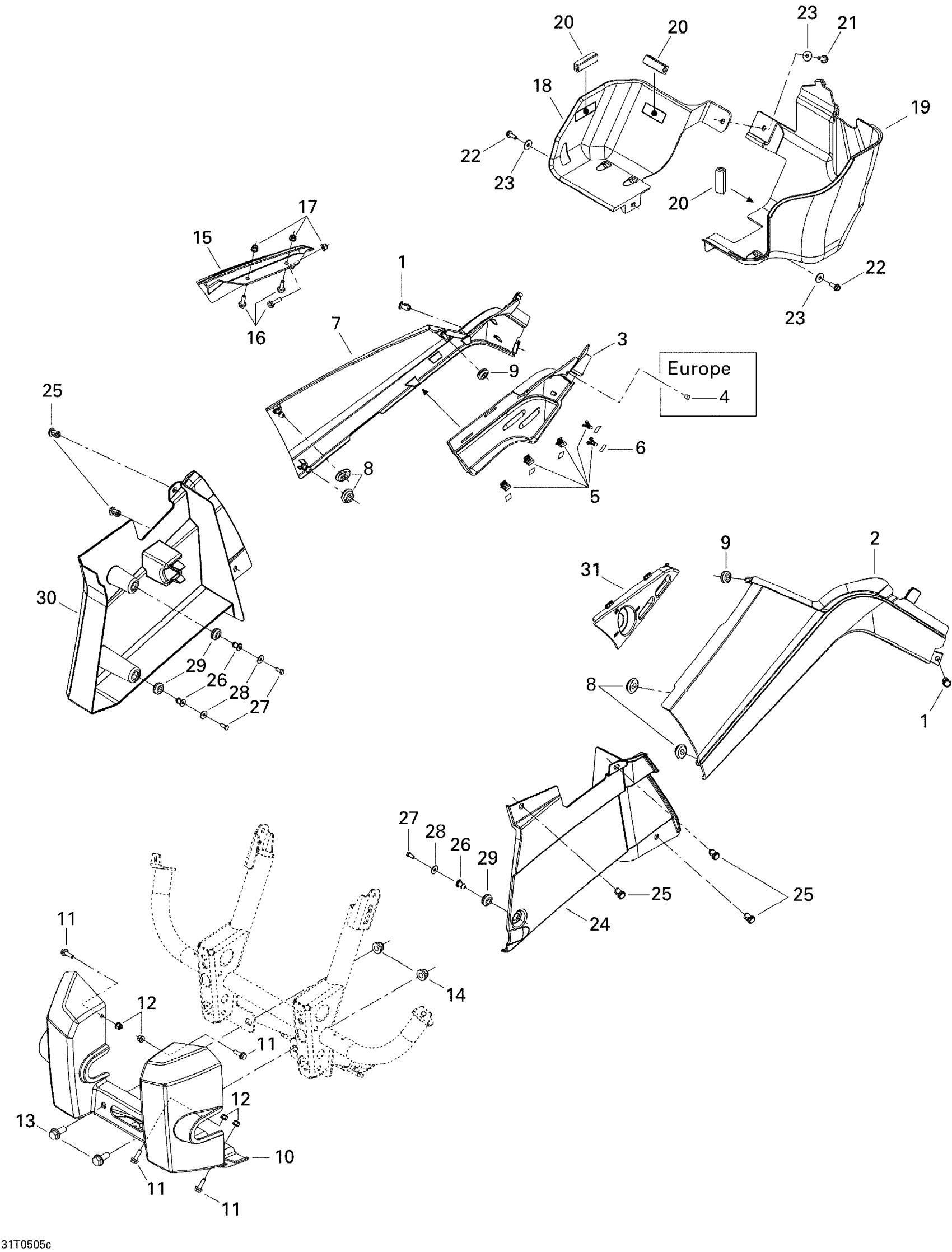

Can-Am Outlander 330/400 STD 4 X 4, 2005 09- Body And Accessories 3 Diagram

#

Description
Price

1

Tuflok Plastic Rivet

293150230

$1.47

2

RED LH SIDE PANEL - Call your local BRP dealership | Viper Red

705003499

Unavailable

2

LH SIDE PANEL - Call your local BRP dealership | Laurentian Green

705003651

Unavailable

2

PANEL_BODY LH B-190 - Call your local BRP dealership | Yellow

705003498

Unavailable

2

LH Side Panel | Camo

705000864

Unavailable

3

MUFFLER COVER - Call your local BRP dealership

705001685

Unavailable

4

Rubber Bumper

293830005

$8.09

5

Edge Clip

517302785

$0.88

6

Heat Shield | Europe

517305451

$2.29

7

Red RH Side Panel | Viper Red

705003502

$43.99

7

RH SIDE PANEL - Call your local BRP dealership | Laurentian Green

705003652

Unavailable

7

PANEL_BODY RH B-190 - Call your local BRP dealership | Yellow

705003501

Unavailable

7

RH Side Panel | Camo

705000866

Unavailable

8

Oval Washer

705005156

$4.97

9

Grommet

709000582

$4.69

10

GUARD PLATE - Call your local BRP dealership | STD

705003495

Unavailable

11

Hex. Flange Screw M6 X 20

207662044

$2.00

12

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

13

Hex. Flange Screw M10 X 25

207602544

$1.69

14

Hex. Flange Elastic Nut M10

233201414

$1.58

15

LEVER INDICATOR - Call your local BRP dealership

705001529

Unavailable

16

Hex. Flange Screw M6 X 20

207662044

$2.00

17

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

18

RH TANK PROTECTOR - Call your local BRP dealership

705000554

Unavailable

19

LH Tank Protector

705000555

Unavailable

20

Was 293200017 Neoprene Seal

219704365

$149.99

21

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.90

22

Hex. Flange Screw M6 X 16

210261650

$1.67

23

Flat Washer

250200082

$0.42

24

LH Inner Fender

705000652

$39.99

25

Tuflok Plastic Rivet

293150230

$1.47

26

Knob

517303439

$4.55

27

Torx Screw K50 X 16

250000720

$1.69

28

Washer | DS 650 X

391301600

$0.48

29

Grommet

709000582

$4.69

30

INNER FENDER - Call your local BRP dealership

705002640

$36.99

31

VALVE SUPPORT - Call your local BRP dealership

705001691

Unavailable
