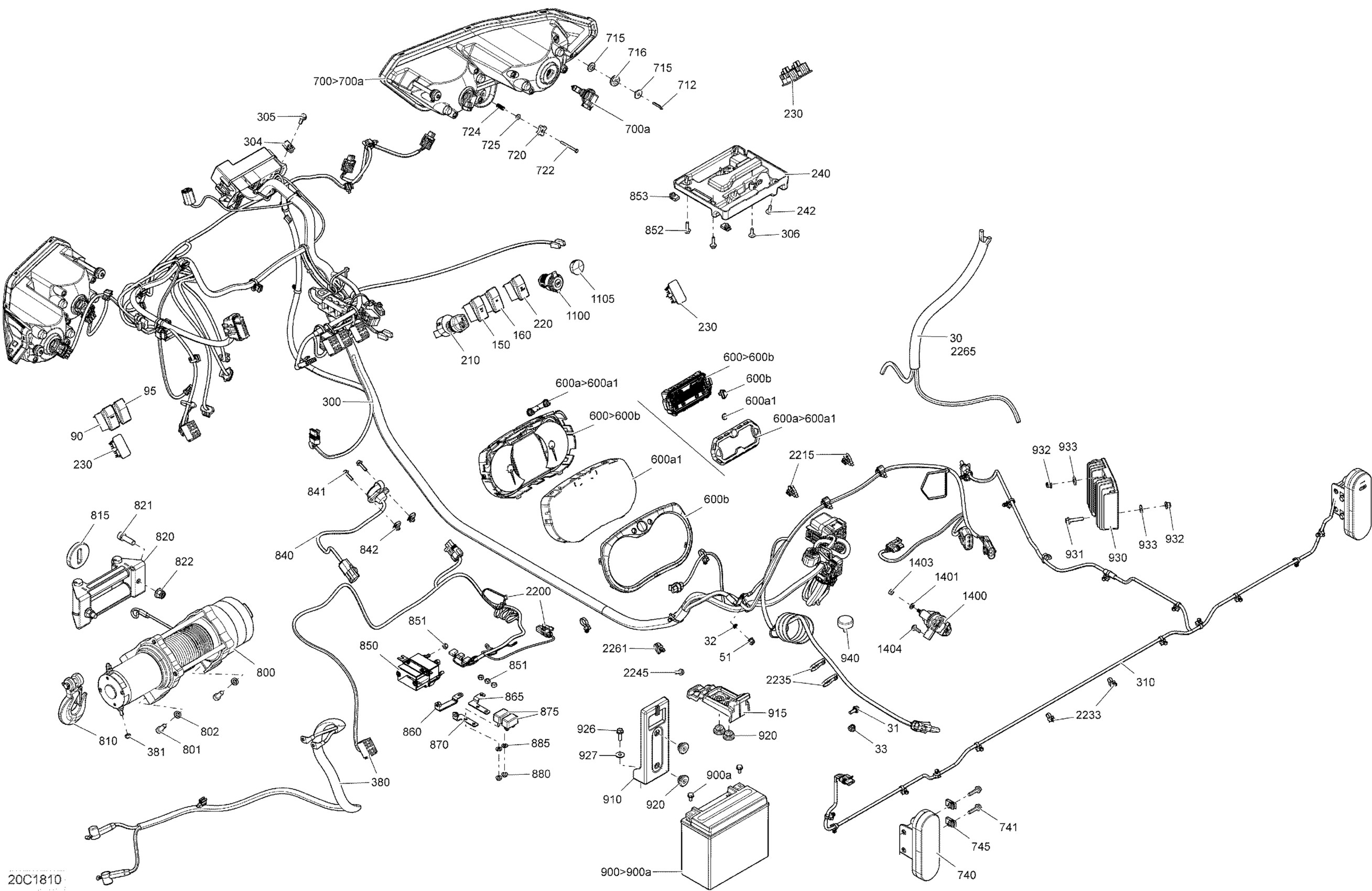

Can-Am 6- Traxter T HD8, 2018 10- Electrical System Traxter T - STD Diagram

Negative Cable

710005512

$46.99

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.90

External Serrated Lock Washer 6 mm

234461608

$1.15

Elastic Stop Nut M6

232561414

$0.55

Elastic Stop Nut M6

232561414

$0.55

Light Switch

710004492

$47.49

Switch Winch

710002052

$28.49

2 X 4 Switch

710004814

$31.99

Differential Lock Switch

710005470

$46.49

Inter Allumage *Ignition

710007870

$55.99

Key Switch Protector

710005739

$2.69

3-Modes Switch | Winch Equipped Model

715004445

$40.49

Plug Carling | Australia, Brazil, Europe, Japan

710007173

$8.85

Housing Support

710004741

$7.69

Screw PT Type K-50 X 16

250000959

$2.11

Harness-Ass'y

710005722

$929.99

DPS Connector Cap | Not Shown

710005760

$16.86

Panel Nut M6 X 1.0

250100198

$2.11

Hex. Flange Screw M6 X 20

207662044

$2.00

Hex. Plastic Screw M4.8 X 16

243141630

$2.11

Rear Harness

710004458

$229.99

Housing Cap

710005774

$3.29

Housing Cap

710005775

$3.29

Switch's Connector

710005713

$7.55

Winch Harness | Winch Equipped Model

710004465

$110.99

Elastic Stop Nut M6

232561434

$1.99

Speedometer | Includes 600 to 600b

710005553

$339.99

Trim Ring Ass'y

710001183

$19.99

BRP Logo13 mm

704904615

$13.49

Button

715900265

$13.71

Speedometer | Package CAB, Hunter and XT

710005719

$439.99

Lens | XTP

415129349

$24.49

Speedometer Button | XTP

415129355

$15.80

LH Headlamp | Includes 700 to 700a

710008313

$214.99

RH Beam Ass'y

710005730

$229.99

Halogen Bulb H8 12V 35W

219800149

$41.49

Hex. Flange Screw K50 X 2.24 X 25

241152540

$4.44

Shoulder Bushing

710004749

$2.69

Grommet

709000582

$4.69

Handle

572106600

$10.33

Hex. Screw K40 X 45

250000718

$2.11

Spring

517168600

$7.39

Flat Washer 4 mm, Stainless

234042600

$1.15

Tail Light

710004257

$91.99

Tail Light

710004497

$111.49

Hex. Flange Screw M6 X 20, Scotch Grip

207562034

$2.11

Panel Nut M6 X 1.0

250100198

$2.11

Electric Winch | Includes 800 to 800a

710006993

$208.49

Socket Head Screw M8 X 30

205083044

$1.15

Lock Washer 8 mm

234181401

$0.92

Winch Hook Kit

705014949

$24.99

Stopper

710007028

$3.82

Fairlead Roller

710007082

$59.49

Socket Screw M10 x 30 | XT

205003044

$3.17

Hex. Flange Elastic Nut M10

233201414

$1.58

Remote Control & Connector_Winch Kit | Winch Equipped Model

715006504

$26.49

Hex. Flange Screw M5 X 20, Scotch Grip

207552044

$5.19

Panel Nut M5 X 0.8

250000958

$4.23

Solenoid

710006991

$62.49

Elastic Stop Nut M6, Brass

232561200

$4.23

Hex. Flange Screw M5 X 20, Scotch Grip

207552044

$5.19

Panel Nut M5 X 0.8

250000958

$4.23

Power Bar

710004772

$12.16

Power Bar

710004872

$12.16

Power Bar

710004873

$12.16

Circuit Breaker 50 Amp

710007039

$19.49

Hex. Flange Nut M5

250100071

$2.11

Lock Washer Helical M6

234161601

$1.15

Battery Ass'y, 18 Amperes | XT Models, Includes 72 To 73

410301203

$154.99

Battery Bolt Kit

250000282

$7.29

Battery | Includes 900 to 900a

515176151

$219.99

Battery Bolt Kit

515176081

$6.99

Fixation Plate

710004788

$11.49

Fixation Plate

710004789

$9.29

Stopper Rubber

705014429

$5.95

Hex. Flange Screw S.Grip M6 X 20

207562054

$2.11

Flat Washer 6 mm

234062410

$0.77

Voltage Regulator | Package-DPS, Model-Europe

710005569

$103.99

Voltage Regulator

710005842

$189.99

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$2.11

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

Flat Washer 6 mm

234062410

$0.77

Rubber Stopper

708001827

$6.89

DC Outlet

710001248

$37.99

12V Power Outlet

710005374

$33.99

Cap

710004993

$7.69

Starter Relay

278003012

$42.49

Lock Washer Helical M6

234161601

$1.15

Hex. Nut M6

232061600

$1.15

Hex. Plastic Screw M4.8 X 16

243141630

$2.11

Tie-Rap 180 mm

414115200

$0.11

2-Pieces Fixing Tie Rap for Edges | Not Shown

293750058

$6.45

Dart Tie Rap 200MM

710003168

$7.09

Tie Wrap 368 mm

293750008

$1.04

Hex. Flange Screw M8 X 16, Scotch Grip

207581646

$2.11

Hex. Flange Screw M6 X 16

210261650

$1.67

Christmas Tree Tie-Rap

710005237

$7.16

Tubing 16 Mm 1000Mm Long

219704408

$7.49
