Description

Price

10

Seat Member | Includes 10 to 10a8

703501076

$139.99

10a

Pop Rivet 3/16"

390402200

$0.35

30

Hex. Flange Elastic Nut M8

233281414

$1.47

50

Operator Seat Member | Includes 50 to 50a7

708001723

$329.99

50a

Pop Rivet 3/16"

390402200

$0.35

60

Mid Seat Member

708002815

$204.99

70

Passenger Seat Member

708002821

$204.99

90

LH Seat Base Ass'y

708002661

$284.99

100

RH Seat Base Ass'y

708002663

$284.99

110

Central Seat Base Ass'y

708002659

$284.99

120

Backrest Ass'y

708002667

$349.99

120a

Rubber Bumper

293830005

$8.09

130

Backrest Ass'y | Includes 130 to 130d

708002665

$349.99

140

Backrest Ass'y | Break Up Country Camo Models

708002668

$349.99

150

Seat Base Pivot

708002581

$9.59

160

Hex. Flange Screw M8 X 45

207684544

$3.80

170

Hex. Flange Elastic Nut M8

233281414

$1.47

175

Hex. Flange Elastic Nut M8

233281414

$1.47

190

Bushing

708001903

$3.79

200

Torx Screw Truss Head K50X20 T20

250000760

$2.11

210

Hex. Screw M6 X 45

207064544

$2.11

220

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

230

Hex. Screw M8 X 20

207182044

$0.74

250

Pin

250400069

$3.89

260

Hairpin Cotter

269800431

$1.29

270

Latch

269501487

$16.99

280

Grommet

517303756

$4.09

290

Rubber Bumper

293830005

$8.09

300

LH Rail

708000848

$53.99

310

RH Rail | Package XT, Cab

708002001

$35.99

320

Seat Stopper

708003672

$2.59

330

Pop Rivet 3/16"

390402200

$0.35

500a

Head Rest

708001721

$55.99

540

Driver Buckle

708002331

$70.99

550

Middle Buckle

708003163

$67.99

560

Passenger Buckle

708002329

$67.99

570

Lateral Safety Belt

708002642

$222.49

580

Central Safety Belt

708002643

$243.49

605

Hex. Screw M12 X 80

207028046

$3.91

606

Flat Washer M12

250200102

$2.11

610

Elastic Flange Nut M12

233221416

$2.85

620

Hex. Cap Screw 7/16'' X 1'' | Europe

250000521

$1.90

630

Lock Nut Nylon 7/16

250100183

$2.00

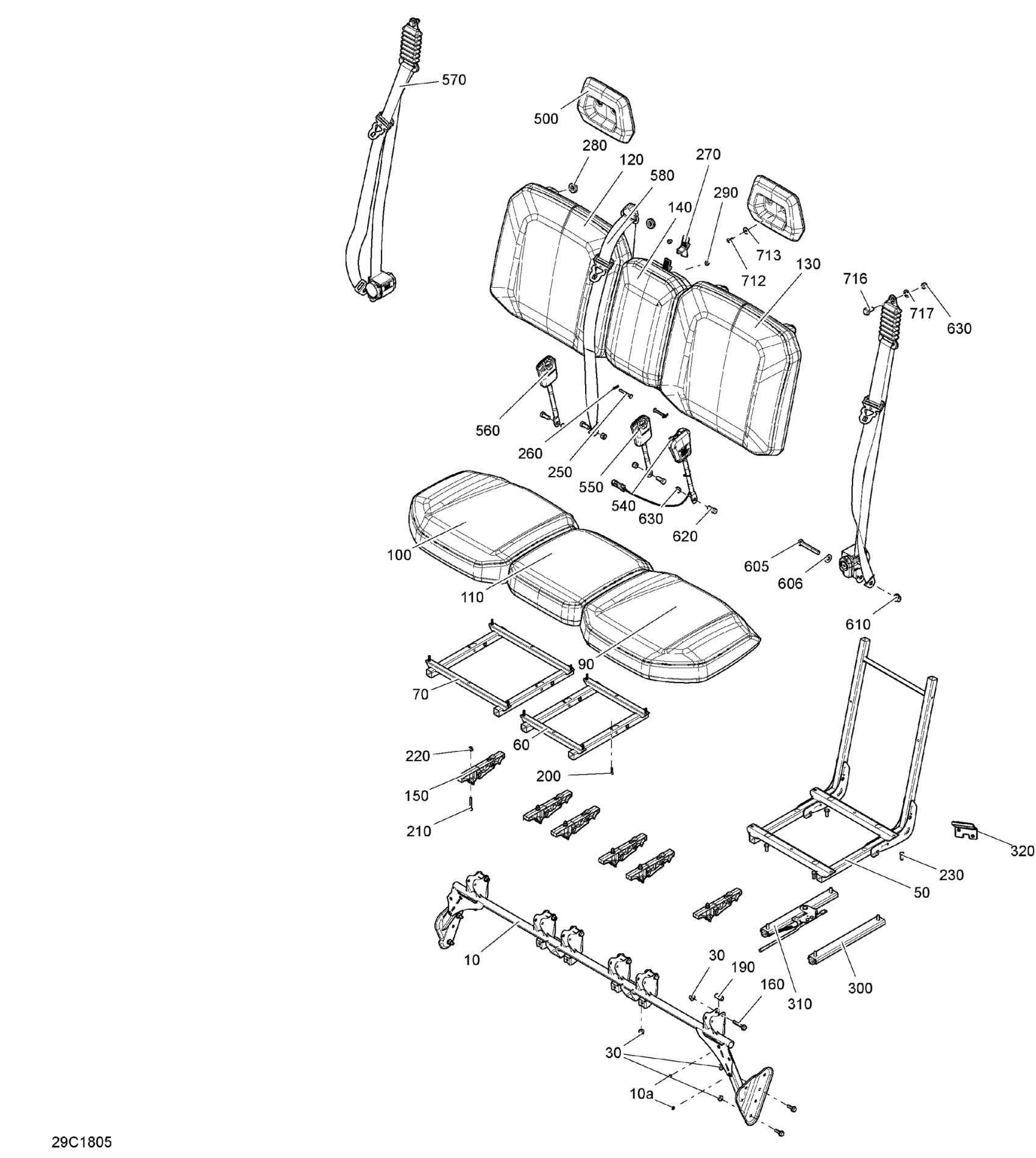

Can-Am 4- Traxter HD10 - XMR, 2018 09- Seat Traxter XMR - HD10 Diagram

Seat Member | Includes 10 to 10a8

Pop Rivet 3/16"

Hex. Flange Elastic Nut M8

Operator Seat Member | Includes 50 to 50a7

Pop Rivet 3/16"

Mid Seat Member

Passenger Seat Member

LH Seat Base Ass'y

RH Seat Base Ass'y

Central Seat Base Ass'y

Backrest Ass'y

Rubber Bumper

Backrest Ass'y | Includes 130 to 130d

Backrest Ass'y | Break Up Country Camo Models

Seat Base Pivot

Hex. Flange Screw M8 X 45

Hex. Flange Elastic Nut M8

Hex. Flange Elastic Nut M8

Bushing

Torx Screw Truss Head K50X20 T20

Hex. Screw M6 X 45

Hex. Flange Elastic Nut M6 x 1.0

Hex. Screw M8 X 20

Pin

Hairpin Cotter

Latch

Grommet

Rubber Bumper

LH Rail

RH Rail | Package XT, Cab

Seat Stopper

Pop Rivet 3/16"

Head Rest

Driver Buckle

Middle Buckle

Passenger Buckle

Lateral Safety Belt

Central Safety Belt

Hex. Screw M12 X 80

Flat Washer M12

Elastic Flange Nut M12

Hex. Cap Screw 7/16'' X 1'' | Europe

Lock Nut Nylon 7/16
