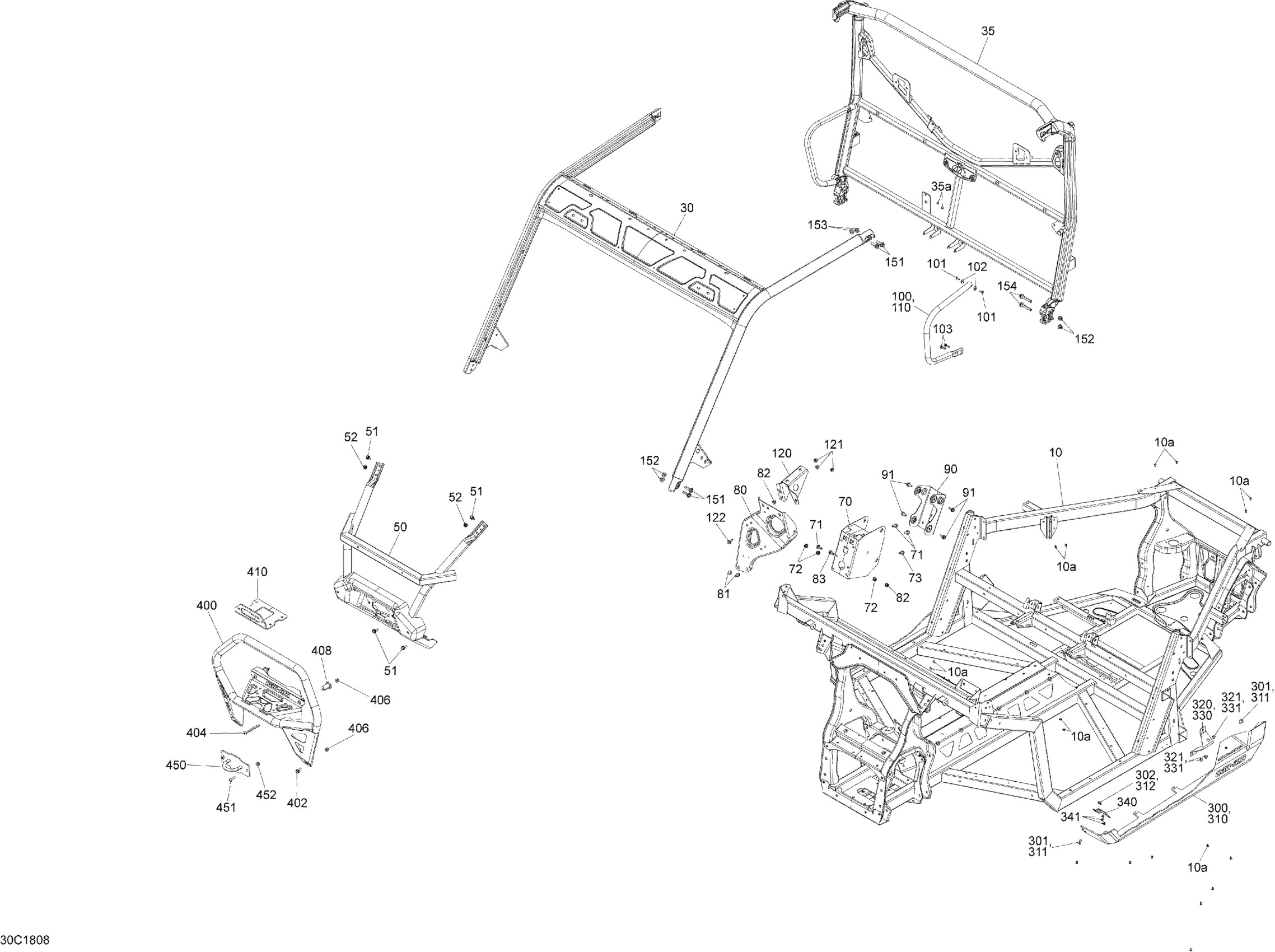

Can-Am 4- Traxter HD10 - XMR, 2018 09- Frame Defender Package XMR Diagram

#

Description
Price

10>10a

Frame Kit

715005592

$2,589.99

10a

Pop Rivet 3/16"

390402200

$0.35

30

Yellow, Front Cage Kit

715005558

$649.99

35>35a

Yellow, Rear Cage Kit | With Deep Black Cab

715005226

$649.99

35a

Pop Rivet 3/16"

390402200

$0.35

35

Black, Rear Cage Kit

715003569

$649.99

50

Deep Black, Front Bumper

705207588

$499.99

51

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.69

52

Hex. Flange Elastic Nut M8

233281414

$1.47

70

Plate

705206316

$55.99

71

Hex. Flange Screw M8 X 20

207682044

$1.15

72

Hex. Flange Elastic Nut M8

233281414

$1.47

73

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.69

81

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.69

82

Hex. Flange Elastic Nut M8

233281414

$1.47

83

Hex. Flange Screw M8 X 20

207682044

$1.15

90

Steering Column Support | Includes 90 to 90d

705209190

$37.99

91

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.69

100

Deep Black, LH Protector Tube

705204594

$44.49

100

Sunburst Yellow, LH Side Protector | With Sunburst Yellow Cab

705206478

$44.49

101

Torx Truss M6X14

250000789

$5.39

102

Offset Washer

705202223

$4.14

103

Hex. Flange Screw M6 X 20, Scotch Grip

207562034

$2.11

110

Deep Black, RH Protector Tube

705204592

$44.49

110

Sunburst Yellow, RH Side Protector | With Sunburst Yellow Cab

705206477

$48.49

120

Shifting Module Support

705205171

$30.99

121

Hex. Flange Elastic Nut M8

233281414

$1.47

122

Hex. Flange Screw M8 X 20

207682044

$1.15

300

Guard_Panel Lh B-354 Painted | Sunburst Yellow Models

705208690

$328.49

300

Black, LH Rock Slider Welded | Break Up Country Camo Models

705206482

$276.49

301

Torx Truss Screw M8 X 16

250000746

$3.38

302

Hex. Flange Nut M8

233181414

$1.15

310

Guard_Panel Rh B-354 Painted | Sunburst Yellow Models

705208691

$328.49

310

Deep Black, RH Guard Panel

705208687

$276.49

311

Torx Truss Screw M8 X 16

250000746

$3.38

312

Hex. Flange Nut M8

233181414

$1.15

320

LH Rock Slider Support

705206342

$45.99

321

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

330

RH Rock Slider Support

705206343

$45.99

331

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

340

Rock Slider Front Support

705206382

$19.99

341

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

400

XMR FRONT BUMPER - Call your local BRP dealership | Break Up Country Camo Models

715004405

Unavailable

400

XMR FRONT BUMPER - Call your local BRP dealership | Sunburst Yellow Models

715004406

Unavailable

402

Hex. Flange Screw M8 X 20

207682044

$1.15

404

Torx Truss M8 X 90

250000806

$7.51

406

Hex. Flange Elastic Nut M8

233281414

$1.47

408

Spacer

705207754

$14.49

410

Deepo Black, Winch Support | Includes 53a to 53a

705211620

$56.99

450

Painted Front Attachment

705206590

$34.99

451

Torx Screw M8 X 30

250000886

$2.11

452

Hex. Flange Elastic Nut M8

233281414

$1.47
