Description

Price

10

Deep Black, LH Upper Rear Suspension Arm

706004312

$201.49

10

Yellow LH Rear Upper Suspension Arm | Sunburst Yellow Models

706002870

$201.49

15

Deep Black, RH Upper Rear Suspension Arm

706004313

$201.49

15

Yellow RH Rear Upper Suspension Arm | Sunburst Yellow Models

706002871

$201.49

20

Deep Black, LH Lower Suspension Arm

706004577

$201.49

20

Yellow LH Rear Lower Suspension Arm | Sunburst Yellow Models

706002872

$201.49

25

Deep Black, RH Lower Suspension Arm

706004578

$201.49

25

Yellow RH Rear Suspension Lower Arm | Sunburst Yellow Models

706002873

$201.49

26

Grease Fitting

408200700

$3.49

35

Torsion Bar Link

706001898

$19.99

40

Stabilizer Bar Bushing

706004301

$8.04

42

Grease Fitting

408200700

$3.49

45

Clamp

706002592

$6.67

50

Linkage Cup

706002027

$12.99

55

Linkage Bushing

706002028

$7.34

60

SWAYBAR ASS'Y - Call your local BRP dealership

706003198

Unavailable

65

Hex Flange Screw DIN.6921 - Call your local BRP dealership

230600046

$3.17

70

Upper Bushing

706202197

$15.82

80

Hex. Flange Screw M10 X 70

207607046

$2.96

85

Suspension Arm Bushing

706204409

$9.10

90

Sleeve

706201590

$11.99

95

Hex Flange Screw M10 X 80

207608046

$6.69

100

Wear Plate

706201660

$0.95

138

Suspension Arm Bushing Kit | Includes 4

703500875

$16.33

140

Not Available As Spare Part - Friction Washer

Unavailable

150

Not Available As Spare Part - Friction Washer

Unavailable

160

Not Available As Spare Part - Friction Washer

Unavailable

162

Suspension Arm Bushing Kit | Includes 4

703500875

$16.33

165

Spacer

706204623

Unavailable

170

Hex. Flange Screw M10 X 25

207602544

$1.69

180

Hex. Flange Screw M10 X 6

207606046

$4.12

190

Hex. Flange Elastic Nut M10

233201436

$2.11

210

Rear Left Machined Knuckle

706002809

$206.49

220

Rear Right Machined Knuckle

706002811

$206.49

225

Hex. Flange Screw M10 X 70

207607046

$2.96

230

Hex. Flange Elastic Nut M10

233201436

$2.11

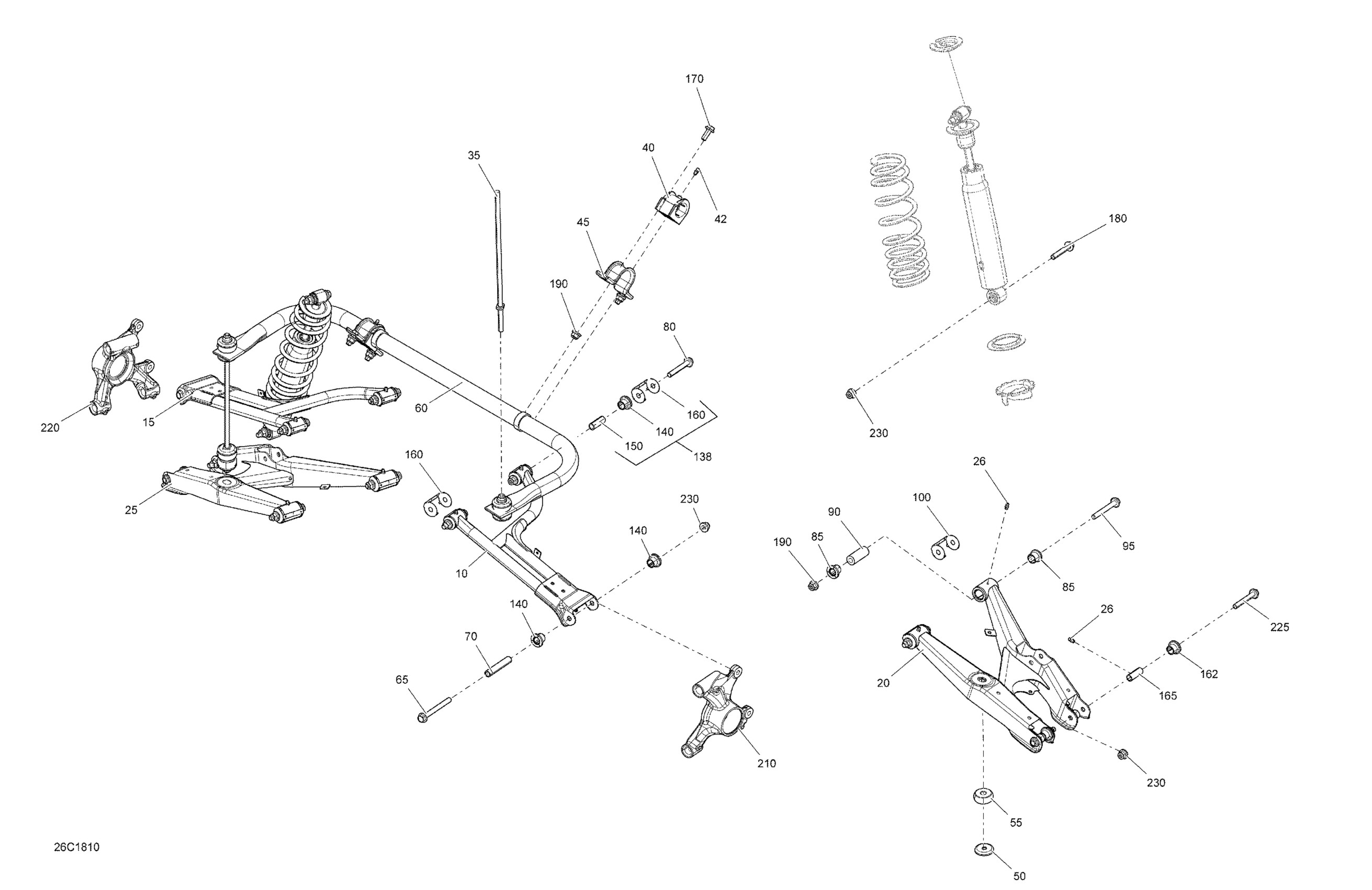

Can-Am 4- Traxter HD10 - XMR, 2018 08- Rear Suspension Defender - Package XMR Diagram

Deep Black, LH Upper Rear Suspension Arm

Yellow LH Rear Upper Suspension Arm | Sunburst Yellow Models

Deep Black, RH Upper Rear Suspension Arm

Yellow RH Rear Upper Suspension Arm | Sunburst Yellow Models

Deep Black, LH Lower Suspension Arm

Yellow LH Rear Lower Suspension Arm | Sunburst Yellow Models

Deep Black, RH Lower Suspension Arm

Yellow RH Rear Suspension Lower Arm | Sunburst Yellow Models

Grease Fitting

Torsion Bar Link

Stabilizer Bar Bushing

Grease Fitting

Clamp

Linkage Cup

Linkage Bushing

SWAYBAR ASS'Y - Call your local BRP dealership

Hex Flange Screw DIN.6921 - Call your local BRP dealership

Upper Bushing

Hex. Flange Screw M10 X 70

Suspension Arm Bushing

Sleeve

Hex Flange Screw M10 X 80

Wear Plate

Suspension Arm Bushing Kit | Includes 4

Not Available As Spare Part - Friction Washer

Not Available As Spare Part - Friction Washer

Not Available As Spare Part - Friction Washer

Suspension Arm Bushing Kit | Includes 4

Spacer

Hex. Flange Screw M10 X 25

Hex. Flange Screw M10 X 6

Hex. Flange Elastic Nut M10

Rear Left Machined Knuckle

Rear Right Machined Knuckle

Hex. Flange Screw M10 X 70

Hex. Flange Elastic Nut M10
