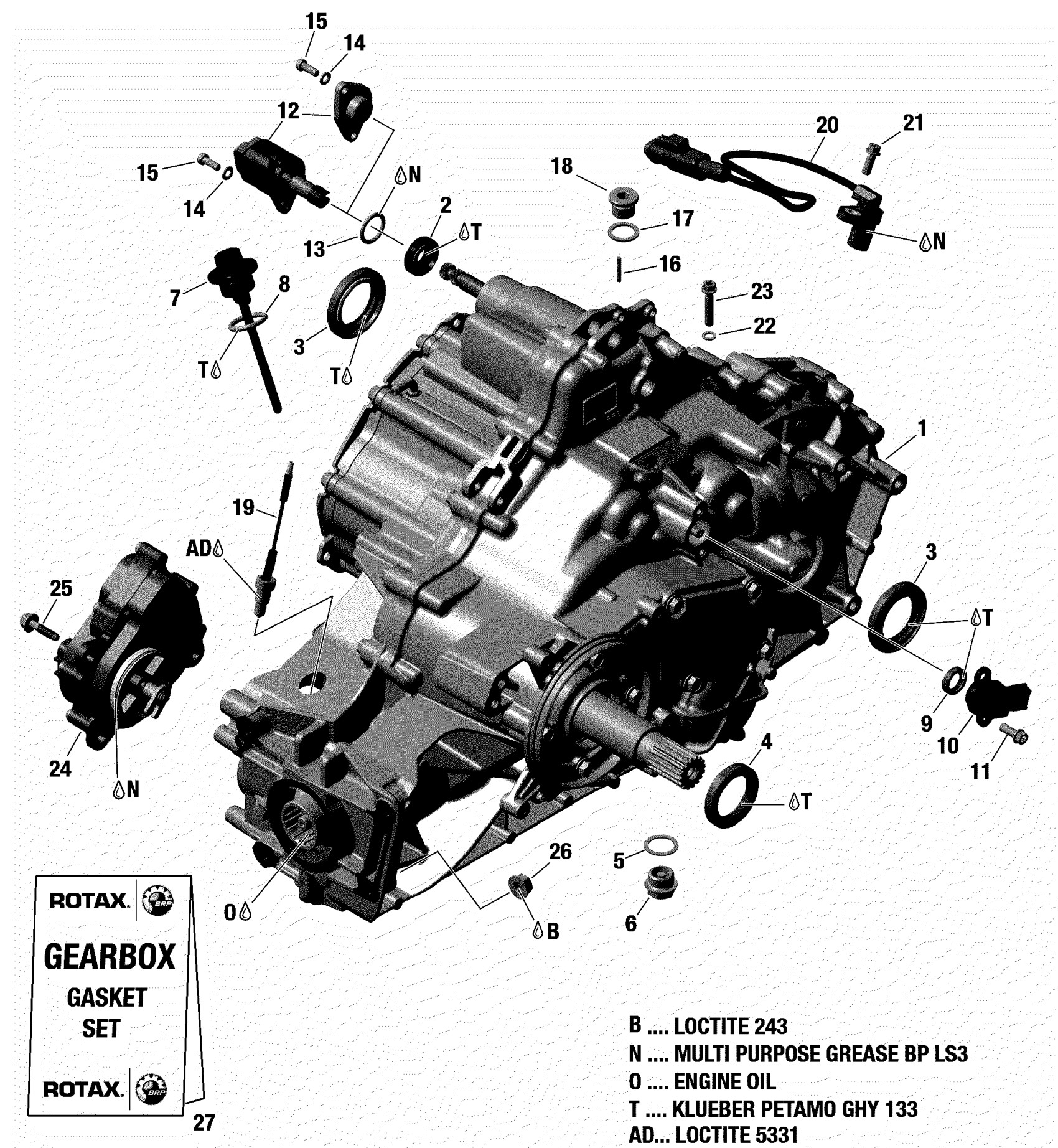

Can-Am 4- Traxter HD10 - XMR, 2018 05- Gear Box Assembly Diagram

#

Description
Price

1>23

Kit Gear Box | With Lockable Rear Differential

703501186

$3,269.99

1>23

Kit Gear Box | With Lockable Rear Differential

703501140

$3,299.99

1>23

Gear Box Ass'y | Without Lockable Rear Differential

420686756

$3,489.99

1>23

Kit Gear Box | Without Lockable Rear Differential

703501141

$3,299.99

2

Oil Seal

420250452

$17.59

3

Oil Seal

420831185

$19.99

4

Oil Seal

420950089

$19.49

5

Crush Washer

420552280

$3.70

6

Drain Plug M18 X 1.5

420840278

$23.99

7

Oil Dipstick

420256806

$17.05

8

O-Ring

420631640

$2.11

9

Oil Seal

420931802

$7.65

10

Angle Rotation Sensor

420666850

$204.99

11

Torx Flange Screw M6 X 16

420440162

$3.17

12

Servomotor | With Lockable Rear Differential

420265842

$222.49

12

Cover | Without Lockable Rear Differential

420427560

$49.99

13

O-Ring | Included in gasket set gearbox

420450450

$2.19

14

Washer 5.3

420927574

$1.90

15

Allen Screw M5 X 14

420240150

$2.19

16

Needle Pin

420932840

$3.17

17

O-Ring

420430622

$4.44

18

Plug Screw M16 X 1.5

420240234

$14.28

19

3 Position Switch

420640192

$42.49

20

Camshft Position Sensor Ass'y

420265727

$109.99

21

Torx Flange Screw M6 X 16

420440162

$3.17

22

Seal Washer

420230415

$1.79

23

Torx Flange Screw M6 X 30

420440647

$2.00

24>24c

Actuator Ass'y 3 pins | Includes 4 to 7

715900614

$284.99

24a

Shifting Fork

415129175

$16.49

24b

Circlip | 4X4

293370042

$3.17

24c

O-Ring

293300117

$4.44

25

Collar Screw M6 x 25

420441951

$2.19

26

Hex. Nut M8

420842619

$2.35

27

To be determined

TBD

Unavailable
