Description

Price

5000

LH Exterior Door Panel

705011479

$114.99

5010

Rubber Bumper

293830005

$8.09

5020

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

5030

Panel Nut M6 X 1.0

250100198

$2.11

5040

Torx Screw K50 X 16

250000720

$1.69

5100

RH Exterior Door Panel

705011480

$114.99

5200

White, LH Door Trim Panel | Package Base

705011481

$129.99

5200

Red, LH Door Trim Panel | DPS, Red Model

705012419

$189.99

5200

Yellow, LH Door Trim Panel | DPS, Yellow Model

705012421

$189.99

5200

Camo, LH Door Trim Panel | DPS, Camo Model

705012423

$189.99

5300

White, RH Door Trim Panel | Package Base

705011482

$129.99

5300

Red, RH Door Trim Panel | DPS, Red Model

705012420

$189.99

5300

Yellow, RH Door Trim Panel | DPS, Yellow Model

705012422

$189.99

5300

Camo, RH Door Trim Panel | DPS, Camo Model

705012424

$189.99

5400

LH Inner Door Panel Ass'y

715005003

$116.49

5410

Torx Screw K50 X 16

250000720

$1.69

5420

Torx Screw K50 X 16

250000720

$1.69

5500

RH Door Panel Ass'y

715006765

$109.99

5600

LH Opening Handle

705011585

$18.99

5700

RH Opening Handle

705011586

$18.99

5800

LH Door Frame | Includes 5800 to 5800a10

705800303

$154.99

5800a

Pop Rivet 3/16" | DS 650 X

390402000

$0.33

5810

Torx Screw K50 X 16

250000720

$1.69

5820

Insert Half Hex Body M8 x 1.25

293450307

$2.69

5830

Torx Truss Screw M6 X 16

250000721

$1.69

5840

Torx Screw M6 X 35

250000541

$2.11

5900

RH Door Frame | Includes 5900 to 5900a10

705800304

$154.99

5900a

Pop Rivet 3/16" | DS 650 X

390402000

$0.33

6000

Hinge

705013228

$26.99

6100

Lower Hinge Ajustement

705011629

$15.49

6150

Upper Hinge Ajustement

705012506

$15.49

6200

Hex. Flange Screw M8 X 16, Scotch Grip

207581646

$2.11

6300

Circlip | RS STD

705601030

$4.39

6400

Hex. Flange Screw, Scotch Grip

207582534

$1.90

6500

Handle Spring

705011630

$11.49

6600

Handle Axle

705206132

$14.49

6700

LH Locking Rod

705206133

$3.89

6750

RH Locking Rod

705206134

$3.89

6800

LH Tie Rod Clip

708300182

$2.89

6900

RH Tie Rod Clip

708300202

$2.89

7000

LH Latch

705013095

$43.99

7100

RH Latch

705013096

$43.99

7200

Flat Washer 8 mm, Nylon

234081100

$1.39

7900

LH Stricker Support

705207027

$26.99

8000

RH Stricker Support

705207028

$26.99

8300

Hex Torx Truss M8 X30

250000745

$3.17

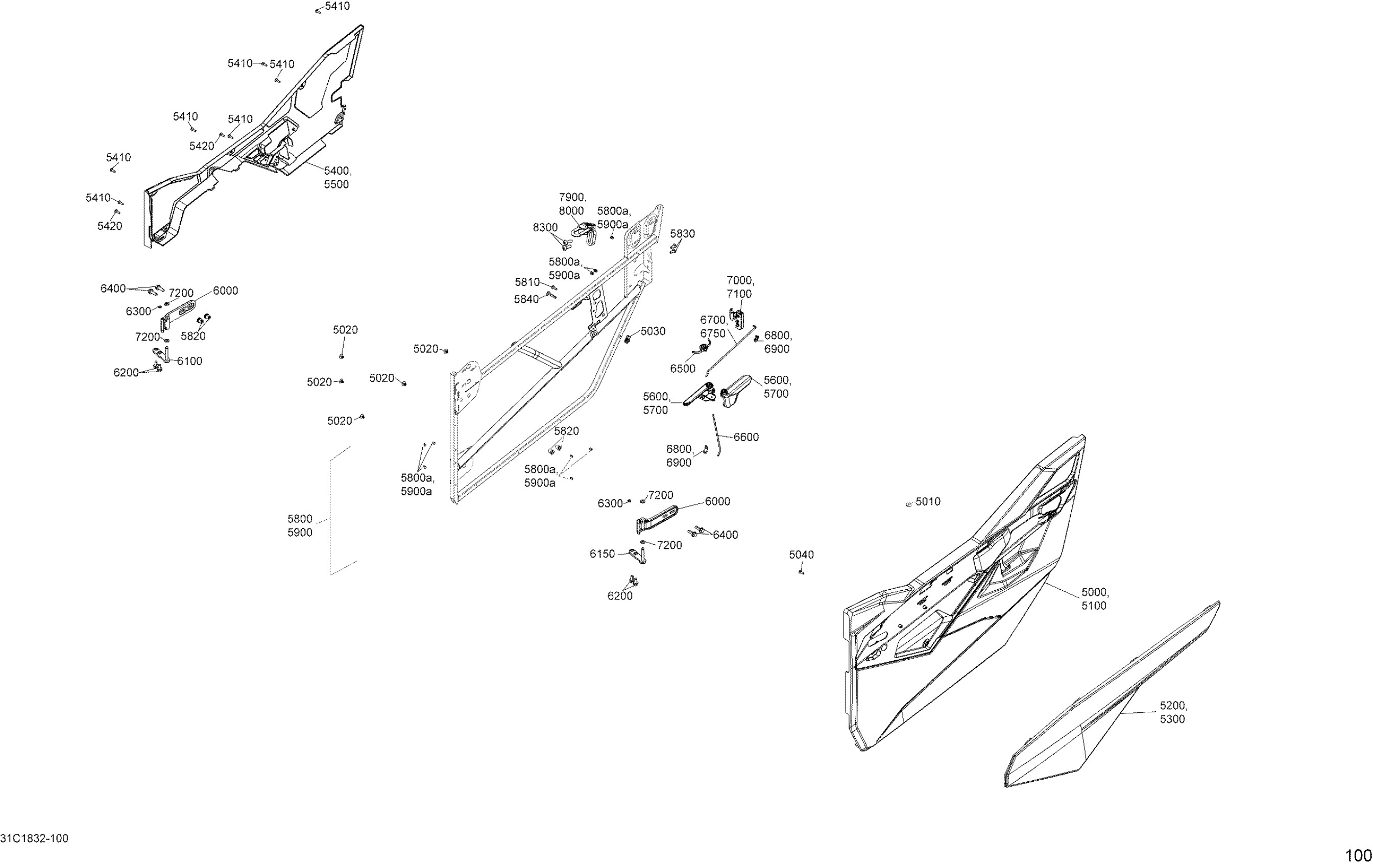

Can-Am 2- Maverick Trail 1000 EFI, 2018 09 - BODY, Doors Maverick Trail - 1000 EFI Diagram

LH Exterior Door Panel

Rubber Bumper

Pop Rivet 3/16" | DS 650 X

Panel Nut M6 X 1.0

Torx Screw K50 X 16

RH Exterior Door Panel

White, LH Door Trim Panel | Package Base

Red, LH Door Trim Panel | DPS, Red Model

Yellow, LH Door Trim Panel | DPS, Yellow Model

Camo, LH Door Trim Panel | DPS, Camo Model

White, RH Door Trim Panel | Package Base

Red, RH Door Trim Panel | DPS, Red Model

Yellow, RH Door Trim Panel | DPS, Yellow Model

Camo, RH Door Trim Panel | DPS, Camo Model

LH Inner Door Panel Ass'y

Torx Screw K50 X 16

Torx Screw K50 X 16

RH Door Panel Ass'y

LH Opening Handle

RH Opening Handle

LH Door Frame | Includes 5800 to 5800a10

Pop Rivet 3/16" | DS 650 X

Torx Screw K50 X 16

Insert Half Hex Body M8 x 1.25

Torx Truss Screw M6 X 16

Torx Screw M6 X 35

RH Door Frame | Includes 5900 to 5900a10

Pop Rivet 3/16" | DS 650 X

Hinge

Lower Hinge Ajustement

Upper Hinge Ajustement

Hex. Flange Screw M8 X 16, Scotch Grip

Circlip | RS STD

Hex. Flange Screw, Scotch Grip

Handle Spring

Handle Axle

LH Locking Rod

RH Locking Rod

LH Tie Rod Clip

RH Tie Rod Clip

LH Latch

RH Latch

Flat Washer 8 mm, Nylon

LH Stricker Support

RH Stricker Support

Hex Torx Truss M8 X30
