Description

Price

10

Fuel Tank Ass'y | Includes 10 to 10b

709001434

$429.99

10.002

Special Nut M130

250100062

$21.99

20

Gasket

293250173

$18.49

30

Fuel Pump | Includes 30 to 30b

709001056

$372.49

30.001

Fuel Filter

270600113

$33.99

30.002

Fuel Sender

715900424

$144.99

40

Fil Neck Hose

709000828

$31.99

50

Norma Clamp

293650081

$12.18

70

Filler Neck

709000867

$15.36

80

Filler Neck Nut, Fuel

211100012

$14.22

90

Fuel Cap

709000868

$32.99

130

Tank Bracket

709000997

$5.39

140

Hex. Flange Screw M6 X 16

207661644

$0.74

150

Hex. Flange Screw M6 X 25

207662554

$1.48

160

Hex. Flange Elastic Nut M6

233261466

$2.00

165

Bushing | DS 650 X

293900104

$5.50

170

Washer M6

250200029

$2.50

200

Was 709000163 Fuel Line

219704440

$28.99

210

Y-Fitting, 5/16''

293710136

$6.49

220

Was 709000163 Fuel Line

219704440

$28.99

230

Was 709000163 Fuel Line

219704440

$28.99

235

Tubing 16 Mm 1000Mm Long

219704408

$7.49

236

Tie-Rap 180 mm

414115200

$0.11

250

Tubing 16 Mm 1000Mm Long

219704408

$7.49

255

Tie Wrap 368 mm

293750008

$1.04

260

Tie-Rap 180 mm

414115200

$0.11

300

Crimp Clamp, 15.3-706R

293650047

$3.29

310

Crimp Clamp, 15.3-706R

293650047

$3.29

320

Crimp Clamp, 15.3-706R

293650047

$3.29

330

Crimp Clamp, 15.3-706R

293650047

$3.29

340

Crimp Clamp, 15.3-706R

293650047

$3.29

350

Crimp Clamp, 15.3-706R

293650047

$3.29

400

Quick Attach 90°

275500700

$16.49

410

Quick Attach 90°

275500700

$16.49

420

Quick Disconnect

275500921

$16.49

535

Oetiker Clamp

293650042

$3.09

540

Hose 6.35Mm 5000Mm Long

219704611

$194.99

545

Y-Fitting

293710059

$9.69

550

Hose 6.35Mm 5000Mm Long

219704611

$194.99

552

Tie-rap Double Head 305mm

293750078

$5.99

555

Oetiker Clamp

293650042

$3.09

560

Check Valve

513033469

$31.99

565

Check Valve

275500398

$10.99

570

Hose 6.35Mm 5000Mm Long

219704611

$194.99

575

Oetiker Clamp

293650042

$3.09

580

Y-Fitting

293710059

$9.69

585

Oetiker Clamp

293650042

$3.09

800.001

Formed Hose

709000879

$16.65

800.002

Oetiker Clamp

293650186

$3.99

800.003

Air Filter

709000524

$45.99

800.006

Oetiker Clamp

293650186

$3.99

800.007

Formed Hose

709000957

$16.65

800.008

Crimp Clamp

293650053

$3.09

800.009

Vapor Canister | EVAP Models

709000806

$93.99

800.01

Canister Support | EVAP Models

709000851

$5.29

800.011

Tridon Clamp

293650054

$9.49

800.012

Hex. Elastic Stop Nut M6

232561600

$1.15

800.013

Support

709000936

$4.69

800.014

Torx Screw M6 X 20

250000712

$2.11

800.02

Oetiker Clamp

293650042

$3.09

800.021

Formed Hose

709000853

$17.49

800.022

Oetiker Clamp

293650046

$2.89

800.023

Fuel Filter

513034047

$21.99

800.024

Crimp Clamp, 15.3-706R

293650047

$3.29

800.025

Formed Hose

709000857

$17.49

800.026

Crimp Clamp, 15.3-706R

293650047

$3.29

800.027

Bleed Valve

709000443

$73.99

800.028

Crimp Clamp, 15.3-706R

293650047

$3.29

800.029

Formed Hose

709000881

$16.65

800,03a

Tubing 16 Mm 1000Mm Long

219704408

$7.49

800.031

Crimp Clamp

293650053

$3.09

800.032

Check Valve

275500941

$25.99

800.033

Crimp Clamp

293650053

$3.09

800.034

Hose

709000882

$16.65

800.035

Crimp Clamp

293650053

$3.09

800.036

Flow Reducer

709000933

$4.12

800.037

Crimp Clamp, 15.3-706R

293650047

$3.29

800.038

Formed Hose

709000883

$18.49

800.045

Oetiker Clamp

293650046

$2.89

800.046

Hose 6.35Mm 5000Mm Long

219704611

$194.99

800.047

Tubing 16 Mm 1000Mm Long

219704408

$7.49

800.048

Tie Wrap 142 mm

293750002

$1.25

800.055

Extension Wiring Harness

710005866

$27.99

820

Filter Support

709000935

$3.29

830

Hex. Flange Screw M6 X 25

207662554

$1.48

831

Clip Tie-Rap

293750063

$8.75

832

Clip Tie-Rap

293750063

$8.75

860

Hex. Flange Screw M6 X 16

207661654

$2.11

870

Flat Washer M6.6 X 22

250200162

$2.32

900

Norma Spring Clamp

293650214

$15.89

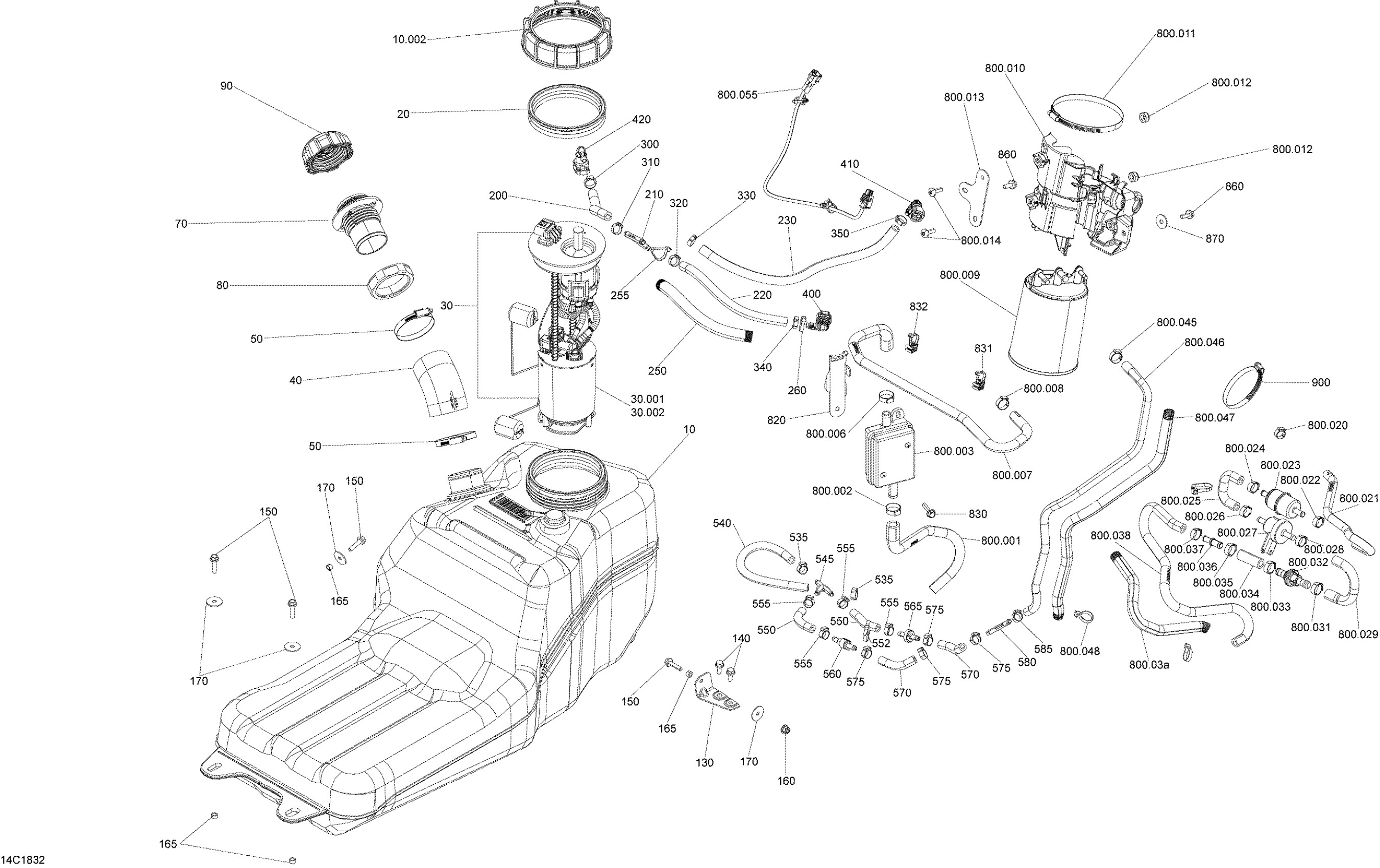

Can-Am 2- Maverick Trail 1000 EFI, 2018 02- Fuel Maverick Trail - EVAP Model Diagram

Fuel Tank Ass'y | Includes 10 to 10b

Special Nut M130

Gasket

Fuel Pump | Includes 30 to 30b

Fuel Filter

Fuel Sender

Fil Neck Hose

Norma Clamp

Filler Neck

Filler Neck Nut, Fuel

Fuel Cap

Tank Bracket

Hex. Flange Screw M6 X 16

Hex. Flange Screw M6 X 25

Hex. Flange Elastic Nut M6

Bushing | DS 650 X

Washer M6

Was 709000163 Fuel Line

Y-Fitting, 5/16''

Was 709000163 Fuel Line

Was 709000163 Fuel Line

Tubing 16 Mm 1000Mm Long

Tie-Rap 180 mm

Tubing 16 Mm 1000Mm Long

Tie Wrap 368 mm

Tie-Rap 180 mm

Crimp Clamp, 15.3-706R

Crimp Clamp, 15.3-706R

Crimp Clamp, 15.3-706R

Crimp Clamp, 15.3-706R

Crimp Clamp, 15.3-706R

Crimp Clamp, 15.3-706R

Quick Attach 90°

Quick Attach 90°

Quick Disconnect

Oetiker Clamp

Hose 6.35Mm 5000Mm Long

Y-Fitting

Hose 6.35Mm 5000Mm Long

Tie-rap Double Head 305mm

Oetiker Clamp

Check Valve

Check Valve

Hose 6.35Mm 5000Mm Long

Oetiker Clamp

Y-Fitting

Oetiker Clamp

Formed Hose

Oetiker Clamp

Air Filter

Oetiker Clamp

Formed Hose

Crimp Clamp

Vapor Canister | EVAP Models

Canister Support | EVAP Models

Tridon Clamp

Hex. Elastic Stop Nut M6

Support

Torx Screw M6 X 20

Oetiker Clamp

Formed Hose

Oetiker Clamp

Fuel Filter

Crimp Clamp, 15.3-706R

Formed Hose

Crimp Clamp, 15.3-706R

Bleed Valve

Crimp Clamp, 15.3-706R

Formed Hose

Tubing 16 Mm 1000Mm Long

Crimp Clamp

Check Valve

Crimp Clamp

Hose

Crimp Clamp

Flow Reducer

Crimp Clamp, 15.3-706R

Formed Hose

Oetiker Clamp
