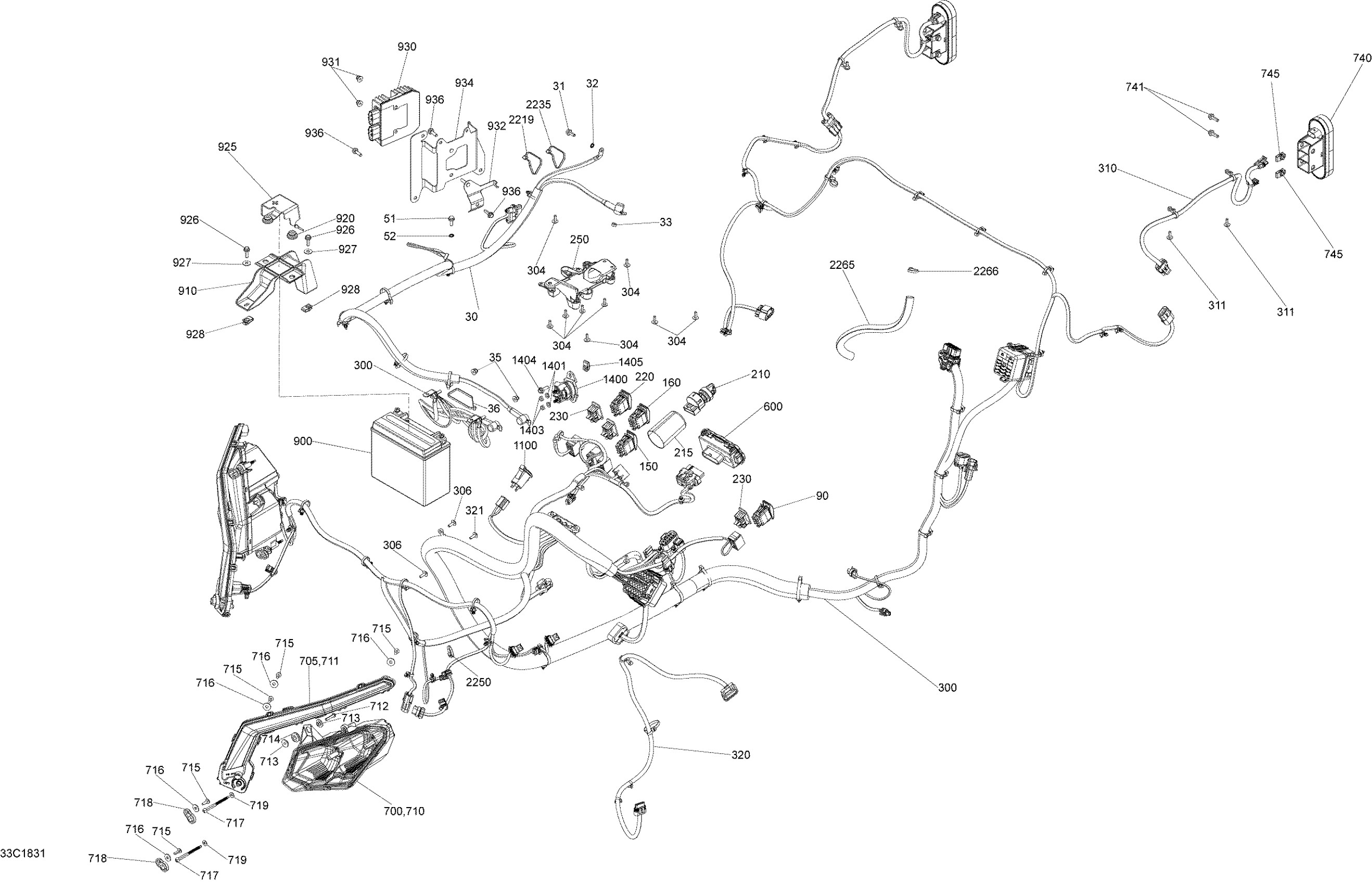

Can-Am 1- Maverick Trail 800R EFI, 2018 10- Electrical Maverick Trail Diagram

#

Description
Price

30

Negative/starter

710005361

$98.99

31

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.90

32

External Serrated Lock Washer 6 mm

234461608

$1.15

33

Elastic Stop Nut M6

232561414

$0.55

35

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

36

Tie Wrap 368 mm

293750008

$1.04

51

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.90

52

External Serrated Lock Washer 6 mm

234461608

$1.15

90

Light Switch

710004492

$47.49

150

2 X 4 Switch

710004814

$31.99

160

Differential Lock Switch

710005470

$46.49

210

Inter Allumage *Ignition

710007870

$55.99

210a

Key, Groove on Right Side

715900029

$26.49

210a

Key, Groove on Left Side

715900019

$26.49

215

Key Switch Protector

710005739

$2.69

220

Driving Mode Switch

710005909

$36.49

230

Plug Carling | Australia, Brazil, Europe, Japan

710007173

$8.85

250

Housing Support

710005672

$10.49

300

Main Harness Ass'y

710005362

$1,449.99

304

Screw PT Type K-50 X 16

250000959

$2.11

306

Screw PT Type K-50 X 16

250000959

$2.11

310

Rear Harness

710005363

$43.99

311

Screw PT Type K-50 X 16

250000959

$2.11

320

Trottle Pedal Harness

710005929

$239.99

321

Screw PT Type K-50 X 16

250000959

$2.11

600

Speedometer | Includes 600 to 600b

710005553

$339.99

700>700a

LH Headlamp | Includes 700 TO 700a

710006422

$199.99

700a

Bulb 12V 55W

715900141

$41.49

705

LH Fascia Trim

705011485

$43.99

710

RH Headlamp

710006423

$199.99

710>710a

LH Signature Beam

710004994

$169.99

710a

Bulb 12V 55W

715900141

$41.49

711

RH Fascia Trim

705011486

$43.99

711

RH Signature Beam

710004995

$169.99

712

Hex. Flange Screw K50 X 2.24 X 25

241152540

$4.44

713

Shoulder Bushing

710004749

$2.69

714

Grommet

709000582

$4.69

715

Torx Screw K50 X 16

250000720

$1.69

716

Stainless Steel Flat Washer

234062670

$2.11

717

Ajustment Screw

710005837

$6.35

718

Adjustment Guide

710005097

$9.59

719

O-Ring

293300192

$4.92

740

Tail Light

710004497

$111.49

741

Hex. Flange Screw M6 X 20, Scotch Grip

207562034

$2.11

745

Panel Nut M6 X 1.0

250100198

$2.11

900

Battery Ass'y, 18 Amperes | XT Models, Includes 72 To 73

410301203

$154.99

910

Fixation Plate

710005673

$13.49

920

Stopper Rubber

705014429

$5.95

925

Battery Cable Cap

710005930

$10.49

926

Hex. Flange Screw M6 X 20

207662054

$1.01

927

Stainless Steel Flat Washer

234062670

$2.11

928

Panel Nut M6 X 1.0

250100198

$2.11

930

Voltage Regulator

710005842

$189.99

931

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

932

Voltage Regulator Attach

710006120

$9.59

934

Voltage Regulator Support

710006119

$11.99

936

Hex. Flange Screw S.Grip M6 X 20

207562054

$2.11

1100

12V Power Outlet

710005374

$33.99

1400

Starter Relay

278003012

$42.49

1401

Lock Washer Helical M6

234161601

$1.15

1403

Hex. Nut M6

232061600

$1.15

1404

Hex. Flange Screw M6 X 20

207662054

$1.01

1405

Panel Nut M6 X 1.0

250100198

$2.11

2219

Tie Wrap 368 mm

293750008

$1.04

2235

Tie Wrap 368 mm

293750008

$1.04

2250

Tie-Rap 180 mm

414115200

$0.11

2265

Tubing 16 Mm 1000Mm Long

219704408

$7.49

2266

Tie-Rap 180 mm

414115200

$0.11
