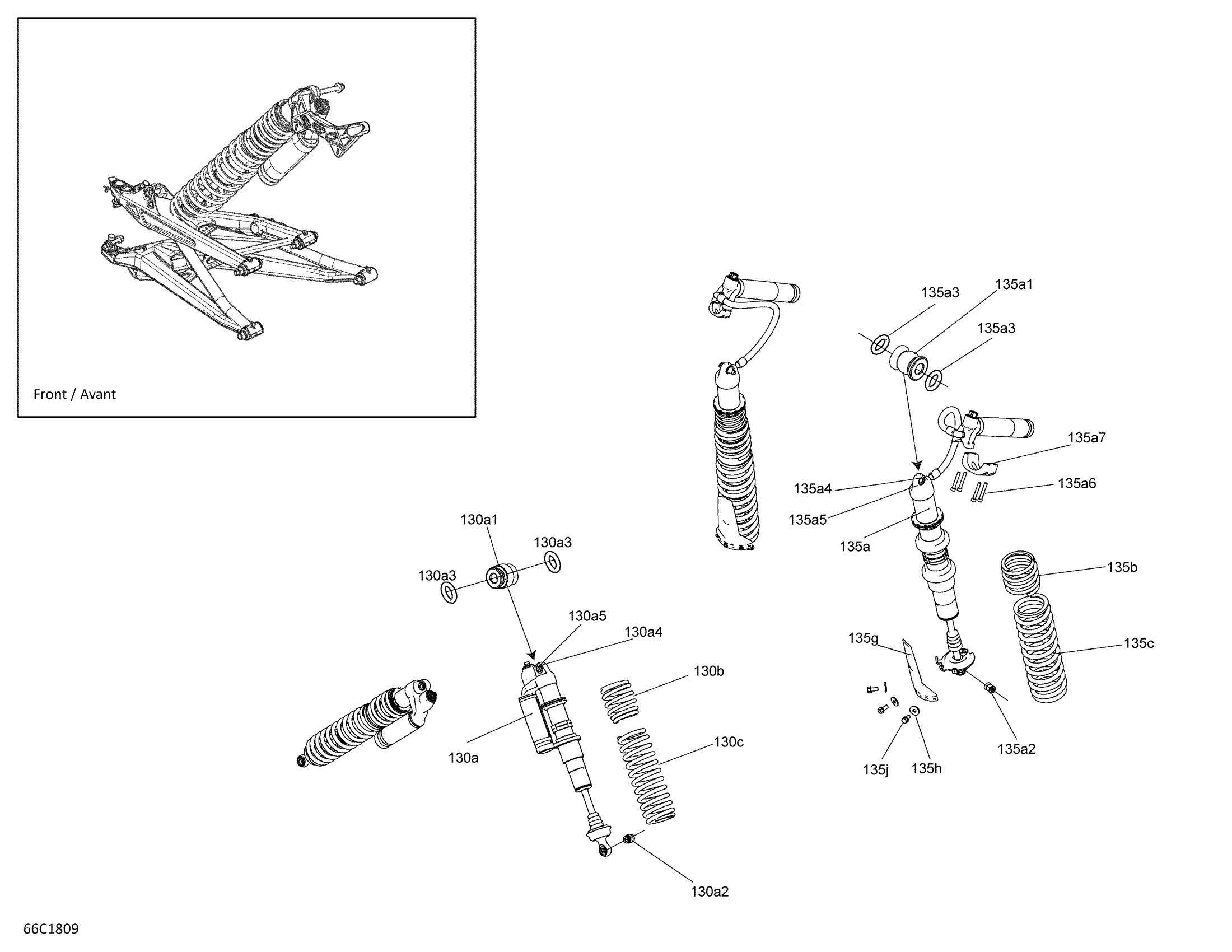

Can-Am 92- Maverick X3 MAX Turbo R - XRS DPS - with Smart-Lok, 2018 07- Shocks Maverick X3 MAX - Turbo R - XRSDPS Diagram

Description

Price

130a

FRONT SHOCK - Call your local BRP dealership | XRSDPS Package, Liquid Gold

706202794

Unavailable

130a

FRONT SHOCK - Call your local BRP dealership | XRSDPS Package, Liquid Gold

706202795

Unavailable

130a

LH Front Shock | XRSDPS Package, Timeless Black Metallic

706202858

$1,179.99

130a

RH Front Shock | XRSDPS Package, Timeless Black Metallic

706202859

$1,159.99

130a1

Spherical Bearing

715900337

$84.99

130a2

Ball Joint

706004078

$47.49

130a3

O-Ring Bushing

715900338

$12.63

130a4

Circlip

715900480

$11.49

130a5

Reducer

715900481

$27.99

130b

Red, Front Spring | XRSDPS Package, Liquid Gold

706202766

$121.99

130b

SPRING - Call your local BRP dealership | XRSDPS Package, Timeless Black Metallic

706202697

Unavailable

130c

Can-Am Red, Front Spring | XRSDPS Package, Liquid Gold

706202796

$153.49

130c

Black Front Spring | XRSDPS Package, Timeless Black Metallic

706202790

$153.49

135a

Rear Shock | XRSDPS Package, Liquid Gold

706002671

$1,529.99

135a

Rear Shock | XRSDPS Package, Timeless Black Metallic

706002672

$1,529.99

135a1

Spherical Bearing

715900337

$84.99

135a2

Ball Joint

706004078

$47.49

135a3

O-Ring Bushing

715900338

$12.63

135a4

Circlip

715900480

$11.49

135a5

Reducer

715900481

$27.99

135a6

Screw M6 X 35

715900521

$5.29

135a7

Réservoir Clamp

715900522

$38.99

135a8

Preload Ring

715900605

$26.99

135a9

Preload Ring Backup

715900606

$26.99

135a10

Spring Adapter

715900607

$13.99

135a11

Crossover ring

715900608

$124.99

135a12

Spring Retainer

715900597

$36.99

135a13

Spring Coupler

715900593

$99.99

135b

SPRING - Call your local BRP dealership | XRSDPS Package, Liquid Gold

706002675

Unavailable

135b

SPRING - Call your local BRP dealership | XRSDPS Package, Timeless Black Metallic

706002669

Unavailable

135c

Rear Spring | XRSDPS Package, Liquid Gold

706002674

$153.49

135c

Black Rear Spring | XRSDPS Package, Timeless Black Metallic

706002668

$153.49

135g

Protector

706202215

$11.99

135h

Washer M5

250200025

$0.74

135j

Hex Flange Screw M5 X 11

210251150

$2.11
