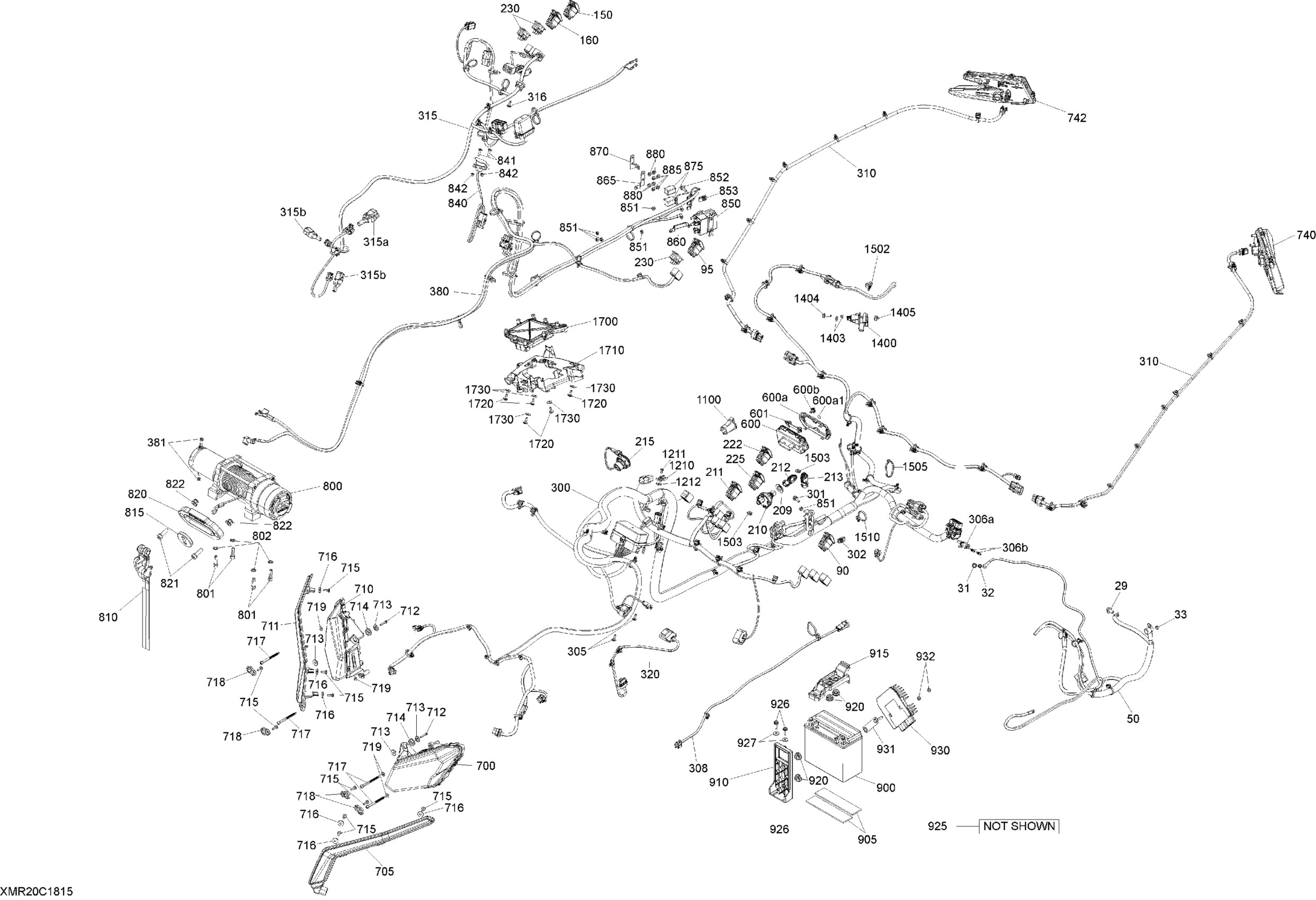

Can-Am 7- Maverick X3 Turbo R - XMR, 2018 10- Electrical Maverick X3 XMR Diagram

Hex. Flange Screw M8 X 16, Scotch Grip

207581644

$1.15

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.90

External Serrated Lock Washer 6 mm

234461608

$1.15

Elastic Stop Nut M6

232561414

$0.55

Starter Cable

710004863

$84.99

Light Switch

710004492

$47.49

Switch Winch

710002052

$28.49

Differential Switch

710006040

$31.99

Differencial Mode Switch

710005903

$31.99

Safety Nut (DESS Switch)

278002963

$3.28

Terminal Dess One-Wire | Except Model Europe

515178840

$83.49

Switch DPS

710001781

$22.99

Grey Key RFID | Except Model Europe, Except T3

710004964

$63.49

Green Key RFID | Except Model Europe, Except T3

710005232

$63.49

Start-Stop Button | Not Shown

710005213

$60.49

Switch PPS Sport

710003541

$19.49

Switch, Over ride

710002053

$19.49

Plug Carling | Australia, Brazil, Europe, Japan

710007173

$8.85

Harness-Ass'y

710005788

$809.99

Hex. Flange Screw S.Grip M6 X 20

207562054

$2.11

Panel Nut M6 X 1.0

250100198

$2.11

Screw PT Type K-50 X 16

250000959

$2.11

Connector Plug | Includes 306 to 306b

710005956

$3.59

Male Connector, 2 Circuits

278000220

$15.49

Wire Seal

278000216

$3.19

Rear Harness

710004776

$229.99

Diff Harness | Includes 315 to 315b

710005778

$214.99

Housing Cap

710005774

$3.29

Housing Cap

710005775

$3.29

Screw PT Type K-50 X 16

250000959

$2.11

Cable Throttle Pedal

710005291

$239.99

Winch Cable

710005815

$110.99

Elastic Stop Nut M6

232561434

$1.99

Speedometer | Includes 600 to 600a

710006334

$439.99

Lens | XTP

415129349

$24.49

Speedometer Button | XTP

415129355

$15.80

LH Front Auxiliary LED Light

710008811

$459.99

LH Signature Beam

710004994

$169.99

RH Front Auxiliary LED Light

710008812

$449.99

RH Signature Beam

710004995

$169.99

Hex. Flange Screw K50 X 2.24 X 25

241152540

$4.44

Shoulder Bushing

710004749

$2.69

Grommet

709000582

$4.69

Torx Screw K50 X 16

250000720

$1.69

Stainless Steel Flat Washer

234062670

$2.11

Ajustment Screw

710005837

$6.35

Adjustment Guide

710005097

$9.59

O-Ring

293300192

$4.92

LH Tail Light

710004743

$134.99

RH Tail Light

710004744

$134.99

Electric Winch

710006990

$763.49

Socket Head Screw M8 X 30

205083044

$1.15

Lock Washer 8 mm

234181401

$0.92

Winch Hook Kit

705014949

$24.99

Stopper

710007028

$3.82

Winch Rope Guide Kit

715006426

$61.49

Socket Screw M10 x 30 | XT

205003044

$3.17

Hex. Flange Elastic Nut M10

233201414

$1.58

Remote Control & Connector_Winch Kit | Winch Equipped Model

715006504

$26.49

Hex. Flange Screw M5 X 20, Scotch Grip

207552044

$5.19

Panel Nut M5 X 0.8

250000958

$4.23

Solenoid

710006991

$62.49

Elastic Stop Nut M6, Brass

232561200

$4.23

Hex. Flange Screw M6 X 20, Scotch Grip

207562034

$2.11

Panel Nut M6 X 1.0

250100198

$2.11

Power Bar

710004772

$12.16

Power Bar

710004872

$12.16

Power Bar

710004873

$12.16

Circuit Breaker 50 Amp

710007039

$19.49

Hex. Flange Nut M5

250100071

$2.11

Lock Washer Helical M6

234161601

$1.15

Battery Ass'y, 18 Amperes | XT Models, Includes 72 To 73

410301203

$154.99

Battery Bolt Kit

250000282

$7.29

Rubber Pad

293830126

$13.76

Fixation Plate

710004788

$11.49

Fixation Plate

710004789

$9.29

Stopper Rubber

705014429

$5.95

Threaded Insert M6 X 1.0

250100242

Unavailable

Hex. Flange Screw S.Grip M6 X 20

207562054

$2.11

Flat Washer 6 mm

234062410

$0.77

Voltage Regulator

710005842

$189.99

Bracket

710005782

$14.49

Elastic Stop Nut M6

232561414

$0.55

12V Power Outlet

710005374

$33.99

Clip

270000141

$11.49

Washer | DS 650 X

391301600

$0.48

Starter Relay

278003012

$42.49

Elastic Stop Nut M6, Brass

232561200

$4.23

Hex. Flange Screw S.Grip M6 X 20

207562054

$2.11

Panel Nut M6 X 1.0

250100198

$2.11

2-Pieces Fixing Tie Rap for Edges | Not Shown

293750058

$6.45

Front Drive Module

710006479

$479.99

FDM Support

710005807

$8.60

Screw PT Type K-50 X 16

250000959

$2.11

Washer M5

250200025

$0.74

Pop Rivet 3/16"

390402300

$0.75

Tie Wrap 94 mm | 4X4

293750001

$1.03

Tie Wrap 368 mm

293750008

$1.04

Dart Tie Rap 200MM

710003168

$7.09
