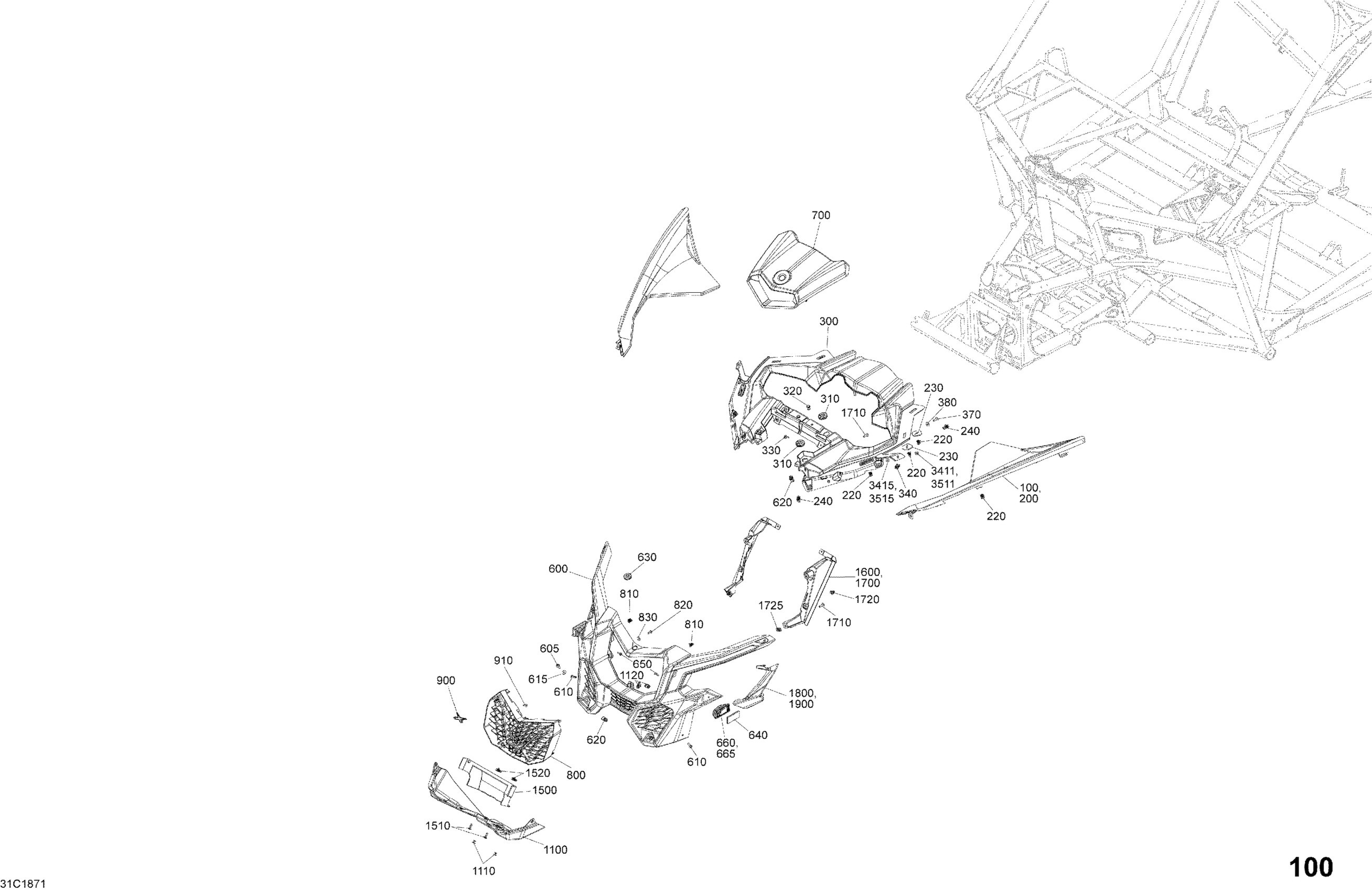

Can-Am 5- Maverick X3 Turbo R - STD_XDS DPS_XRS DPS, 2018 09- Body Parts - Liquid Gold - Package Xrs DPS - Front Section Diagram

Description

Price

100

Gold, LH Front Fender | Model Gold

705011092

$204.99

200

Gold, RH Front Fender | Model Gold

705011093

$204.99

220

Edge Clip

517302785

$0.88

230

Support Plate

705003841

$0.99

240

Panel Nut M6 X 1.0

250100198

$2.11

300

Central Hood

705014684

$75.99

310

Grommet

705010718

$2.69

320

Tuflok Plastic Rivet

293150230

$1.47

330

Torx Screw M6 X 20

250000722

$1.68

340

Panel Nut M6 X 1.0

250100198

$2.11

370

Torx Screw M6 X 20

250000722

$1.68

380

Stainless Steel Flat Washer

234062670

$2.11

600

Front Facia

705009508

$74.99

605

Torx Screw M6 X 20

250000722

$1.68

610

Torx Screw M6 X 20

250000722

$1.68

615

Stainless Steel Flat Washer

234062670

$2.11

620

Panel Nut M6 X 1.0

250100198

$2.11

630

Grommet

517303756

$4.09

640

Amber, Reflector

520000271

$19.99

650

Torx Screw K50 X 16

250000720

$1.69

660

LH Reflector Support

705011806

$4.09

665

RH Reflector Support

705011814

$4.09

700

Gold, Facia cover | Model Gold

705011097

$189.99

800

Radiator Front Grille

703501021

$51.99

810

Edge Clip

517302785

$0.88

820

Torx Screw K50 X 16

250000720

$1.69

830

Washer M5

250200025

$0.74

900

Logo | Except Model X3

705010885

$11.99

910

Screw M4 X 16

250000725

$3.49

1100

Front Deflector

705009978

$76.99

1110

Pop Rivet 3/16"

293150103

$0.55

1120

Panel Nut M6 X 1.0

250100198

$2.11

1500

Lower Radiator deflector

705010742

$20.99

1510

Torx Screw M6 X 20

250000722

$1.68

1520

Panel Nut M6 X 1.0

250100198

$2.11

1600

LH Front Radiator Deflector

705017559

$20.99

1700

RH Front Radiator Deflector

705017560

$20.99

1710

Torx Screw M6 X 20

250000722

$1.68

1720

Edge Clip

517302785

$0.88

1725

Panel Nut M6 X 1.0

250100198

$2.11

1800

LH Light Cover

705010628

$33.99

1900

RH Headlight Trim

705017566

$33.99

3411

Torx Screw M6 X 20

250000712

$2.11

3415

Hex. Flange Elastic Nut M6

233261494

$1.58

3511

Torx Screw M6 X 20

250000712

$2.11

3515

Hex. Flange Elastic Nut M6

233261494

$1.58
