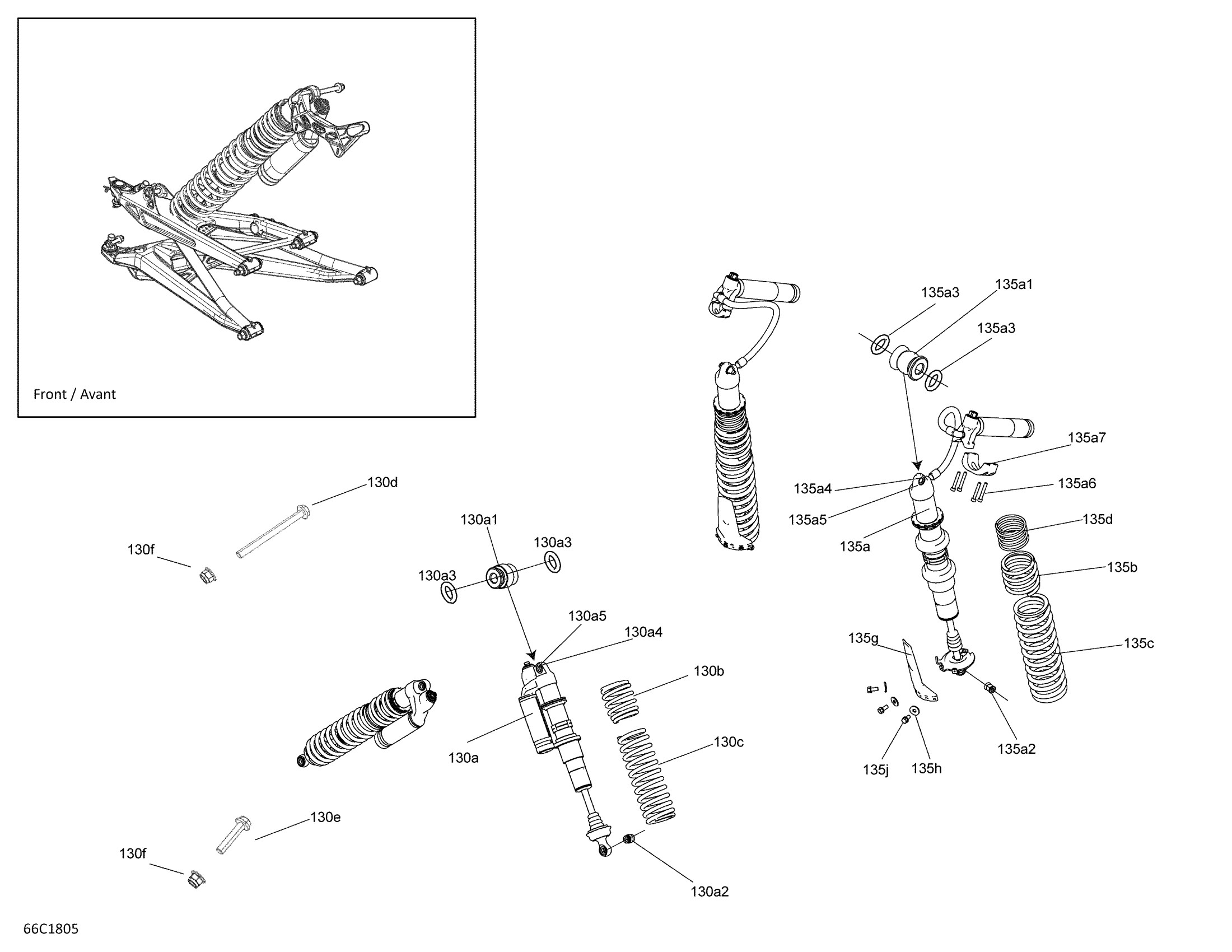

Can-Am 5- Maverick X3 Turbo R - STD_XDS DPS_XRS DPS, 2018 07- Shocks Maverick X3 - Turbo R - XRSDPS Diagram

Description

Price

130a

LH Front Shock | Model X3 Xrs Gold

706202380

$1,179.99

130a

FRONT SHOCK - Call your local BRP dealership | Model X3 Xrs Gold

706202383

Unavailable

130a

LH Front Shock | Model X3 Xrs Black

706202856

$1,159.99

130a

RH Front Shock | Model X3 Xrs Black

706202857

$959.99

130a1

Spherical Bearing

715900337

$84.99

130a2

Ball Joint

706004078

$47.49

130a3

O-Ring Bushing

715900338

$12.63

130a4

Circlip

715900480

$11.49

130a5

Reducer

715900481

$27.99

130b

Front Spring | Model X3 Xrs Gold

706203033

$100.49

130b

SPRING - Call your local BRP dealership | Model X3 Xrs Black

706203056

Unavailable

130c

Red, Front Spring | Model X3 Xrs Gold

706202381

$126.99

130c

Black, Front Spring | Model X3 Xrs Black

706202696

$163.99

135a

SHOCK - Call your local BRP dealership | Model X3 Xrs Gold

706002234

Unavailable

135a

Rear Shock | Model X3 Xrs Black

706002255

$1,529.99

135a1

Spherical Bearing

715900337

$84.99

135a2

Ball Joint

706004078

$47.49

135a3

O-Ring Bushing

715900338

$12.63

135a4

Circlip

715900480

$11.49

135a5

Reducer

715900481

$27.99

135a6

Screw M6 X 35

715900521

$5.29

135a7

Réservoir Clamp

715900522

$38.99

135b

Red, Rear Spring | Model X3 Xrs Gold

706002236

$142.99

135b

Black, Rear Spring | Model X3 Xrs Black

706002564

$126.99

135c

Red, Rear Spring | Model X3 Xrs Gold

706002235

$169.49

135c

Black, Rear Spring | Model X3 Xrs Black

706002563

$153.49

135d

Rear Spring | Can-Am Red

706003090

$142.99

135d

Black Rear Spring | Deep Black

706003089

$126.99

135g

Protector

706202215

$11.99

135h

Washer M5

250200025

$0.74

135j

Hex Flange Screw M5 X 11

210251150

$2.11
