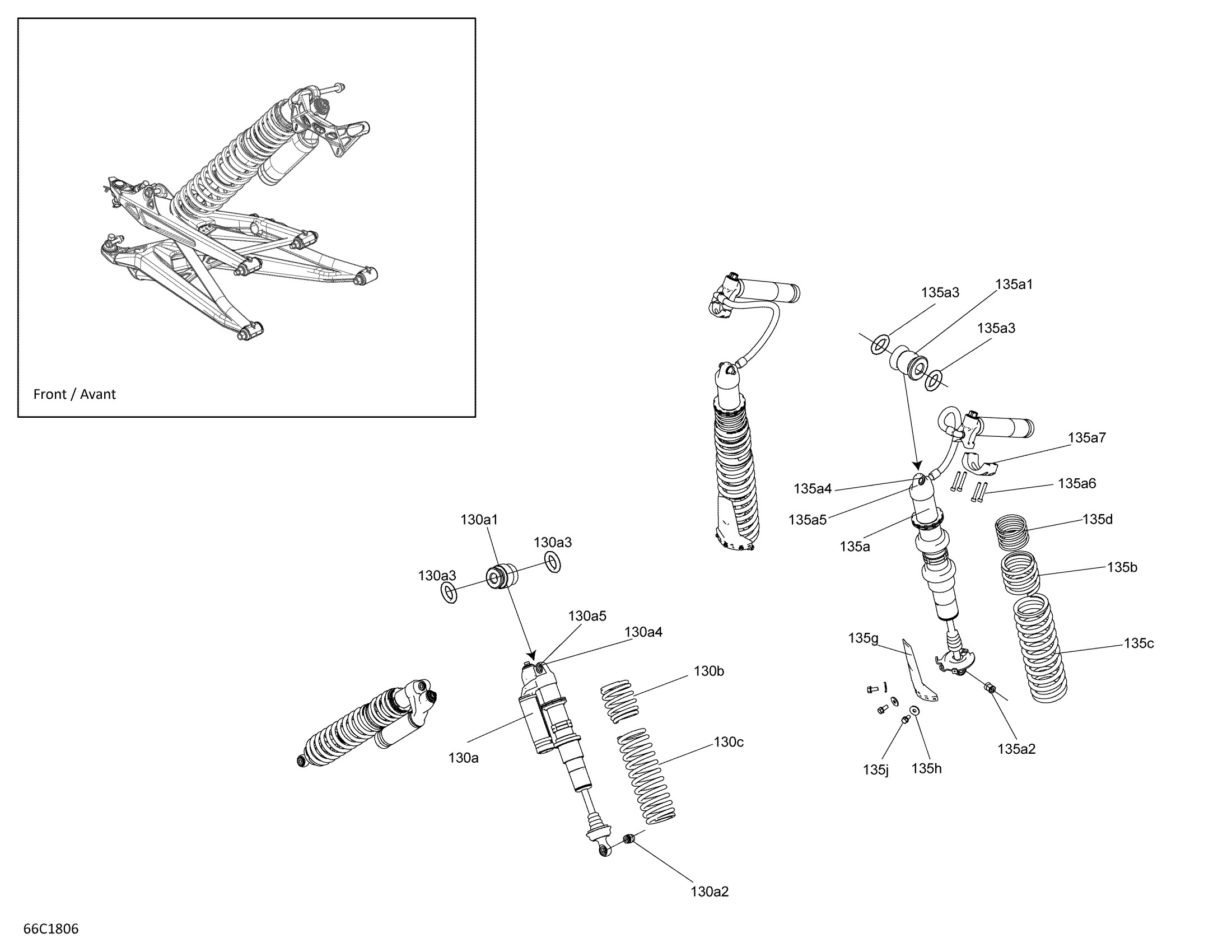

Can-Am 5- Maverick X3 Turbo R - STD_XDS DPS_XRS DPS, 2018 07- Shocks Maverick X3 - Turbo R - STD Diagram

Description

Price

130a

LH Front Shock | Includes 130a to 130a5

706203243

$919.99

130a

RH Front Shock | Includes 130a to 130a5

706203244

$889.99

130a1

Spherical Bearing

715900337

$84.99

130a2

Ball Joint

706004078

$47.49

130a3

O-Ring Bushing

715900338

$12.63

130a4

Circlip

715900480

$11.49

130a5

Reducer

715900481

$27.99

130b

Black Front Spring | Model X3

706203032

$83.49

130c

Black, Front Spring | Model X3

706202180

$126.99

135a

LH Rear Shock | Includes 135a to 135a5

706003059

$989.99

135a

RH Rear Shock | Includes 135a to 135a5

706003060

$999.99

135a1

Spherical Bearing

715900337

$84.99

135a2

Ball Joint

706004078

$47.49

135a3

O-Ring Bushing

715900338

$12.63

135a4

Circlip

715900480

$11.49

135a5

Reducer

715900481

$27.99

135b

Black, Rear Spring

706002763

$99.49

135c

Black, Rear Spring | Model X3

706002765

$158.99

135d

Black Rear Spring | Model X3

706002864

$81.49

135g

Protector

706202215

$11.99

135h

Washer M5

250200025

$0.74

135j

Hex Flange Screw M5 X 11

210251150

$2.11
