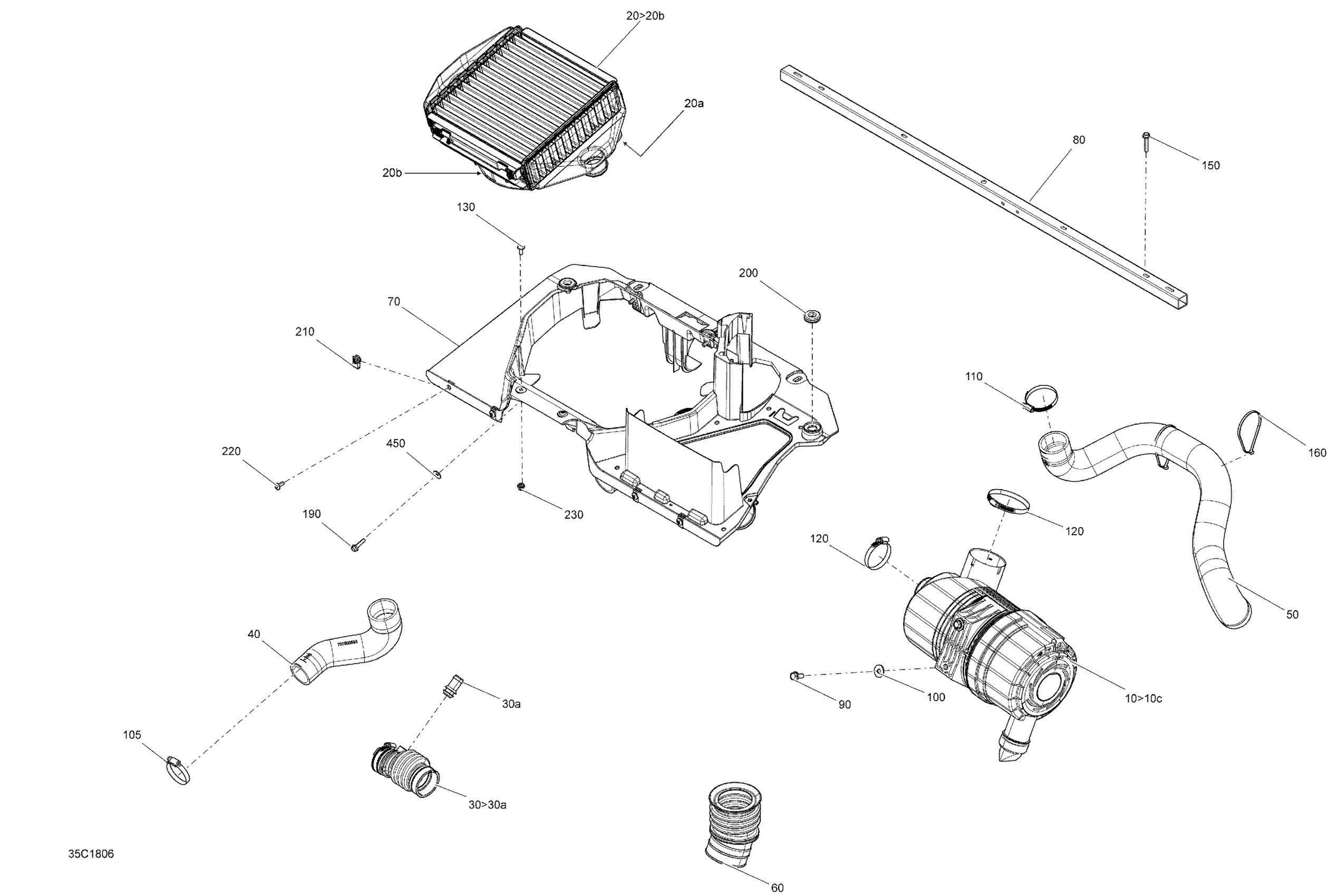

Can-Am 5- Maverick X3 Turbo R - STD_XDS DPS_XRS DPS, 2018 02- Air Intake Diagram

#

Description
Price

10>10c

Airbox | Includes
10 to 10c

707801032

$194.99

10a

Silencer-Air Cover | Includes 10a to 10a1

715900528

$93.99

10b

COVER O-RING - Call your local BRP dealership

715900355

Unavailable

10c

Air Filter

715900422

$52.99

20>20b

Intercooler Assembly | Includes 20 to 20b

707800782

$964.49

20a

Intercooler

715900490

$56.99

20b

Fan

715900525

$402.49

30>30a

Air Intake Turbo | Includes 30 to 30a

707800693

$38.99

30a

Breather Valve

273000234

$14.49

40

Air Intake Intercooler

707800683

$38.99

50

Air Intake Engine

707800685

$104.99

60

Air Intake Filter

707800687

$15.49

70

Radiator Support

707800691

$129.99

80

Square Tube

707801133

$54.99

90

Hex. Flange Screw M8 X 20

207682044

$1.15

100

Flat Washer 8 mm

234082410

$1.47

105

King Seal Clamp

293650270

$4.14

110

King Seal Clamp

293650271

$14.74

120

King Seal Clamp

293650270

$4.14

130

Torx Head Screw M6 X 16

250000717

$2.11

150

Hex. Flange Screw S.Grip M6 X 35

207563544

$2.11

190

Hex. Flange Screw M6 X 25

207562544

$1.69

200

Grommet

517303756

$4.09

210

Panel Nut M6 X 1.0

250100198

$2.11

220

Torx Truss Screw M6 X 16

250000721

$1.69

230

Threaded Insert M6 X 1.0

250100242

Unavailable

450

Flat Washer 6 mm

234062410

$0.77

488

Tie Wrap 368 mm

293750008

$1.04
