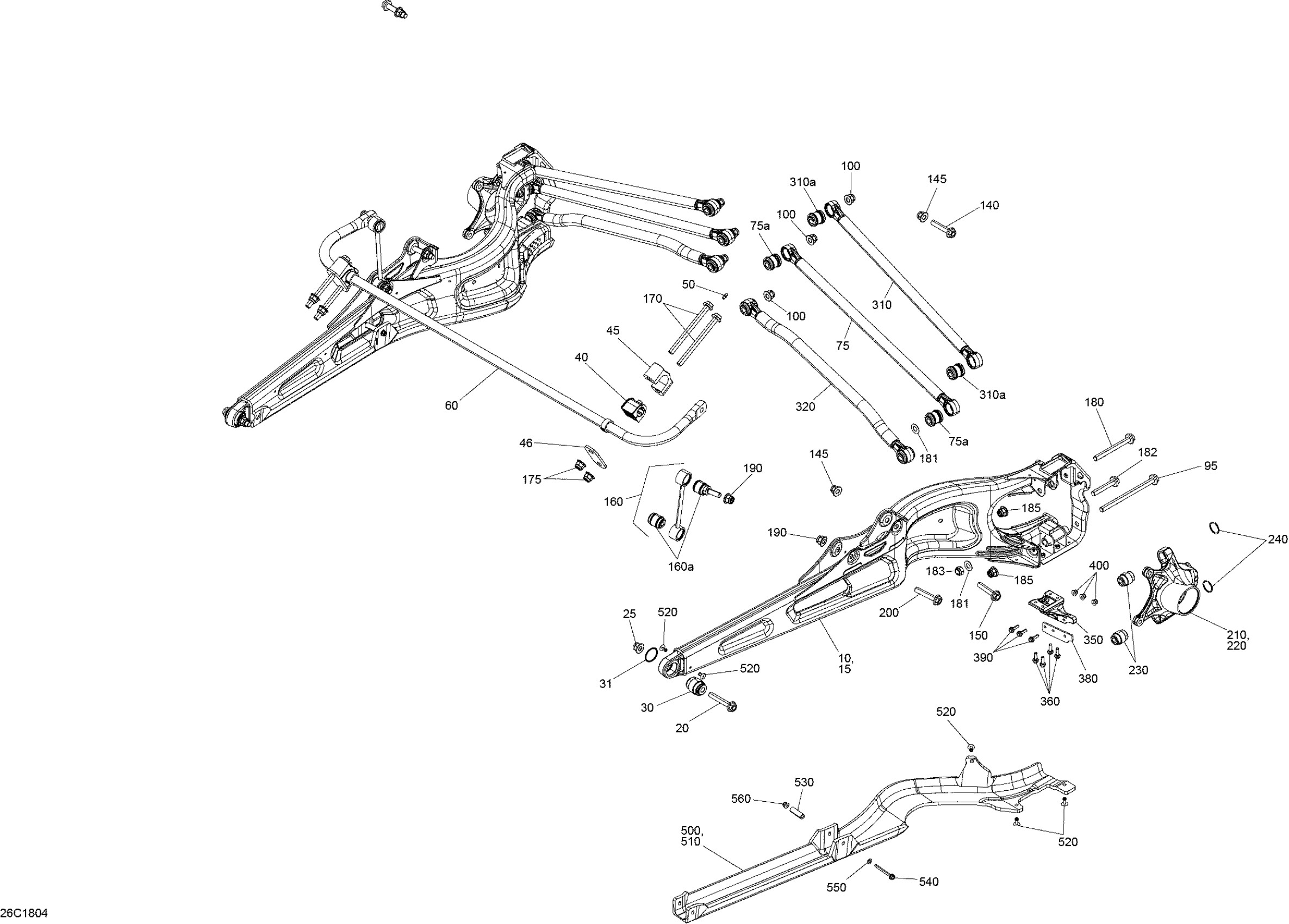

Can-Am 4- Maverick X3 Turbo - XRC, 2018 08- Rear Suspension - Package XRC Diagram

#

Description
Price

10

Blue Suspension Arm LH | Turbo R Model

706002955

$360.49

10

Blue, LH Suspension Arm | Turbo Model

706003138

$360.49

15

Blue Suspension Arm RH | Turbo R Model

706002956

$360.49

15

Blue, RH Rear Suspension Arm | Turbo Model

706003139

$360.49

20

Hex. Flange Screw M12 X 70

250000858

$3.80

25

Elastic Flange Nut M12

233221466

$2.89

30

Radial Joint

706001373

$52.99

31

Retaining Ring

293370093

$7.59

40

Stabilizer Bar Bushing

706004264

$3.61

45

Clamp

706002303

$17.05

46

Support Plate

706002357

$5.09

50

Grease Fitting

408200700

$3.49

60

Stabilizer Bar Ass'y

706002100

$98.49

75

Central Control Link | Includes 75 to 75a

706002307

$129.99

75

Central Control Link | Includes 75 to 75a

706002099

$119.99

75a

Radial Joint

706002135

$43.49

95

Screw Flange M12 X 175

250000862

$6.67

100

Elastic Flange Nut M12

233221466

$2.89

140

Flange Screw M12 X 60

250000857

$7.41

140

Hex. Flange Screw M12 X 70

250000858

$3.80

145

Elastic Flange Nut M12

233221466

$2.89

160

Rear Stabilizer Bar Link | Includes 160 to 160a

706003752

$93.99

160a

Radial Joint

706002135

$43.49

170

Screw Flange M12 X 135

250000892

$6.49

175

Elastic Flange Nut M12

233221466

$2.89

180

Screw Flange M12 X 115

250000860

$6.67

181

Hardened Washer

706200281

$2.85

182

Hex. Flange Screw M12 X 70

250000858

$3.80

183

Elastic Stop Nut M12

232521416

$1.69

185

Elastic Flange Nut M12

233221466

$2.89

190

Elastic Flange Nut M12

233221466

$2.89

200

Flange Screw M12 X 60

250000857

$7.41

210

LH Khuckle

706001960

$148.49

220

RH Khuckle

706001961

$148.49

230

Radial Joint

706002317

$43.49

240

Retaining Ring

293370118

$7.59

310

Upper Control Link | Includes 310 to 310a

706002751

$126.99

310

Upper Control Link | Includes 310 to 310a

706002136

$134.99

310a

Radial Joint

706002135

$43.49

320

Control Link

706002964

$134.99

320

Control Link | Includes 320 to 320a

706003140

$121.99

350

Deflector

706002905

$16.99

360

Hex. Flange Screw M6 X 20

207662044

$2.00

380

Wear Plate

706002851

$11.49

390

Hex. Flange Screw M6 X 20

207662044

$2.00

400

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

500

72'' LH Rear Arm Protector

706003209

$110.99

500

64" LH Rear Arm Protector

706003211

$110.99

510

72'' RH Rear Arm Protector

706003210

$110.99

510

64" RH Rear Arm Protector

706003212

$110.99

520

Pop Rivet 3/16”

293150108

$1.19

530

Spacer

705011168

$12.69

540

Hex. Flange Screw M6 X 60

250000778

$4.44

550

Flat Washer 6 mm

234061410

$1.36

560

Hex. Flange Elastic Nut M6

233261494

$1.58
