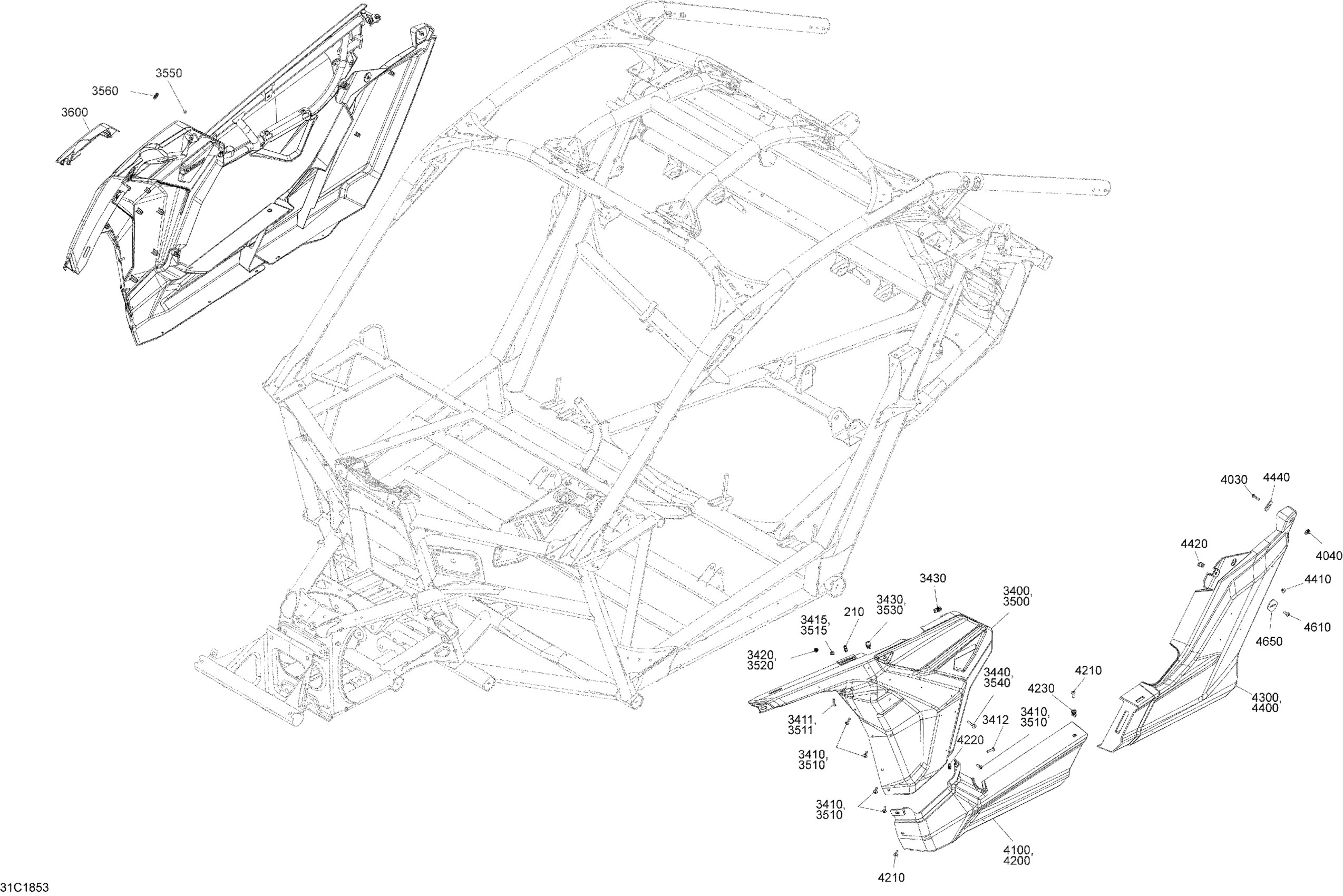

Can-Am 3- Maverick X3 Turbo - XMR, 2018 09- Body Side Part Maverick X3 Sunburst Yellow Models - Package XMR Diagram

Description

Price

210

Clip

705010721

$2.61

3400

Black, LH Front Lateral Panel Kit

715006594

$124.99

3410

Torx Screw M6 X 20

250000722

$1.68

3411

Torx Screw M6 X 20

250000712

$2.11

3412

Torx Truss Screw M6 X 25

250000807

$2.11

3415

Hex. Flange Elastic Nut M6

233261494

$1.58

3420

Threaded Insert M6 X 1.0

250100242

Unavailable

3430

Panel Nut M6 X 1.0

250100198

$2.11

3440

Torx Truss M6 X 50

250000868

$2.11

3500

RH Front Lateral Panel Kit

715004074

$104.99

3510

Torx Screw M6 X 20

250000722

$1.68

3511

Torx Screw M6 X 20

250000712

$2.11

3515

Hex. Flange Elastic Nut M6

233261494

$1.58

3520

Threaded Insert M6 X 1.0

250100242

Unavailable

3530

Panel Nut M6 X 1.0

250100198

$2.11

3540

Torx Truss M6 X 50

250000868

$2.11

3550

Hex. Flange Elastic Nut M6

233261494

$1.58

3560

Grommet

517303756

$4.09

3600

Lateral Cover

705017564

$43.99

4030

Torx Truss Screw M6 X 25

250000807

$2.11

4040

Panel Nut M6 X 1.0

250100198

$2.11

4100

LH Central Lateral Panel

705009513

$67.99

4200

Deep Black, RH Central Body Panel

705017555

$73.99

4210

Torx Screw M6 X 20

250000722

$1.68

4220

Panel Nut M6 X 1.0

250100198

$2.11

4230

Insert

705016606

$2.79

4300

LH Rear Lateral Panel

705010676

$119.99

4400

Deep Black, RH Rear Lateral Panel

705010677

$119.99

4410

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

4420

Panel Nut M6 X 1.0

250100198

$2.11

4440

Support Plate

705003841

$0.99

4610

Torx Screw M6 X 20

250000722

$1.68

4650

Support Plate

705003841

$0.99
