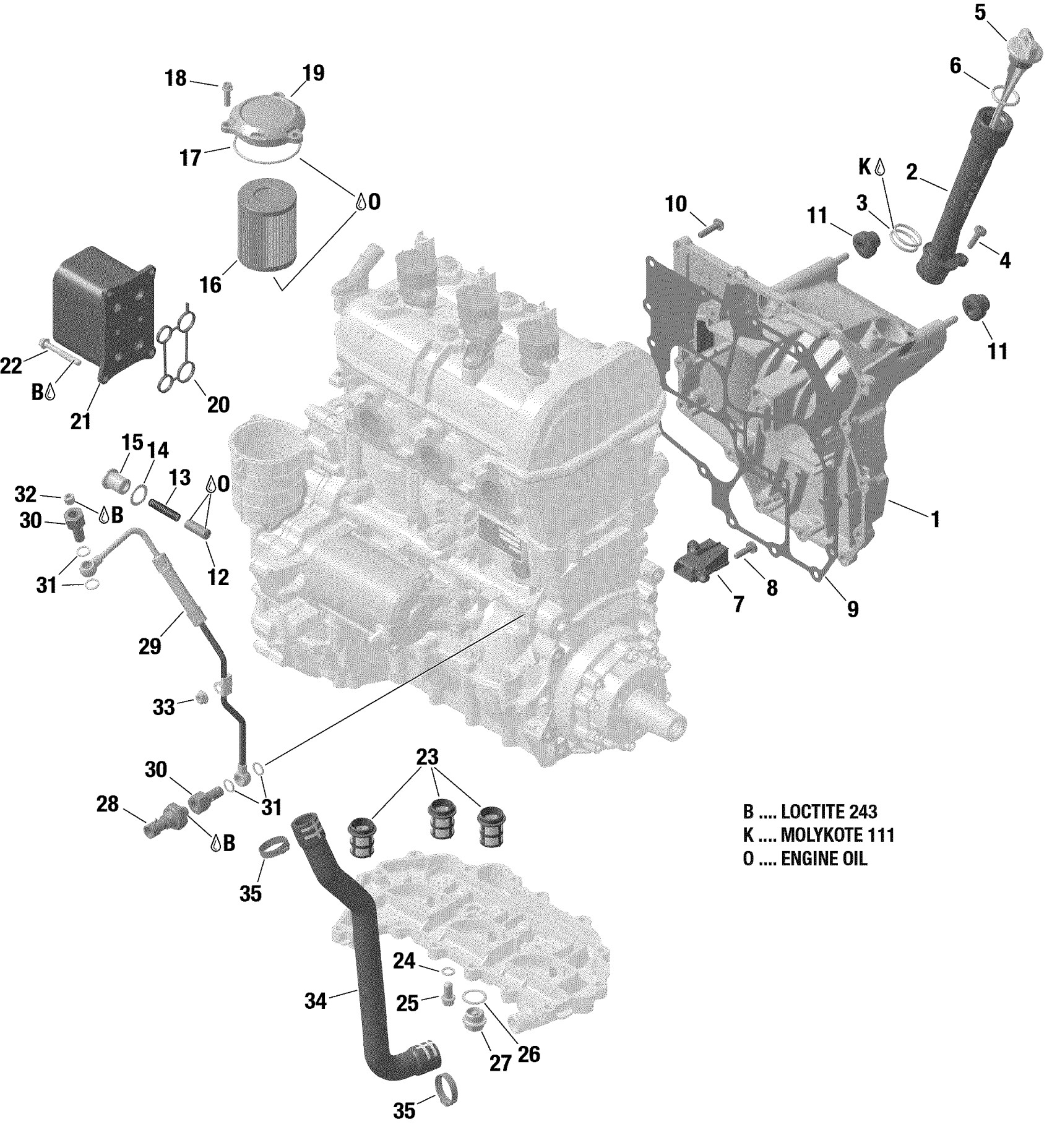

Can-Am 1- Maverick X3 900HO, 2018 01- Engine Lubrication 900 HO Diagram

#

Description
Price

1

Oil Sump Cover

420656708

$110.99

2

Oil Filler Tube

420656901

$9.02

3

O-Ring

420430440

$3.43

4

Torx Flange Screw M6 X 20

420441383

$5.40

5

Oil Dipstick

420856668

$13.24

6

O-Ring

420631640

$2.11

7

Oil Suction Pipe

420456260

$12.18

8

Torx Flange Screw M6 X 20

420441383

$5.40

9

Gasket

420431845

$20.49

10

Torx Flange Screw M6 X 25

420841548

$5.40

11

Rubber Grommet

420860150

$5.39

12

Pressure Regulating Piston

420256591

$14.22

13

Spring

420239445

$14.22

14

Gasket Ring

420430624

$1.89

15

Plug Screw

420441373

$13.76

16

Oil Filter

420956123

$13.77

17

O-Ring

420230923

$3.17

18

Torx Flange Screw M6 X 20

420440207

$3.06

19

Oil Filter cover

420612135

$11.63

20

Gasket

420431871

$11.60

21

Oil Water Heat Exchanger

420656689

$158.99

22

Torx Flange Screw M6 X 45

420440324

$0.98

23

Oil Sieve

420656680

$11.60

24

Sealing Ring

420950141

$2.00

25

Torx Flange Screw M8 X 16

420440852

$4.12

26

Crush Washer

420552280

$3.70

27

Drain Plug M18 X 1.5

420840278

$23.99

28

Oil Pressure Switch

420256915

$40.99

29

Not Available As Spare Part - Friction Washer

Unavailable

30

Not Available As Spare Part - Friction Washer

Unavailable

31

Not Available As Spare Part - Friction Washer

Unavailable

32

Not Available As Spare Part - Friction Washer

Unavailable

33

Not Available As Spare Part - Friction Washer

Unavailable

34

Not Available As Spare Part - Friction Washer

Unavailable

35

Not Available As Spare Part - Friction Washer

Unavailable
