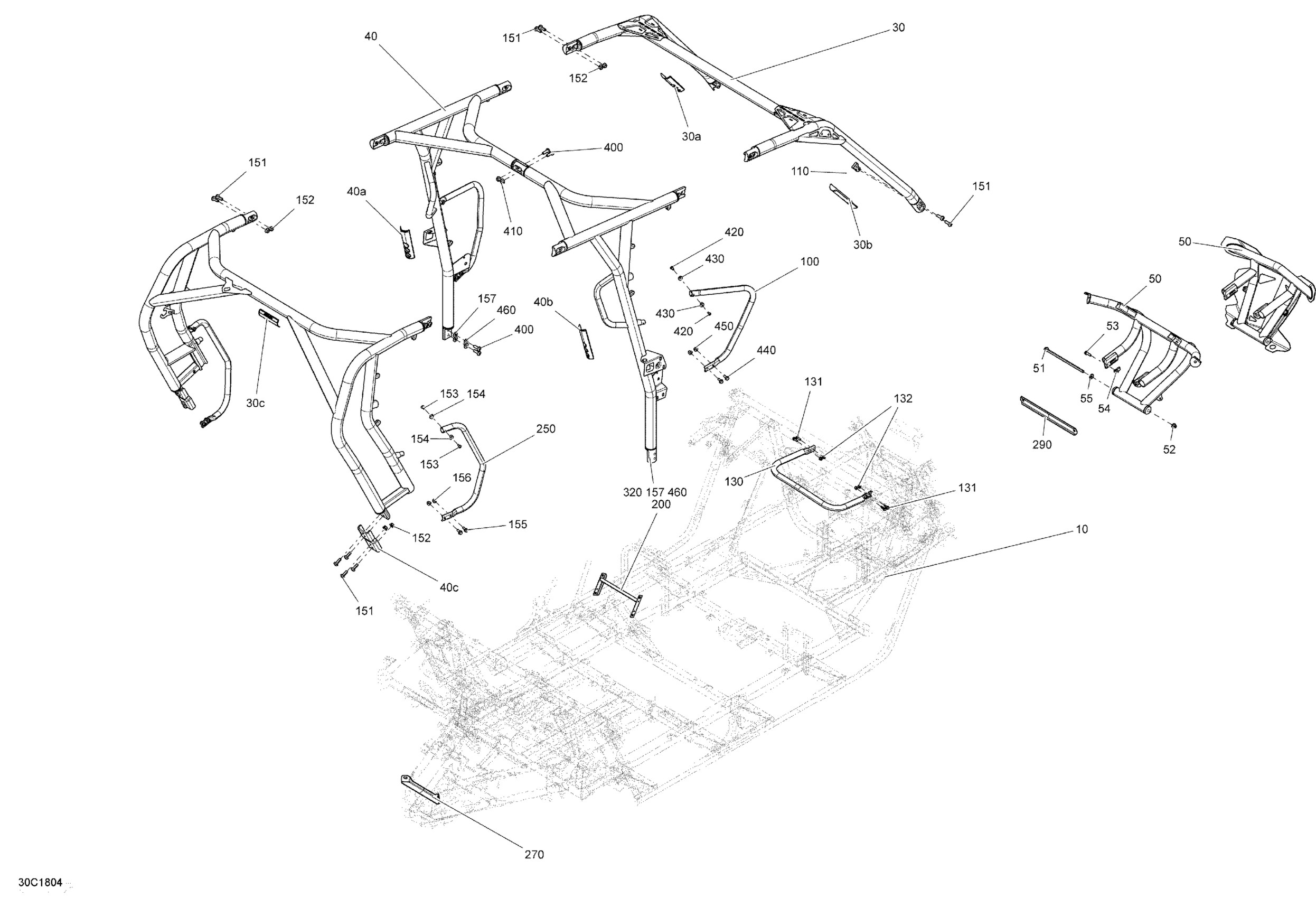

Can-Am 2- Maverick MAX, 2018 09- Frame Maverick MAX Diagram

#

Description
Price

10

Frame Kit

715003946

$2,969.99

30>30c

Red Cage Kit

715003905

$1,039.99

30>30c

YELLOW CAGE KIT - Call your local BRP dealership | Sunburst Yellow Cage

715004396

Unavailable

30a

Warning Label

704903492

Unavailable

30b

Threaded Insert M6 X 1.0

250100242

Unavailable

30c

Warning Label

704903492

Unavailable

40>40c

Red Central Cage Kit | Models with Red Cage

715003906

$779.99

40>40c

YELLOW CENTRAL CAGE KIT - Call your local BRP dealership | Sunburst Yellow Cage

715004395

Unavailable

40a

Warning Label

704903680

Unavailable

40b

Hex. Flange Nut M8

233181414

$1.15

40c

Rear Hand Mounting

705203514

$20.49

50

FRONT BUMPER BLACK - Call your local BRP dealership

715001645

Unavailable

51

Hex. Flange Screw

250000597

$12.70

52

Hex. Flange Elastic Nut M10

233201436

$2.11

53

SCREW-HEX.CAP DIN.933 S.GRIP - Call your local BRP dealership

207382544

Unavailable

54

Panel Nut M8 X 1.25

250100118

$2.09

55

Conical Spring Washer 10 mm

234201474

$1.69

100

RED RH FRONT SIDE PROTECTOR TUBE - Call your local BRP dealership | Models with Red Cage

705204069

Unavailable

100

YELLOW SIDE PROTECT - Call your local BRP dealership | Sunburst Yellow Cage

705206150

Unavailable

110

Binding Block

705203415

$18.49

120

RED LH FRONT SIDE PROTECTOR TUBE - Call your local BRP dealership | Models with Red Cage

705204068

Unavailable

120

YELLOW SIDE PROTECT - Call your local BRP dealership | Sunburst Yellow Cage

705206149

Unavailable

130

Black Handle

705203332

$132.49

131

Hex. Flange Screw M6 X 20

207662046

$2.11

132

Elastic Flange Nut M6 X 1.0

233261416

$2.11

151

Screw Pan M10 X 30

250000848

$1.90

152

Hex. Elastic Flange Nut , M10 X 1.5

233101464

$2.11

153

Torx Truss M6X14

250000789

$5.39

154

Offset Washer

705202223

$4.14

155

Hex. Flange Screw M8 X 20

207682044

$1.15

156

Hex. Flange Elastic Nut M8

233281414

$1.47

157

Washer

250200154

$3.70

200

Reinforcement Panel

705203717

$154.99

250

RED LH REAR SIDE PROTECTOR TUBE - Call your local BRP dealership | Models with Red Cage

705204064

Unavailable

250

YELLOW SIDE PROTECT - Call your local BRP dealership | Sunburst Yellow Cage

705206151

Unavailable

260

RED RH REAR SIDE PROTECTOR TUBE - Call your local BRP dealership | Models with Red Cage

705204065

Unavailable

260

YELLOW SIDE PROTECT - Call your local BRP dealership | Sunburst Yellow Cage

705206152

Unavailable

270

REINFORCEMENT - Call your local BRP dealership

705203695

Unavailable

290

FRONT SUSPENSION LINK - Call your local BRP dealership

705203454

$22.49

400

Screw Pan M10 X 30

250000848

$1.90

410

Hex. Elastic Flange Nut , M10 X 1.5

233101464

$2.11

420

Torx Truss M6X14

250000789

$5.39

430

Offset Washer

705202223

$4.14

440

Hex. Flange Screw M8 X 20

207682044

$1.15

450

Hex. Flange Elastic Nut M8

233281414

$1.47

460

Washer

250200154

$3.70
